Silica Sand Filter Ro Pressure Water Purifier Tank In Suspended Solids And Turbidity Reduction Dia 600-3000 Mm

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	NSF/ISO9001/SGS
Model Number:	108TPH

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	negotiable
Packaging Details:	carton
Delivery Time:	4-6 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100 sets per monthy

Contact Now

Detailed Product Description

Diameter:	600 -3000 Mm	Operate Pressure:	< 0.6 Mpa
Material Of Construction:	MS Mild Steel With Rubber Liner	Flow Velocity:	8-10 M/h
Inlet SS:	< 5mg/L	Air Wash Consumption:	18-25L/m2.S
Backwash:	Automatic	Backwash Duration:	10-15 Mintues
Forwardwash Duration:	10-15 Minutes	Air Wash:	By Roots Blower
High Light:	cartridge filter housing , industrial filter cartridges

Silica sand filter pressure tank for suspended solids and turbidity reduction Dia 600 mm -3000 mm

Introduction

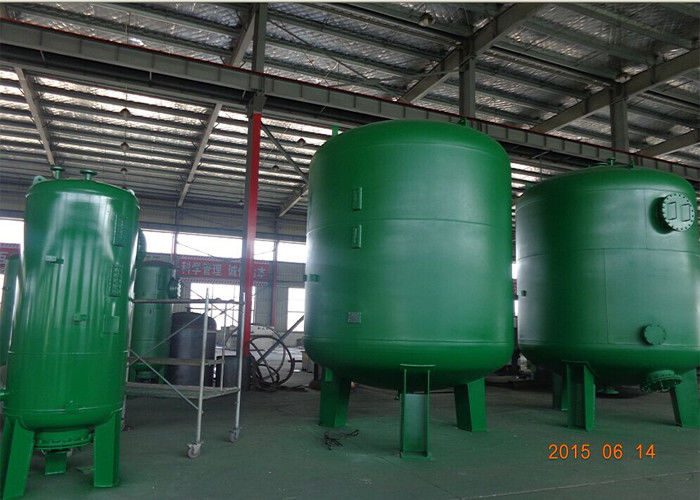

The Silica sand pressure filter vessel are made of mild steel; Anticorrosion treatment: internal is with rubber liner, or polyurea; external is exposy painting. It can be used for reduction of suspended solids, particles, sediment, turbidity, unpleasant tastes and odors, unwanted color, or the common contaminants from surface water. It's widely used in water purification, waste water treatment, demineralization water, pretreatment for RO/UF/NF, etc.

Technical advantage

Robust design, mild steel with internal rubber liner and anticorrosion surface treatment
Proven process and most tested forms of water treatment
Systems are robust with no moving parts inside the tanks
Built-in control, forward and backwash piping and connection port
Suitable with various filtration media
Easily cleaned and maintained
Resistant to fouling (clogging)

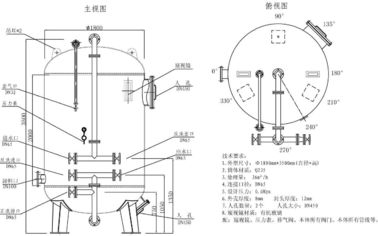

Specification:

Model	Capacity (t/h)	Φ mm	Φ1 mm	H mm	H1 mm	H2 mm	B mm	Inlet DN	BW outlet	FW outlet	Media (kg)
101B	3-7	600	500	2300	800	1200	500	40-50	80	40-50	270
201B	7-12	800	600	2450	900	1200	550	50-65	100	50-65	470
301B	12-20	1000	750	2500	900	1200	650	65-80	125	65-80	710
401B	20-28	1200	900	2650	950	1300	750	80-100	125	80-100	1070
501B	28-38	1400	1100	2800	1000	1350	850	80-125	150	80-125	1420
601B	38-50	1600	1300	2900	1000	1350	950	100-125	150	100-125	1860
701B	50-64	1800	1450	3200	1000	1400	1200	100-150	200	100-125	2350
801B	64-78	2000	1650	3300	1200	1600	1250	125-150	200	125-150	2910
901B	78-123	2500	2100	3600	1200	1600	1500	125-200	250	25-200	4540
902B	123-175	3000	2600	3850	1300	1700	1800	150-200	250	150-200	6540
