Model: | TS018S | Product Name: | Ring Roots Air Blower |
---|---|---|---|
Inlet/outlet: | DN25 - DN100 | Connect: | Coupling , Belt |
Material: | Cast Iron | Pressure Rating: | 19.6kpa To 98.0 Kpa ( 2000mm H2O To 10000mm H2O ) |
Cooling: | Water Cooling | ||
High Light: | three lobe roots blower,high pressure roots blower |
Ring type roots air blower as vacuum pumps for oxygen air convey in paper pulp 0.6 - 28 kgf/cm2
Goods Description

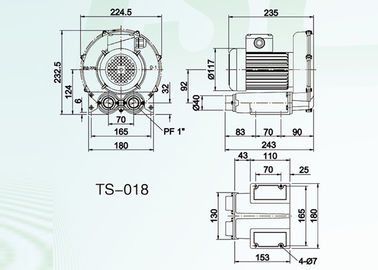

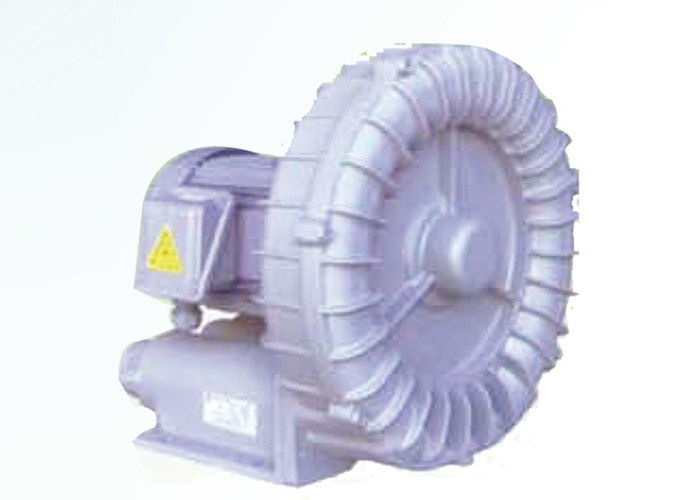

When leaf wheel of Ring Blower operate, it will create air flow, which will be enforced by the surrounding air, and eventually the total air body will be pressured and moved to the air outlet of the Ring Blower and then goes out. The Ring Blower features high Reliability. The blower has unique tolerance in high pressure. When circumstance suddenly changes, Ring Blower can still run safely and smoothly. Because of its simple design, it needs almost no maintenance. With fine-cooling outer bearing, the blower also has the following features: (1)High pressure. (2)The bearing operates with low temperature. (3)The lubrication gives extra durability in use. (4)Easy maintenance.
Features
Main technical data
Specifications sheet
Type | Phase | Freq. Hz | Power Kw | Voltage V | Current A | Pressure (max) mmAq | Vacuum (max) mmAq | Air Flow(max) m³/min | In/Out Let | Noise Level dB | Weight Kg |
TS-018S | 1 | 50/60 | 0.18 | 110/220 | 1.5 | 700/900 | 600/700 | 0.6 | PF 1" | 60/65 | 9.5 |
TS-037S | 1 | 50/60 | 0.37 | 110/220 | 2.5 | 1000/1200 | 900/1000 | 1.3 | PF 1 1/4" | 65/68 | 13 |
TS-075S | 1 | 50/60 | 0.74 | 110/220 | 5 | 1600/1500 | 1300/1400 | 2/2.5 | PF 1 1/2" | 67/72 | 17 |
TS-150S | 1 | 50/60 | 1.5 | 110/220 | 9 | 1800/1500 | 1700/1400 | 3.2/4.5 | PF 2" | 70/75 | 28 |
TS-018 | 3 | 50/60 | 0.18 | 220/380 | 0.9/1.1 | 700/900 | 600/700 | 0.6 | PF 1" | 60/65 | 9.5 |
TS-037 | 3 | 50/60 | 0.37 | 220/380 | 1.3/1.9 | 1000/1200 | 900/1000 | 1.3 | PF 1 1/4" | 65/68 | 13 |
TS-075 | 3 | 50/60 | 0.75 | 220/380 | 1.8/3 | 1600/1500 | 1300/1400 | 2/2.5 | PF 1 1/2" | 67/72 | 17 |
TS-150 | 3 | 50/60 | 1.5 | 220/380 | 3.5/5.5 | 1800/1500 | 1700/1400 | 3.2/4.5 | PF 2" | 70/75 | 26 |
TS-220 | 3 | 50/60 | 2.2 | 220/380 | 5/8 | 2000/1500 | 2000/1500 | 5/6 | PF 2" | 70/78 | 30 |
TS-370 | 3 | 50/60 | 3.7 | 220/380 | 7.5/13 | 2400/2100 | 2200/2200 | 7/7.5 | PF 2" | 77/80 | 45 |
TS-550 | 3 | 50/60 | 5.5 | 220/380 | 11.5/19 | 1800/1500 | 1800/1500 | 10/12 | PF 2 1/2" | 80/85 | 78 |
TS-750 | 3 | 50/60 | 7.5 | 220/380 | 15.5/26 | 2300/1900 | 2100/1900 | 10/12 | PF 2 1/2" | 80/85 | 85 |
TS-1100 | 3 | 50/60 | 11 | 220/380 | 21/35 | 1800/1500 | 2000/1500 | 19/24 | PF 4" | 90/105 | 175 |
TS-1500 | 3 | 50/60 | 15 | 220/380 | 28/47 | 2400/2000 | 2600/2000 | 19/24 | PF 4" | 90/105 | 182 |
TS-1900 | 3 | 50/60 | 19 | 220/380 | 35/58 | 3000/2500 | 3200/2500 | 19/24 | PF 4" | 90/105 | 190 |
Model selection
1. The air volume shown in above performance form, it's the suction volume under standard suction condition (Temp. 20 ℃, absolute pressure 1.0332 kg/c㎡, relative humidity 65%).
2. The convert formula between normal (for example: 0 ℃, 1.0332 kg/c㎡, ABS) and standard condition:
Qs=Qn * (yn/ys), y=0.465 * (P-0.378 ᵩ * Ps) / (273+t)
ᵩ=humidity (%) P=Pressure (mmHg)
Qn: air flow under normal condition N m³/min
Qs: air flow under standard condition (indicated in above performance table m³/min)
Y: air ration weight (kg/m³)
Ps: water vapor saturation pressure of the temperature (mmHg)
T: absolute temperature (273+t) ℃
3. Vice versa, an air flow under discharge condition can be converted to an air flow under standard condition:
Qs=Qd * (1.0332+Pd) * (273 +Ts) / (1.032*(273+Td))
Qd: air flow under discharge condition, m³/min
Ts: suction temperature
Td: discharge temperature
Pd: discharge pressure, kgf/㎡
4. Select blower type, diameter, rpm and shaft power based on performance table as required the air flow and discharge pressure.
5. Smaller size for economic view, and larger size for lower noise level & stabler performance for a long view.
Applications:
Performance curve
Applications:
1. Air blowers / exhausters
2. Corrosive / Toxic gases
3. Non corrosive gases
4. Vacuum pumps
5. High pressure bossters
6. Vapour boosters
Competitive advantage
All our tri-lobe roots blower are built and checked annually following the strictest adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.
