    Product Name: Membrane Chamber Filter Press Press Plate Size: 920 X 920 Mm
    Filter Pressure: 1.6 Mpa Motor Power: 4.75 Kw
    Operation: Automatic Temperature (Max): 100 ℃
    Filter Area: 4 ㎡ - 14 ㎡ Nos Of Press Plate: 10 - 60 Pieces
    Chamber Volume: 150 - 500 Liters
    High Light:

    fully automatic filter press


    filter press machine

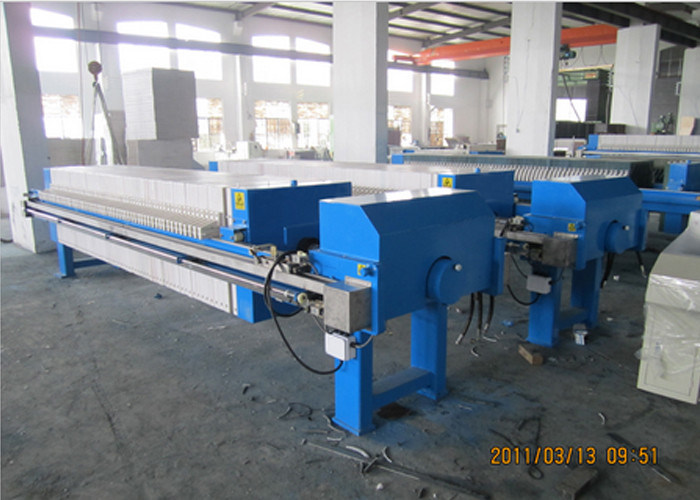

    Automatic Chamber type filter press in food & beverage waste water treatment Plate size 920mm

    The chamber filter press (also known as Plate and Frame filter press), which has many benefits. In particular, one is that for such a large piece of machinery it has few parts to it. The different parts to a filter press include the steel skeleton, the plates, the hydraulic pump and cylinder, the plumbing which includes the manifold and center feed pipe, and the filter cloths. The simplicity of the filter press means there is little maintenance work that is needed to be done to the press. The filter press skeleton and filter press plates need zero repairs and as long as the press is operated properly they will last a lifetime.


    A plate filter press comprises a set of vertical, juxtaposed recessed plates, presses against each other by hydraulic jacks

    at one end of the set. The pressure applied to the joint face of each filtering plate must withstand the chamber internal

    pressure developed by the sludge pumping system.
    This vertical plate layout forms watertight filtration chambers allowing easy mechanisation for the discharge of cakes.

    Filter chlotes finely or tightly meshed are applied to the two groowed surfaces in these plates. Orifices feed the sludge to

    befiltered under pressure in the filtration chamber. They are usually placed in the center of the plates allowing a proper

    distribution of flow right pressureand better drainage of sludge within the chamber.Solid sludge gradually accumulate in

    the filtration chamber until the final compacted cake is formed. The filtrate is collected at the back of the filtration

    support and carried away by internal ducts.

    Filtration cycle

    The filter press is an intermittent dewatering process. Each press operation includes the following steps:

        Closing of the press: as the filter is completely empty, the moving head activated by the jacks calmps the plates.
        Closing pressure is self regulated through filtration
        Filling: During this short phase chamber are filled with sludge for filtration. Filling time depends on the flow of the
        feed pump. For sludge having good filterability it is best to fill the filter very quickly so as to avoid the formation
        of a cake in the first chamber before the last ones have been filled.
        Filtration: Once the chamber have been filled continuous arrival of sludge to be dewatered provokes a rise in
        pressure due to the formation of an increasingly thick layer of filter sludge on the cloths. This filtration phase can
        be stopped manually, by a timer or more convenientely by a filtrate flow indicator which issues a stop alarm when
        the end of filtration rate has been reached. When the filtration pump has stopped, the filtrate circuits and central
        duct, which is still filled with liquid sludge, are purged by compressed air.
        Filter opening: The moving head is drawn back to disengage the first filtration chamber. The cake falls has a result
        of his own weight. A mechanised system pulles out the plates one by one. The speed of plate separation can be
        adjusted to account to the cake texture.
        Washing: Whasing of clothes should be carried out every 15-30 processing oprations. For mid- or large units this
        take place on press using water sprayers at very high pressure (80-100 bar). Whasing is sincronized with separation
        of plates.

    Flow chart of squeezing press filtering and washing - Free flow type

    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 0

    Flow chart of filtering, washing and crushing flow chart - Under current flow type

    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 1

    Filtration capacity

    The production capacity of a filter press is somewhere between 1.5 and 10 kg of solid per m2 of filtering surface. For
    every the filter press model the chamber volume and the filtering surface depend on the number of plates in the filer.

    In practical terms pressing times are less then four hours.
    Filtration time depends on:

    • cake thikness
    • sludge concentration
    • specific resistance
    • compressibility coefficient.

    One of the advantages of the filer press is that it can accept sludge with average filterability. It is always advantageous to

    optimally thicken sludge before filter press operations. Although sludge presenting a high filterability enables better production

    capacities, a filter press still accepts sludge with low conditioning precision. This tolerance means that the device offers

    greater owerall operational safety.

    Data sheet






    of filter



    of plate



    in filter




    Nos of

    filter plate








    XZG10/800 10 150 65/60/30 <0.8 <70 5/4 4.75 2720x1240x1200 2450
    XZG10/800 20 300 65/60/30 <0.8 <70 10/9 4.75 3355x1240x1200 2800
    XZG10/800 30 450 65/60/30 <0.8 <70 15/14 4.75 3990x1240x1200 3200
    XZG10/800 40 600 65/60/30 <0.8 <70 20/19 4.75 4625x1240x1200 3600
    XZG10/800 50 750 65/60/30 <0.8 <70 25/24 4.75 5260x1240x1200 4120
    XZG10/800 60 900 65/60/30 <0.8 <70 30/29 4.75 5895x1240x1200 4600


    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 2Pipe line diagraphm

    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 3


    The filter press is suitable for almost all types of sludge:

        Hydrophilic organic sludge: inorganic conditioning is often recommended to enable satisfactory cake release due to minimal
        aderence to filter cloth.
        Hydrophilic inorganic sludge: the filer press generally requires the addition of lime only.
        Hydrophobic inorganic sludge: it is very dense and ideal for the filter press. It is dewatered without any preliminary conditioning.
        Oily sludge: the filter press can be used to treat sludge containing light oils, the presence of grease can sometimes impair the
        smooth running of the filter; clothes have to be degreased at frequent intervals.


    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 4

    Recessed Chamber Filter Press For Food & Beverage Waste Water Treatment 5

    Competitive advantage

    Quality - Rapid filtration, highly automated, stable performance, easy operation and equipped high temperature, high pressure, anti-corrosion, reliably sealing filter plates. We strictly execute ISO9001 quality control system, striving to offer our client the products with advanced technology and best quality to achieve the best filtration.
    Service  We always have the faith that customer is highest. Before selling out products, we offering technology advice, solution design and give guidance on installation and commissioning. We always follow the using status of our machine, striving to offer all-round premium service.
    Technology  We constantly adopt advanced technology for filter press to make the products apply with the most innovative science & technology. We also can make custom designed filter press, filter plates and accessories. To meet the market demand, we brought novel & leading technology filter presses together with German designers.
