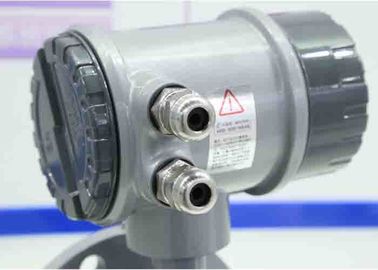

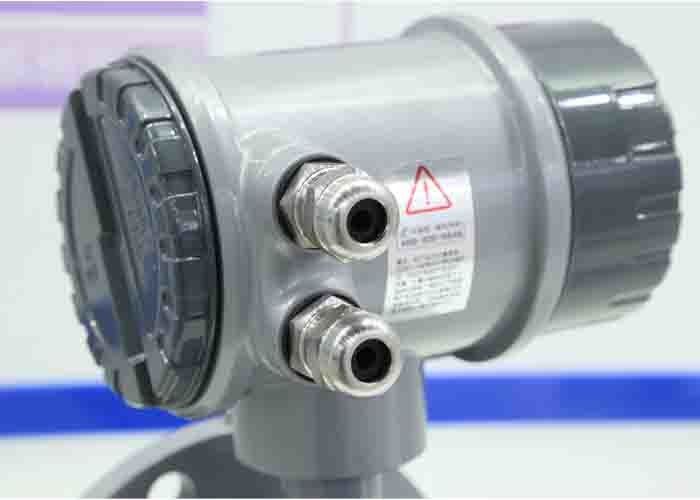

Pulse Output Wastewater Flow Meter 1-15 M / S Flow Velocity Range Rs485 Standard

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Model Number:	EMF100-8

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	negotiable
Packaging Details:	carton
Delivery Time:	3 weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	Wastewater Flow Transmitter	Material Of Electrode:	Hastelloy-C, Ti, Ta, 316L
Liner Material:	Hard Rubber, PTFE	Flow Velocity Range:	1-15 M/s
Pressure Rating:	PN16, PN25, PN40 Mpa	Accuracy:	0.5% R
Pipe Dia.:	DN25-DN300	Connect Port:	Flange
Enclosure Protection:	IP65	Power Supply:	100-240 VAC / 18-36 VDC
High Light:	water flow meter , ultrasonic water meter

magnetic flow meter for wastewater flowmeter, Communication: Modbus RS485, pulse output

Application

Agricultural, irrigation, boiler feedwater, clean room, clean water, concrete , coolant, HVAC / R system monitoring, residential water monitoring, utilities, waste water, grey water

Grounding

From flow meter housing terminal G to grounding by minimal 1.6mm2 copper cable, resistivity < 10 Ω.

Key Features

Suitable to meter for wide range of conductive liquid media
Virtually no pressure loss
No Moving Parts
Flanges port connection
RS485 Standard
Suitable for Pipes diameter p to 2000 mm
Large meter ratio
High Accuracy
4 to 20 mA / Frequency / Pulse output

Technical data

Product name	Electromagnetic flowmeter
Product type	Local\|compact display	Remote display	Signal converter
Model	IYF-E	IYF-F	IRT
Pipe Diameter (mm)	DN10-DN2000
Power supply	100-240 VAC / 18-36 VDC
Accuracy	+ 0.5%	+ 0.5%	+ 0.5%
Power consumption	<6w	<6w	<6w
Enclosure rating	IP65	IP68	IP65
Liquid temperature	-25-120℃	-25-120℃	-25-120℃
Ambient temperature	-25-50℃	-25-50℃	-25-50℃
Relative humidity	10-90%	10-90%	10-90%
Meter ratio	1:100	1:100	1:100
Flow direction	Bi-direction flow	Bi-direction flow	Bi-direction flow
Communication	RS485 / Bacnet	RS485 / Bacnet	RS485 / Bacnet
Signal Output	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency

Accuracy

Pipe Dia (mm)	Velocity (m/s)	Accuracy
3-20	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout
25-600	0.1-0.3	+ 0.25% FS
	0.3-1	+ 0.5% Readout
	1-15	+ 0.3% Readout
700-3000	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout

Selection guide

I	Model
	YF	Electromagnetic flowmeter
	TF	Turbine
	VF	Votex
	LX	Vane wheel
	T	Ultrasonic
		E/F display mode	E: compact/local display, F: remote display
			Pipe Dia	Type (mm)
			xxxx	15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 400, 500, 600, 800, 1000
			Code	Accuracy
			1	+ 0.5% FS
			2	+ 1.0% FS
			3	+ 0.2% FS
				Code	Type
				N	Converter: 12 / 24 VDC, pulse output
				A	Transmitter: 24VDC, 4-20mA outpt
				B	Intelligent, Lion battery, no local display
				G	Smart, local display, 4-20mA output
				C1	Smart, local display, RS485
				C2	Smart, local display, HART
					Code	Type
					S	Carbon steel housing
					L	Stainless steel housing
					G	High pressure housing
					HL	316L electrode
					HTi	Titanium electrode
					HTa	Tantlum electrode
					HC	Hastelloy-C electrode
					L1	Liquid media
					L2	Gas media
					P	Pressure compensation
					T	Temperature compensation
					PT	Pressure&Temp. Compensation
					F	PTFE liner
					X	Rubber liner
Sample: IYF-E-0100-1-C1-S-HL-L1-F, Magmeter, local display, Dia: 100mm, + 0.5%FS, carbon steel housing, smart, 4-20mA outpt, RS485, 316L electrodes, liquid media meter, PTFE liner

Pipe Diameter, flow volume and product dimension

Dia	Flow volume (m3/h)			Product dimension (mm)
(mm)	Normal	Min	Max	L	D	H	H1
15	1.5	0.06	9.5	150	95	272	254
20	2.5	0.11	16.9		105	277	254
25	3.5	0.18	26.5		115	283	254
32	6	0.29	43.6		140	297	270
40	10	0.45	67.8		150	307	280
50	15	0.71	106.0	200	165	318	294
65	25	1.19	179.1		185	337	313
80	40	1.81	271.4		200	352	326
100	60	2.83	424.1	250	220	371	344
125	100	4.42	665	250	250	401	372
150	135	6.36	954	300	285	431	403
200	250	11.3	1696	350	340	486	460
250	375	17.66	2650	400	395	547	511
300	540	25.43	3817	450	445	597	565
350	735	34.62	5195	450	505	657	620
400	960	45.22	6785	500	565	717	675
450	1200	57.23	8588	550	615	757	727
500	1500	70	10602	600	670	817	782
600	2160	100	15268	600	780	917	782
700	2950	138	20781	700	895	1027	1068
800	3850	180	27100	800	1015	1137	1157

Industrial applications

Chemical	Food & beverage	Paper mill
Metallurgy	Environment protection	Hydraulic
Mining	Stainless	Petroleum
Pharmacy	Air conditioner	Effluent treatment plant
Seawater desalination	Pharmacy	Water treatment
