Product Name: | Multi Jet Dry Dial Water Meter | Port Size: | DN15 - DN50 |
---|---|---|---|
Port Connect: | Thread Or Flange | Type: | Dry Dial |
Accuracy: | + / - 2% @ Cold Water | Operation Pressure: | 150 Psi / 1.0 Mpa |
Standard: | ISO4064 , GBT778 , Q/320700JR05-2003 | Function: | Totalizer , Flow Rate |
Material: | Grey Iron Or Brass | ||
High Light: | multijet water meter,Dry Dial water meter |

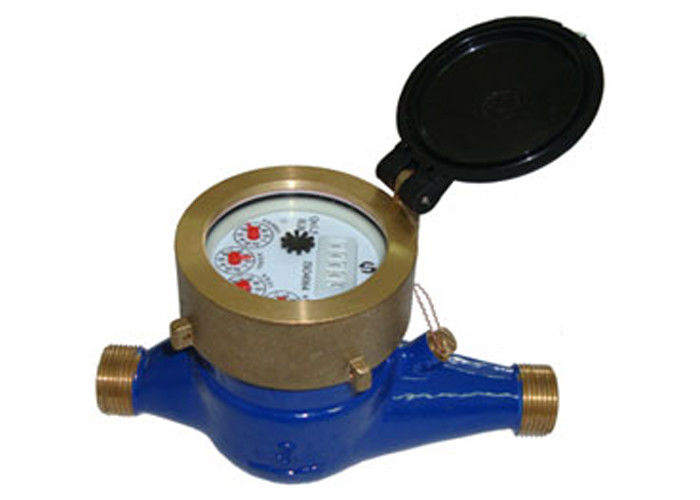

Propeller type Multi jet water meter with dry dial fully sealed runner for cold water DN15
The Multi-jet water meter is a propeller type, fully sealed dry dial, for the measurement of total volume of cold or hot water. Suitable for residential use.
Feature:
Note:
Working condition:
Maximum Permissible Error:
(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.
Flow error curve
Data sheet

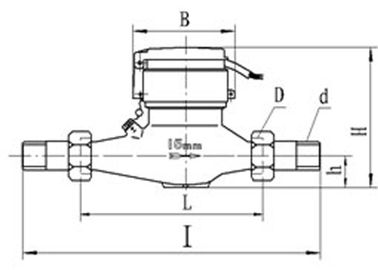

Description | Unit | Hydraulic data and dimensions | ||||||
Nominal size | mm | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | |
inch | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
Overload flow rate (Qs) | m3/h | 3 | 5 | 7 | 12 | 20 | 30 | |
Permeanent flow rate (Qp) | m3/h | 1.5 | 2.5 | 3.5 | 6 | 10 | 15 | |
Transitional flow rate (Qt) | l/h | 120 | 200 | 280 | 480 | 800 | 3000 | |
Minimum flow rate (Qmin) | l/h | 30 | 50 | 70 | 120 | 200 | 450 | |
Min reading | l | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max reading | l | 99999 | 99999 | 99999 | 99999 | 999999 | 999999 | |
Max work pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
Pressure difference at Qs | Mpa | <0.08 | <0.08 | <0.08 | <0.08 | <0.08 | <0.08 | |
L | mm | 145 | 190 | 260 | 260 | 245 | 300 | |
165 | 300 | |||||||
I | mm | 225 | 292 | 380 | 384 | 373 | 428 | |
245 | 428 | |||||||
H | mm | 123 | 123 | 128 | 128 | 182 | 182 | |
h | mm | 27 | 27 | 29 | 29 | 65 | 65 | |
B | mm | 90 | 90 | 90 | 90 | 130 | 130 | |
weight | with connections | kg | 1.13 | 1.22 | 1.72 | 2.05 | 3.3 | 5.21 |
3.5 | ||||||||
without connections | 1.30 | 1.49 | 2.15 | 2.77 | 4.25 | 6.50 | ||
4.45 |
Flow curve.
Competitive Advantage:
Production line
Base water meter
