All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS/QS |
Model Number: | RD80PP |
Minimum Order Quantity: | 5 |
---|---|
Price: | Negotiable |
Packaging Details: | carton |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 5000 pieces per month |

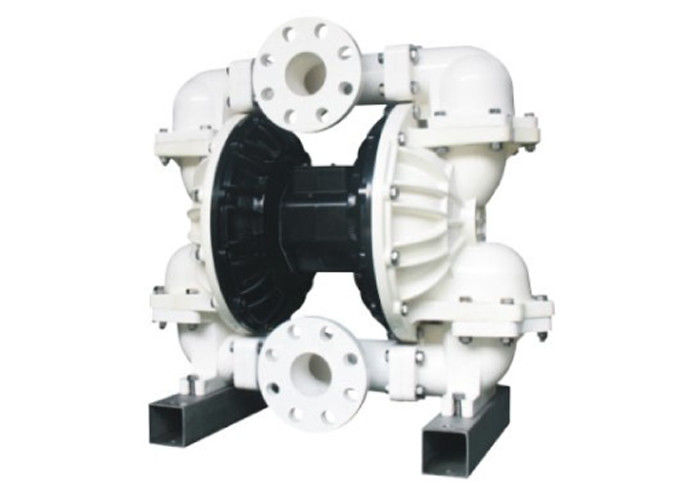

Product Name: | Pneumatic Diaphragm Pump RD80PP | Pressure: | 100psi / 6.89bar / 0. 7Mpa |
---|---|---|---|
Max Flow Rate: | 265gpm / 1041L/min | Max Suction Head: | 5m |
Max Grain: | 10mm | Air Inlet/outlet Port Size: | 3/4" FNPT |
Fluid Inlet/outlet Port Size: | 3" FNPT , BSP | Material Of Construction: | Polypropylene , PP |
High Light: | air driven diaphragm pump,air operated double diaphragm pump |
Polypropylene PP pneumatic diaphragm pump for downstream refineries 265gpm 1041L/min suction height 5m
Specification
Max.working Pressure | 100psi ( 0.7Mpa , 7bar ) |
Max.flow Rate | 265 gpm ( 1041 lpm ) |
Max.reciprocating Speed | 135cpm |
Max.suction Height | 5m |
Max.permitted Grain | 10mm |
Max air Consumption | 325scfm ( 9.1m³/min ) |
Air Inlet Size | 3/4in.npt ( f ) |
Air Outlet Size | 3/4in.npt (f) |
Fluid Inlet Size | 3 in.npt(f) |
Fluid Outlet Size | 3 in.npt(f) |
Weight | PP pump 66.0kg |
Descriptions
A single piece polypropylene center section for increased reliability and chemical compatibility, plus high-reliability modular air valve. The overmolded frame for improved reliability and will help to eliminate fluid leakage and new generation of diaphragm design that increases flow with flow rates up to 265 gpm (1004 lpm) - making it one of the most efficient pumps on the market.
Product drawing:
Applications:
Waste water treatment, sludge, screening |
Effluent treatment plant |
Pharmaceutical feeds, transfer |
Automotive wash, lube, oil |
Ceramics mix & cast, glaze |
Chemical injection, process |
Pulp & paper batching, bleaching |
Construction coating, dewatering |
Food processing transfer, packaging |
Marine bilge, cleaning |
Mining utility, dewatering |
Oil & gas transfer, clean up |
Comptetitve advantage
The air-driven double diaphragm transfer pumps. No electrical components are required because the pumps are
air-driven. RD series pumps are run-dry safe and self-priming. The pump capacity can be controlled by changing
the pressure in the air supply. The air control is designed for oilfree operation. The RD series pumps are ideally
suited for the transport of liquid chemicals. It transports media at up 6,700 l/h and up to a discharge lift of 70 m.
As the pump capacity is highly dependent on the back pressure, the performance curve must always be observed.
At the sametime, the differential pressure between the hydraulic and pneumatic sides should not exceed 2 bar.
Higher values reduce the service life of the pump. When selecting pumps, check the material compatibility.
In addition, consider the density, viscosity and temperature of the transported medium.
