All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | BWC6TPH |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiation |
Packaging Details: | Container or wooden pallet |
Delivery Time: | 40 working days after receipt of payment |
Payment Terms: | T/T or LC |
Supply Ability: | 20pcs per month |
Product Name: | Mobile Containerized Brackish RO Water Treatment | Production Capacity: | 36000GPD |
---|---|---|---|
Feed TDS: | 1000-10000ppm | Operation Pressure: | 1.5-4Mpa |
Recovery Rate: | 75% | Permeate TDS: | <500 Ppm |
Electric Control: | PLC | Type: | Container |
High Light: | reverse osmosis equipment,ro water treatment |

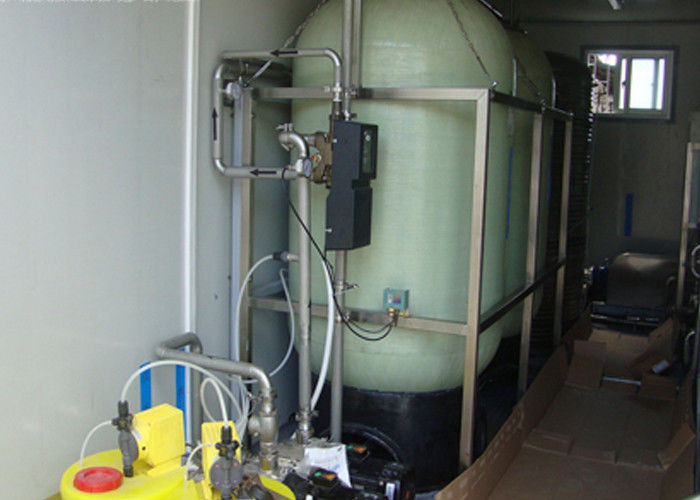

Containerized Brackish RO Water treatment plant for drinking 6m3/hour
1. Specifications
Operation parameters |
Feed TDS |
1000-10000 ppm |
Feed temperature |
2-40℃ |
|
Feed PH |
3-11 |
|
Operation pressure |
1.5-4 Mpa |
|
Desalination rate |
>98% |
|
Permeate water salinaty |
<500 mg/L |
|
Capacity |
150 m3 / day, 36000GPD |
|
Electricity |
380V/50HZ/3PH, other volt upon client |
|
Tonnage water consumption |
2 Kwh/T |
|
Control |
PLC and touch screen |
|
Configuration |
Containerized |
|
Instrument |
Flow meter, TDS, pressure gauge |
|
Standard Features |
Powder coated carbon steel frame |
|
Heavy duty 5 micron cartridge prefilter |
||
Chemical dosing |
||
Anti corrosion resistant stainless steel pumps |
||
PLC based controller panel |
||
Liquid filled 316L pressure gauges |
||
Product and reject flow meters |
||
Spriral wound RO membranes |
||
FRP membrane pressure housings up to 1200 psi |
||
Low and high pressure switch |
||
Permeate TDS monitor |
||
Stainless steel high pressure piping |
||
Optional |
PH/ORP controller |
|
Clean-in-place CIP skid |
||
Multimedia prefilter |
||
Activated carbon prefilter |
||
Ozonation / UV sterilization systems |
2. Description:
Reverse osmosis systems are used to reject bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 daltons from tap and brackish water. It is also capable of purifying water and remove salts and other impurities. Our largest tap and brackish water units, industrial series, comes standard with media pre-filters, chemical dosing, and antiscalant. These systems can be customized to fit individual customer and water application needs. The capacity of 200,000 to 900,000 GPD.
Our largest tap and brackish water units, industrial series, can come standard with media pre-filters, chemical dosing, and antiscalant. These systems are usually customized to fit individual customer and water application needs, and is considered to be one of the most compact industrial reverse osmosis systems in the market, it also features state of the art energy saving membranes.
When we design the industrial series reverse osmosis plants, we consider robust construction, user-friendly design, environmentally conservative operations, and long term reliability.
Economical and efficient, the industrial reverse osmosis equipment incorporate the latest in RO technology to remove dissolved minerals, particles, organics, solids and other contaminants from water. Reverse Osmosis uses RO membranes as its core separation technology to reject these contaminants. Pure Aqua use the most reputable membranes manufacturers such as Dow Filmtec and Toray.
Container size | 20ft | 40ft | |||||
Output capacity (m3/hr) | 6 | 10 | 15 | 25 | 20 | 25 | 50 |
Operation pressure (Mpa) | 1.5-4 | ||||||
Feed water pressure (Mpa) | 0.1-0.5 | ||||||
Recovery rate | 60-75% | ||||||
Power consumption (Kwh/T) | Below 2 Kwh/T |
3. Applications:
Potable water |
Ice manufacturing |
Cooling tower |
Plating operations |
Rinse water |
Power plants |
Electronics |
Beverage production |
Metal finishing |
Mining industry |
Bottled water |
Safe drinking water |
4. Competitive Advantage:
Economical and efficient, the industrial reverse osmosis equipment incorporate the latest in RO technology to remove dissolved minerals, particles, organics, solids and other contaminants from water. Reverse Osmosis uses RO membranes as its core separation technology to reject these contaminants. Pure Aqua use the most reputable membranes manufacturers such as Dow Filmtec and Toray.
