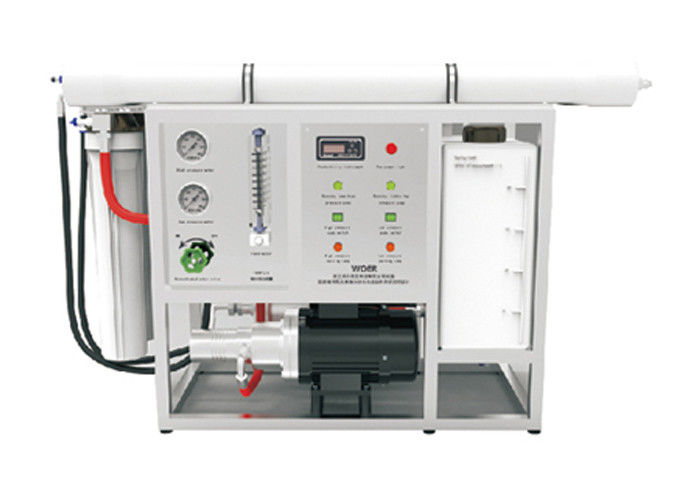

Horizontal Seawater desalination equipment 15000GPD / Reverse Osmosis Plant

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	SWRO15K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiation
Packaging Details:	Container or wooden pallet
Delivery Time:	60 working days after receipt of payment
Payment Terms:	T/T or LC, D/A
Supply Ability:	5 pcs per month

Contact Now

Detailed Product Description

Product Name:	Seawater RO Desalination Plant	Machine Type:	Horizontal
Feed TDS:	Up To 38000 Ppm	Operation Pressure:	700-1000 Psi
Permeate TDS:	<500 Ppm	High Pressure Pump:	Super Duplex
Recovery Rate:	98%
High Light:	reverse osmosis desalination plant , seawater desalination equipment

Horizontal seawater RO desalination plant for potable water production 15000GPD

1. Operation specifications

Feed TDS	10,000-42000 ppm
Electric control	Programmable logic controller \| PLC
Feed temperature	2-40℃
Feed PH	3-11
Operation pressure	600-1000 psi / 4-6.5 Mpa
Desalination rate	>98%
Permeate water salinaty	<500 mg/L
Capacity	500-750 m3/day
Electricity	380V/50HZ/3PH, other volt please specify upon order
Feed water pressure	40-80 psi / 0.1-0.3Mpa

2. Description:

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through.

The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts. The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 98% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water.

Technical data

Model	Capacity		Operate pressure Mpa		Electricity			Dimension	Machine type
Model	GPD	L/HR	Pretreat	Membrane	Voltage	Motor (kw)	Power	LxWxD (cm)	Machine type
SWRO-300	300	50	0.1-0.3	4-6.5	220/380	1.5	15Kwh/T	58x44x160	Vertical
SWRO-600	600	100	0.1-0.3	4-6.5	220/380	1.5	11Kwh/T	58x44x160	Vertical
SWRO-900	900	150	0.1-0.3	4-6.5	220/380	1.5	8Kwh/T	58x44x160	Vertical
SWRO-1500	1500	250	0.1-0.3	4-6.5	220/380	2.2	7.8Kwh/T	65x44x160	Vertical
SWRO-3000	3000	500	0.1-0.3	4-6.5	380	4.5	7Kwh/T	95x60x180	Vertical
SWRO-6000	6000	1000	0.1-0.3	4-6.5	380	7.5	6Kwh/T	250x70x120	Horizontal
SWRO-15K	15000	2500	0.1-0.3	4-6.5	380	22	4Kwh/T	250x120x170	Horizontal
SWRO-30K	30000	5000	0.1-0.3	4-6.5	380	40	3.5Kwh/T	340x150x180	Horizontal
SWRO-60K	60000	10000	0.1-0.3	4-6.5	380	80	3Kwh/T	340x200x180	Horizontal

3. Standard features:

Thin Film Composite Membranes
FRP Membrane Housings
Stainless Steel High Pressure Pump
Permeate Flow Meter
Low and High Pressure Shutoff Switches
Compact Aluminum Frame with Powder Coated Finish
Stainless Steel Back Pressure Control
5 Micron Sediment Filter and Housing
Differential Gauge Showing Filter Life
High Pressure Relief Valve
Liquid Filled System Pressure Gauge
Product TDS with Digital Display Readout
Fresh Water Divert: Monitors Permeate Quality and diverts to drain if it falls below a pre-set set point
Booster Pump and Raw Water Strainer
Fresh Water Flush Module
Installation Kit

4. Monitors and/or Controls:

Booster Pump
Delayed start-up of high pressure pump
Low and high pressure switches
On/Off with storage tank level*
Permeate TDS with alarm set-point
Water Temperature
Operating Hours
Fresh water flush
Automatic product water diversion

5. Controller Features:

Permeate Quality (TDS)
Water Temperature
Operating Hours
Operating Status
Alarm Condition
NEMA 4X Enclosure
Remote Control Operation (optional)

6. Applications

Island-based business	Coastal developments
Work boats	Villages & cities
Hotel and resorts	Fish processing plants
Cargo ships	Seaside work sites
Seaside villas	Oil tankers

7. Competitve advantage
We can assist in all or any number of areas required to plan, implement, operate and maintain your seawater RO desalination plant. Defining the Plant Scope refers to establishing the overall project limits that define who is responsible for each part of the Plant, and where the boundaries exist between client and supplier.
