Height 4.62m Galvanized Steel 27cbm Bolted Water Tanks

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	D274H152

Payment & Shipping Terms:

Minimum Order Quantity:	2
Packaging Details:	carton
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1000 sets per monthy

Contact Now

Detailed Product Description

Diameter:	2740m	Operate Pressure:	< 0.3 Mpa
Height:	1.52/2.31/3.08/3.85/4.62m	Capacity:	9/13/18/22/27cbm
Inlet/outlet:	Flange	Drainage Port:	Yes

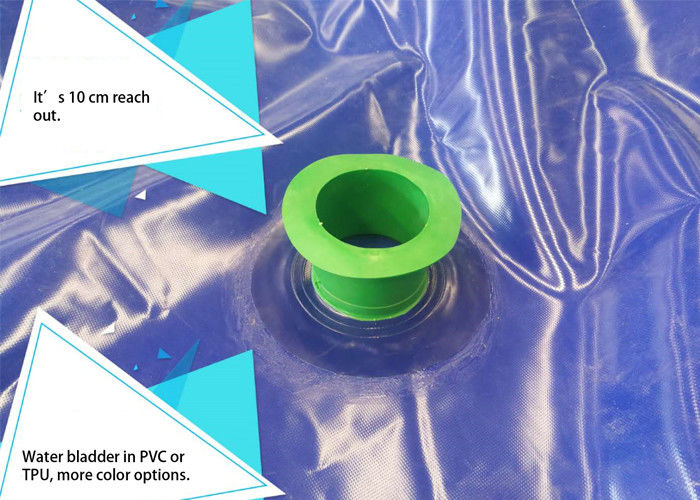

Liner Material:	PVC/TPU
High Light:	27cbm Bolted Water Tanks , PVC Liner Bolted Water Tanks , 4.62m Aquaculture Water Tanks

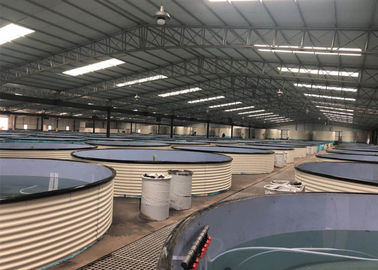

Aquaculture water tank, Galvanzied steel bolted water tanks, Fish farm tank, steel aquaculture water tanks

General introduction
We produce the best quality prefabricated tanks at most competitive price. It's assembled by corrugated steel sheet and bolts & nuts, fastly and easily for labor and cost save. Our bolted steel tanks can be used for a variety of applications, such as potable water storage, water storage for fire protection, wastewater storage and crude oil storage, fish farming tanks, rain water collection, etc.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

Height 4.62m Galvanized Steel 27cbm Bolted Water Tanks 0

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05	1.52	528		2.31	1554
	2.31	97		2.31	341		2.31	802		3.08	2072
	3.08	129		3.08	455		3.08	1070	30.2	1.52	1088
	3.85	161		3.85	568		3.85	1337		2.31	1653
	4.62	194		4.62	682		4.62	1608		3.08	2205
