FRPP chemical filter system for Chromic acid 375L / min 3HP

FRPP chemical filter system for Chromic acid 375L / min 3HP

    • FRPP chemical filter system for Chromic acid 375L / min 3HP
    • FRPP chemical filter system for Chromic acid 375L / min 3HP
  • FRPP chemical filter system for Chromic acid 375L / min 3HP

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: CB-2018

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 3 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 2000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Chemical Filtration System CB-2012 Material: FRPP / PVDF / CPVC
    Capacity: 375L/min Filtration Area: 1.8m2
    Suitable Plating Tank: 375Liter Temperature: 65 ℃
    Pump Power: 3HP Inlet/out Port Size: 2"
    High Light:

    chemical filter system


    water filtration systems

    FRPP chemical filter system for Chromic acid 375L/min 3HP



    Model CB-2004 CB-2006 CB-2008 CB-2012 CB-2018
    Filter element type Fitler cartridge with screw nut
    Filter element specification 20" x 4 20" x 6 20" x 8 20" x 12 20" x 18
    Filtration area (m2) 0.40  0.60  0.80  1.10  1.6
    Flow rate ( L/min ) 60 160 180 230 375
    Suitable plating tank 600L 1000L - 2000L 1000L - 3000L 2000L - 4000L 4000L - 6000L
    Temperature range 65℃ 65℃ 65℃ 65℃ 65℃
    Pump power ( W ) 1/3HP 1HP 1HP - 2HP 2HP 3HP
    Inlet / outlet port size 1" 1.5" 1.5" 1.5" 2"

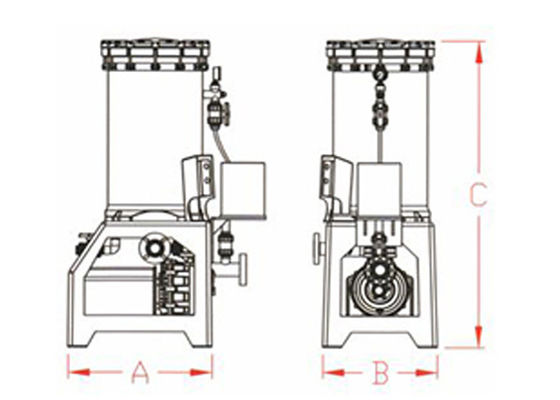

    Length A ( mm ) 455 680 680 680 680
    Depth B  ( mm ) 350 400 400 455 540
    Height C  (mm ) 1170 1460 1460 1490 1540



    1. Excellent application to circulated filtration operations for plating solution, chemical solution, and many corrosion

     liquid solution

    2. Various filter cartridge elements available for choice and easy operate: lock core filter, pressure core filter, pressure layered core filter, filter bag, paper filter, and bellow filter

    3. One piece plastic injection filter chambers, the filter housings feature the high temperature resistance and acid / alkali corrosion resistance

    4. Motor guard avoids corrosion of motor in acid environment

    5. The filter vessels provides high precision with wide filtration area, high efficiency, easy to operate and clean

    6. Ergonomics design, the modular structure ensure simple interchangeability for filtering cartridge elements replacement.

    7. Motor overload and phase loss protection

    8. Equipped with self-priming chemical pump or magnetic chemical pump upon requirement, leak proof, higher performance and

    lower power consumption

    9. Protecting cover prevent chemical corrosion damage

    10. Standard accessories: flange

    11. Optional parts: switch with guard, foot valve, check valve, look through tube, filter bag,


    Complete view

    FRPP chemical filter system for Chromic acid 375L / min 3HP 0


    Filter tank

    FRPP chemical filter system for Chromic acid 375L / min 3HP 1



    Electroplating solution

    PCB industry

    Dyeing industry


    Waste water treatment

    Effluent treatment plant

    Water treatment

    Food processing cleaning





    Waste gas scrubber

    Waste gas absorption tower

    Reaction tank


    Competitive advantage

    These filter chambers are designed for filtering process solutions where clarification will extend operating life and improve quality. The filtration vessels and chemical pumps are made by one piece injection non-metallic soultion contact plastic, CPVC, FRPP (Fiber glass reinforced polyepropylene), PVDF, which features heavy duty construction, chemical, acid/alkali resistance.
