All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | D274H385 |
Minimum Order Quantity: | 2 |
---|---|
Packaging Details: | carton |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, T/T, D/P |
Supply Ability: | 1000 sets per monthy |
Tank Diameter: | 274cm | Operate Pressure: | < 0.3 Mpa |
---|---|---|---|
Tank Height: | 3.85 M | Capacity: | 9 - 27 M3 |
Inlet/outlet: | Accessories Included | Drainage Port: | Yes |
Liner Material: | PVC/TPU/Canvas | ||
High Light: | 200m3 Steel Water Tanks,274cm Steel Water Tanks,Galvanized Corrugated Fish Farm Tanks |
hot galvanized corrugated steel 200m3 water tanks, with pVC liner watr bladder bag
General Description

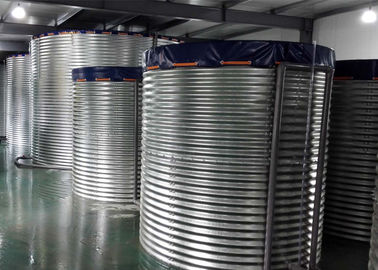

The steel bolted tanks are assembled by corrugated steel panel, which can be used for a variety of applications, including potable water storage, fire protection, waste water storage, fish farm, acquaculture.
Specification
Tank body material | corrugated galvanized steel |
Diameter range | 3 - 40 m, or customized |
Capacity | 4 - 2200 cbm |
Fastners | bolts & nuts, column strengthen |
Liner | PVC/TPU tarpulin/canvas |
Specifications:
Tank dia | Height | Capacity | Tank dia | Height | Capacity | Tank dia | Height | Capacity | Tank dia | Height | Capacity |
(m) | (m) | (m3) | (m) | (m) | (m3) | (m) | (m) | (m3) | (m) | (m) | (m3) |
1.86 | 1.52 | 4.1 | 8.24 | 1.52 | 81 | 14.64 | 1.52 | 255 | 21.96 | 1.52 | 575 |
2.31 | 6.2 | 2.31 | 123 | 2.31 | 388 | 2.31 | 874 | ||||
3.08 | 8.3 | 3.08 | 164 | 3.08 | 518 | 3.08 | 1165 | ||||
3.85 | 10.3 | 3.85 | 205 | 3.85 | 647 | 3.85 | 1457 | ||||
4.62 | 12.4 | 4.62 | 246 | 4.62 | 777 | 22.88 | 1.52 | 624 | |||
2.74 | 1.52 | 9 | 9.15 | 1.52 | 100 | 15.56 | 1.52 | 288 | 2.31 | 949 | |
2.31 | 13 | 2.31 | 151 | 2.31 | 438 | 3.08 | 1265 | ||||
3.08 | 18 | 3.08 | 201 | 3.08 | 585 | 3.85 | 1582 | ||||
3.85 | 22 | 3.85 | 252 | 3.85 | 731 | 23.79 | 1.52 | 674 | |||
4.62 | 27 | 4.62 | 302 | 4.62 | 877 | 2.31 | 1025 | ||||
3.66 | 1.52 | 16 | 10.06 | 1.52 | 120 | 17.39 | 1.52 | 360 | 3.08 | 1367 | |
2.31 | 24 | 2.31 | 183 | 2.31 | 547 | 3.85 | 1711 | ||||
3.08 | 32 | 3.08 | 244 | 3.08 | 730 | 24.71 | 1.52 | 727 | |||
3.85 | 40 | 3.85 | 305 | 3.85 | 912 | 2.31 | 1106 | ||||
4.62 | 48 | 4.62 | 367 | 4.62 | 1096 | 3.08 | 1475 | ||||
4.57 | 1.52 | 25 | 10.98 | 1.52 | 143 | 18.3 | 1.52 | 399 | 3.85 | 1846 | |
2.31 | 37 | 2.31 | 218 | 2.31 | 607 | 25.62 | 1.52 | 783 | |||
3.08 | 50 | 3.08 | 291 | 3.08 | 809 | 2.31 | 1190 | ||||
3.85 | 62 | 3.85 | 364 | 3.85 | 1012 | 3.08 | 1475 | ||||
4.62 | 75 | 4.62 | 437 | 4.62 | 1214 | 3.85 | 1846 | ||||
5.49 | 1.52 | 36 | 11.9 | 1.52 | 168 | 19.22 | 1.52 | 440 | 26.54 | 1.52 | 840 |
2.31 | 54 | 2.31 | 256 | 2.31 | 669 | 2.31 | 1277 | ||||
3.08 | 77 | 3.08 | 342 | 3.08 | 893 | 3.08 | 1702 | ||||
3.85 | 90 | 3.85 | 427 | 3.85 | 1116 | 27.45 | 1.52 | 898 | |||
4.62 | 108 | 4.62 | 513 | 4.62 | 1339 | 2.31 | 1365 | ||||
6.4 | 1.52 | 49 | 12.81 | 1.52 | 195 | 20.13 | 1.52 | 482 | 3.08 | 1820 | |
2.31 | 74 | 2.31 | 297 | 2.31 | 734 | 28.37 | 1.52 | 959 | |||
3.08 | 99 | 3.08 | 396 | 3.08 | 978 | 2.31 | 1458 | ||||
3.85 | 123 | 3.85 | 495 | 3.85 | 1223 | 3.08 | 1944 | ||||
4.62 | 148 | 4.62 | 596 | 4.62 | 1470 | 29.28 | 1.52 | 1022 | |||
7.32 | 1.52 | 64 | 13.72 | 1.52 | 224 | 21.05 | 1.52 | 528 | 2.31 | 1554 | |
2.31 | 97 | 2.31 | 341 | 2.31 | 802 | 3.08 | 2072 | ||||
3.08 | 129 | 3.08 | 455 | 3.08 | 1070 | 30.2 | 1.52 | 1088 | |||
3.85 | 161 | 3.85 | 568 | 3.85 | 1337 | 2.31 | 1653 | ||||
4.62 | 194 | 4.62 | 682 | 4.62 | 1608 | 3.08 | 2205 |
About us
We use safe materials, excellent design and competitive prices to manufacture flexible fish tanks for fish farming (aquaculture), fish farming, rainwater collection, emergency water supply, corn storage, etc.

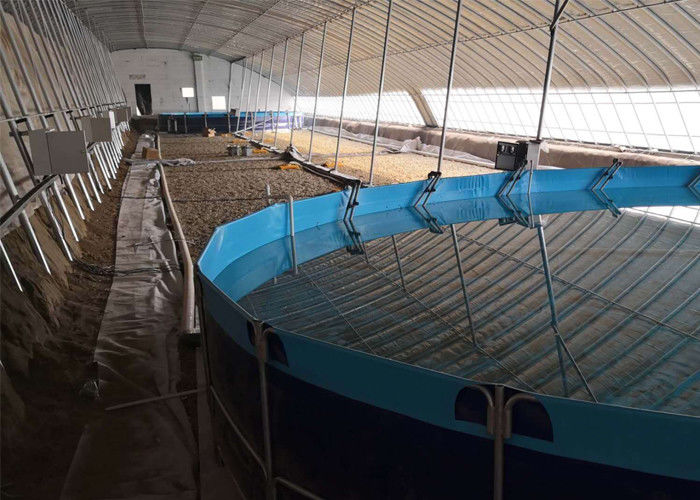

Photos of project
Contact Person: Mr. Murphy
Tel: +8613816614405
