Concentration distill of liquid material Ball concentrating tank in food stuff 1000L

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	QN-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	wooden pallet
Delivery Time:	6-8 weeks
Payment Terms:	T/T, L/C, D/P
Supply Ability:	10 pieces per month

Contact Now

Detailed Product Description

Product Name:	Ball Type Conentrating Tank	Model:	QN
Volume:	300L Up To 1000Liters	Evaporation Capacity:	Up 195 Kg/h
Spherical Diameter:	800mm To 1250mm	Steam Pressure:	0.09Mpa
Vacuum (mmHg):	500mmHg - 620mmHg	Gas Consumption:	77 Kg/h To 214kg/h
Heating Area:	1.1 M2 To 3.1 M2	Condensing Area:	3.0 M2 To 10.0m2
High Light:	industrial filter cartridges , stainless steel filter cartridges

Ball type concentrating tank for concentration distill of liquid material in food stuff 1000L

Specifications:

Material of construction: 304ss / 316L
Volume: 300L to 1000L
Evaporation capacity : 70 kg/h to 195kg/h
Spherical diameter (mm): 800 - 1250mm
Steam pressure: 0.09Mpa
Vacuum (mmHg): 500 - 620 mmHg
Heating area: 1.1 m2 to 10.0m2
Condensing area: 3.0 m2 to 4.1m2
Air consumption: 77 kg/h to 214 kg/h

Description:

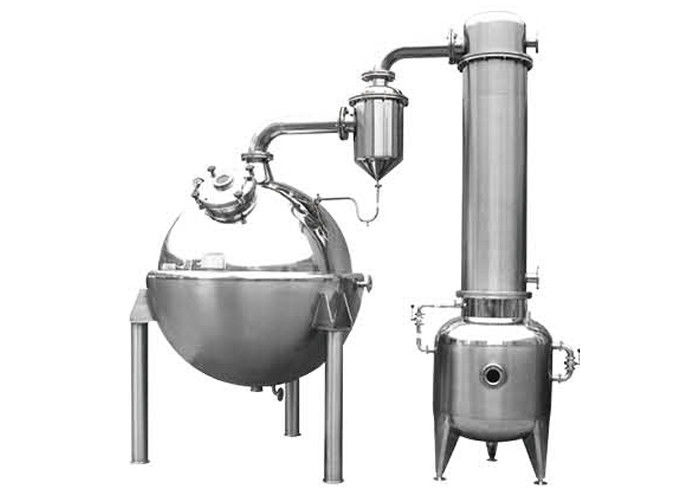

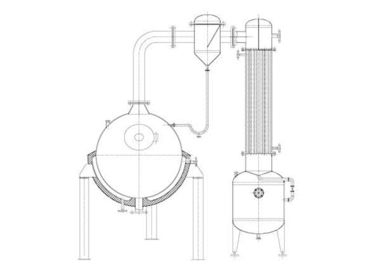

The round type concentration tank, consist of main body, condensator, gas liquid separator, and liquid receiving barrel. It serves to concentrate distill the liquid material and reclaim organic menstruum in the pharmacy, foodstuff and chemistry. The concentration under reduced pressure brings short time of concentration and prevent the destruction of the effective content in the thermal sensitive material. The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance, comply to GMP standard.

Technical data

Parameters	QN-300	QN-500	QN-700	QN-1000
Volume (L)	300	500	700	1000
Evaporation capacity ( kg/h )	70	120	145	195
Spherical diameter ( mm )	800	990	1115	1250
Steam pressure ( Mpa )	<0.09
Vacuum ( mmHg )	500 - 620
Heating area ( ㎡ )	1.1	1.6	2.7	3.1
Condensing area ( ㎡ )	3	4	5	10
Gas consumption ( kg/h )	77	132	159	214
Length (mm)	1900	2030	2100	2335
Depth (mm)	1100	1200	1300	1520
Height (mm)	2300	2500	2500	2765
