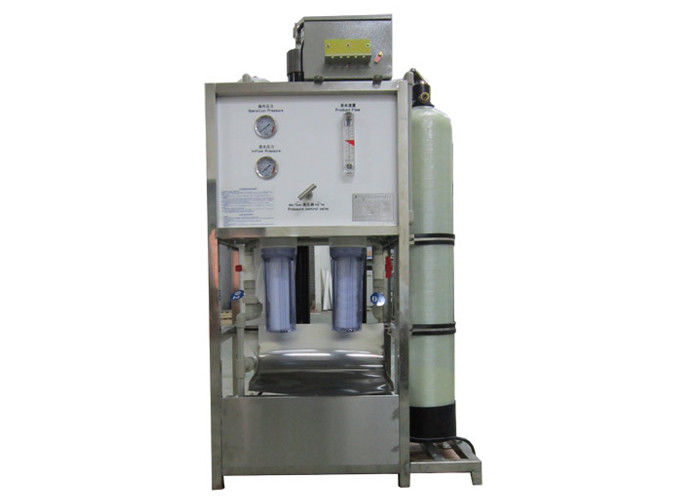

Compact Vertical Seawater RO Plant machine for marine use 5m3/day

Compact Vertical Seawater RO Plant machine for marine use 5m3/day

Compact Vertical Seawater RO Plant machine for marine use 5m3/day

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: SWRO1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Container or wooden pallet
Delivery Time: 60 working days after receipt of payment
Payment Terms: T/T or LC, D/A
Supply Ability: 5 pcs per month
Contact Now
Detailed Product Description
Product Name: Seawater Reverse Osmosis Desalination Machine Machine Type: Vertical
Feed TDS: Up To 38000 Ppm Operation Pressure: 700-1000 Psi
Permeate TDS: <500 Ppm High Pressure Pump: Super Duplex
Recovery Rate: 98%
High Light:

reverse osmosis desalination plant

,

sea water reverse osmosis plant

Compact seawater reverse osmosis desalination machine for marine use 5m3/day



1. Operation specifications

Feed TDS

10,000-42000 ppm

Electric control Programmable logic controller | PLC

Feed temperature

2-40℃

Feed PH

3-11

Operation pressure

600-1000 psi / 4-6.5 Mpa

Desalination rate

>98%

Permeate water salinaty

<500 mg/L

Capacity

500-750 m3/day

Electricity

380V/50HZ/3PH, other volt please specify upon order

Feed water pressure

40-80 psi / 0.1-0.3Mpa





























2. Technical data

Model Capacity Operate pressure Mpa Electricity Dimension Machine type
GPD L/HR Pretreat Membrane Voltage Motor (kw) Power LxWxD   (cm)
SWRO-300 300 50 0.1-0.3 4-6.5 220/380 1.5 15Kwh/T 58x44x160 Vertical
SWRO-600 600 100 0.1-0.3 4-6.5 220/380 1.5 11Kwh/T 58x44x160 Vertical
SWRO-900 900 150 0.1-0.3 4-6.5 220/380 1.5 8Kwh/T 58x44x160 Vertical
SWRO-1500 1500 250 0.1-0.3 4-6.5 220/380 2.2 7.8Kwh/T 65x44x160 Vertical
SWRO-3000 3000 500 0.1-0.3 4-6.5 380 4.5 7Kwh/T 95x60x180 Vertical
SWRO-6000 6000 1000 0.1-0.3 4-6.5 380 7.5 6Kwh/T 250x70x120 Horizontal
SWRO-15K 15000 2500 0.1-0.3 4-6.5 380 22 4Kwh/T 250x120x170 Horizontal
SWRO-30K 30000 5000 0.1-0.3 4-6.5 380 40 3.5Kwh/T 340x150x180 Horizontal
SWRO-60K 60000 10000 0.1-0.3 4-6.5 380 80 3Kwh/T 340x200x180 Horizontal




3. Description:

From water-makers to industrial sized Seawater Purification, we offer a full range of systems.  Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through.

The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts.  The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 98% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water.



4. Standard features:

  • Thin Film Composite Membranes
  • FRP Membrane Housings
  • Stainless Steel High Pressure Pump
  • Permeate Flow Meter
  • Low and High Pressure Shutoff Switches
  • Compact Aluminum Frame with Powder Coated Finish
  • Stainless Steel Back Pressure Control
  • 5 Micron Sediment Filter and Housing
  • Differential Gauge Showing Filter Life
  • High Pressure Relief Valve
  • Liquid Filled System Pressure Gauge
  • Product TDS with Digital Display Readout
  • Fresh Water Divert: Monitors Permeate Quality and diverts to drain if it falls below a pre-set set point
  • Booster Pump and Raw Water Strainer
  • Fresh Water Flush Module
  • Installation Kit

5. Monitors and/or Controls:

  • Booster Pump
  • Delayed start-up of high pressure pump
  • Low and high pressure switches
  • On/Off with storage tank level*
  • Permeate TDS with alarm set-point
  • Water Temperature
  • Operating Hours
  • Fresh water flush
  • Automatic product water diversion

6. Controller Features:

  • Permeate Quality (TDS)
  • Water Temperature
  • Operating Hours
  • Operating Status
  • Alarm Condition
  • NEMA 4X Enclosure
  • Remote Control Operation (optional)​

7. Applications

Island-based business

Coastal developments

Work boats

Villages & cities

Hotel and resorts

Fish processing plants

Cargo ships

Seaside work sites

Seaside villas

Oil tankers


8. Competitve advantage
We can assist in all or any number of areas required to plan, implement, operate and maintain your seawater RO desalination plant. Defining the Plant Scope refers to establishing the overall project limits that define who is responsible for each part of the Plant, and where the boundaries exist between client and supplier.
