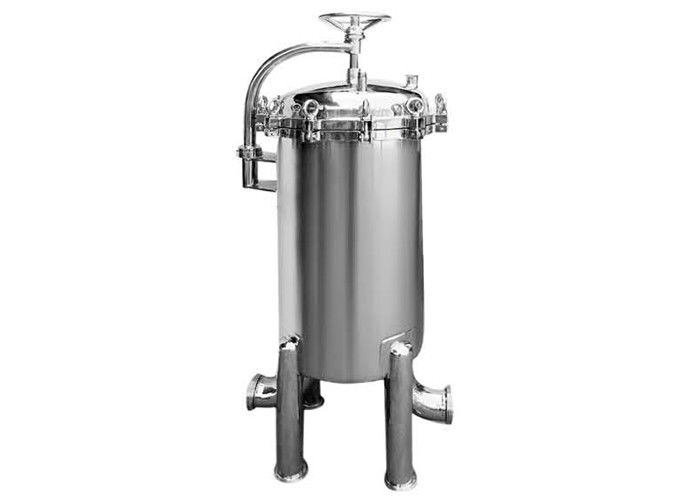

Bottom entry multi Bag Filter Housings swing bolt for processing chemicals 600m3/h 150psi

Bottom entry multi Bag Filter Housings swing bolt for processing chemicals 600m3/h 150psi

    • Bottom entry multi Bag Filter Housings swing bolt for processing chemicals 600m3/h 150psi
    • Bottom entry multi Bag Filter Housings swing bolt for processing chemicals 600m3/h 150psi
  • Bottom entry multi Bag Filter Housings swing bolt for processing chemicals 600m3/h 150psi

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: BM4P2S

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 3 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 1000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Multi Bag Filter Vessels BM4P2S Model: BM4P2S
    Operation Pressure: 150 Psi , 1.0 Mpa Seal Gasket: Buna , Silicon , Viton , EPDM
    Port Connect: Threaded BSP , NPT, Flange, Grooved Coupling Wall Thickness: 2mm
    Surface Finish: Sand Blast Or Electro Polishing Suitable Bag: 1# , 2# , 3# , 4#
    Top Closure: Swing Bolt Material Of Construction: SS304 / 316L / Carbon Steel
    High Light:

    bag filter vessels

    ,

    ss filter housing

    Bottom entry multi bag filter housing systems with swing bolt for processing chemicals 600m3/h 150psi



    Specification

    Technical parameter Data
    Max Operation pressure 1.0Mpa / 150psi / 10.53bar
    Max operation temperature 110 ℃
    Pressure tolerance on welding seam 0.85
    Housing materials SS304, 316L , carbon steel
    Gasket seal materials Buna , Buna white FDA, Viton, Teflon, EPDM
    Connection port thread NPT, BSP , flanged , grooved coupling , tri-clamp
    Top closure Swing bolt
    Suitable filter bag type 2#

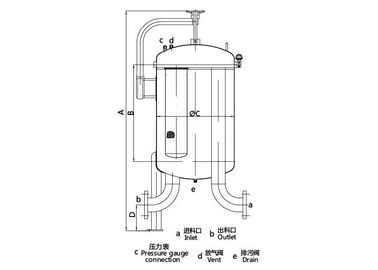

    Product Dimensions:

    Model A B C D
    BM-4P2S 1700 750 600 200
    BM-6P2S 1900 750 750 200
    BM-8P2S 2450 750 1150 200



    Descriptions

    Bag filter system is designed for optimum filtration performance. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation.



    Operation

    Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are collected on the inside of filter bag for easy removal. The filtered fluid then exits through the outlet pipe.



    Features:

    • High flow rates up to 40m3/h
    • Low pressure drop and high dirty holding capacity
    • Positive sealing arrangement to avoid bypassing
    • Suitable for PP collar, rigid ring & snap band bags
    • Quick swing bolt lid opening
    • Easy operate, low maintenance and down time
    • Large area , heavy duty stainless steel baskets
    • All housings are made of SS304, 316L, mirror polished or sandblast surface finish
    • High temperature & high pressure design
    • Special options include filter bag hold down devices, sanitary, different outlet connections, higher pressure ratings, heat jacketing and adapters for holding filter bags & magnets design bag filter

    Options

    • Sanitary fittings and construction

    •  Higher pressure rating

    • Housings of alloy steel

    • Steam jackets

    • Special outlet locations

    • Optional cartridge sealing methods for  226, NPT, etc

    • High temperature gasket designs

    Bag filter suitable for bag configuration

    • PP Collar Bag
    • Rubber Collar Bag
    • Snap Band Bag
    • Rigid Ring Bag
    • Flange Collar Bag

    Gasket / O-ring seal materials:

    • Neoprene
    • Nitrile
    • Silicone
    • Viton
    • Buna N
    • EPDM
    • PTFE

    End port connections :

    •  NPT / BSP Threaded
    • Flanged Table E / Table F
    • ANSI B 16.5 Flanged
    • DIN Standard
    • Tri Clover Adaptors
    • SMS /Dairy End Connection

    Bag filter system available with bag size

    1#:  Ø 4" x 10" Long Filter Bag
    2#:  Ø 4" x 17" Long Filter Bag
    3#:  Ø 7" x 17" Long Filter Bag
    4#:  Ø 7" x 32" Long Filter Bag



    Applications

    Processing Chemicals Paints
    Petroleum Derivatives Inks
    Coolants Resins
    Cutting Oils Varnishes
    Cleaning Fluids Lacquers
    Vegetable Oils Pharmaceuticals
    Edible Oils Sugar Cyrup
    Polymers Plastsols



    Competitive advantage:



    The bag filter housings cover nearly every fluid application need. From the compact miniature single bag filter vesselto the large multi-bag designs, we have exactly what your flow demands require. The filter vessels can be equipped with a variety of lid opening styles including manual, hydraulic, spring assist and Easy Open.

    Our filter vessels using size 1#, 2#, 3#, $# filter bags are designed, built. Standard equipment features like the single-gasket seal, with sturdy perforated metal baskets provide durable and consistent performance.
