All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | D100H231 |
Minimum Order Quantity: | 2 |
---|---|
Packaging Details: | carton |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, T/T, D/P |
Supply Ability: | 1000 sets per monthy |
Diameter: | 10.06m | Operate Pressure: | < 0.3 Mpa |
---|---|---|---|
Height: | 1.52/2.31/3.08/3.85/4.62m | Capacity: | 120-367 Cbm |
Inlet/outlet: | Hole Opening Tools | Drainage Port: | Yes |
Liner Material: | PVC/TPU | ||
High Light: | 200m3 Galvanized Steel Water Tank,10.06m Galvanized Steel Water Tank,367cbm Steel Water Tank |
Hot galvanized steel water tank, 200m3, Diameter 10 m by Height 2.31m for aquaculture water tanks
General introduction
The steel bolted tanks, are easily assembled. It includes prefabricated panel, bolt and nuts, diameters range from 4 m to 30 m, height from 1 m to 5 m. The round steel water tanks are widely used for water storage tanks, fish farming tank, steel fish pond basin, etc.
Specification
Tank body material | corrugated galvanized steel |
Diameter range | 3 - 40 m, or customized |
Capacity | 4 - 2200 cbm |
Fastners | bolts & nuts, column strengthen |
Liner | PVC/TPU tarpulin/canvas |
Specifications:
Tank dia | Height | Capacity | Tank dia | Height | Capacity | Tank dia | Height | Capacity | Tank dia | Height | Capacity |
(m) | (m) | (m3) | (m) | (m) | (m3) | (m) | (m) | (m3) | (m) | (m) | (m3) |
1.86 | 1.52 | 4.1 | 8.24 | 1.52 | 81 | 14.64 | 1.52 | 255 | 21.96 | 1.52 | 575 |
2.31 | 6.2 | 2.31 | 123 | 2.31 | 388 | 2.31 | 874 | ||||
3.08 | 8.3 | 3.08 | 164 | 3.08 | 518 | 3.08 | 1165 | ||||
3.85 | 10.3 | 3.85 | 205 | 3.85 | 647 | 3.85 | 1457 | ||||
4.62 | 12.4 | 4.62 | 246 | 4.62 | 777 | 22.88 | 1.52 | 624 | |||
2.74 | 1.52 | 9 | 9.15 | 1.52 | 100 | 15.56 | 1.52 | 288 | 2.31 | 949 | |
2.31 | 13 | 2.31 | 151 | 2.31 | 438 | 3.08 | 1265 | ||||
3.08 | 18 | 3.08 | 201 | 3.08 | 585 | 3.85 | 1582 | ||||
3.85 | 22 | 3.85 | 252 | 3.85 | 731 | 23.79 | 1.52 | 674 | |||
4.62 | 27 | 4.62 | 302 | 4.62 | 877 | 2.31 | 1025 | ||||
3.66 | 1.52 | 16 | 10.06 | 1.52 | 120 | 17.39 | 1.52 | 360 | 3.08 | 1367 | |
2.31 | 24 | 2.31 | 183 | 2.31 | 547 | 3.85 | 1711 | ||||
3.08 | 32 | 3.08 | 244 | 3.08 | 730 | 24.71 | 1.52 | 727 | |||
3.85 | 40 | 3.85 | 305 | 3.85 | 912 | 2.31 | 1106 | ||||
4.62 | 48 | 4.62 | 367 | 4.62 | 1096 | 3.08 | 1475 | ||||
4.57 | 1.52 | 25 | 10.98 | 1.52 | 143 | 18.3 | 1.52 | 399 | 3.85 | 1846 | |
2.31 | 37 | 2.31 | 218 | 2.31 | 607 | 25.62 | 1.52 | 783 | |||
3.08 | 50 | 3.08 | 291 | 3.08 | 809 | 2.31 | 1190 | ||||
3.85 | 62 | 3.85 | 364 | 3.85 | 1012 | 3.08 | 1475 | ||||
4.62 | 75 | 4.62 | 437 | 4.62 | 1214 | 3.85 | 1846 | ||||
5.49 | 1.52 | 36 | 11.9 | 1.52 | 168 | 19.22 | 1.52 | 440 | 26.54 | 1.52 | 840 |
2.31 | 54 | 2.31 | 256 | 2.31 | 669 | 2.31 | 1277 | ||||
3.08 | 77 | 3.08 | 342 | 3.08 | 893 | 3.08 | 1702 | ||||
3.85 | 90 | 3.85 | 427 | 3.85 | 1116 | 27.45 | 1.52 | 898 | |||
4.62 | 108 | 4.62 | 513 | 4.62 | 1339 | 2.31 | 1365 | ||||
6.4 | 1.52 | 49 | 12.81 | 1.52 | 195 | 20.13 | 1.52 | 482 | 3.08 | 1820 | |
2.31 | 74 | 2.31 | 297 | 2.31 | 734 | 28.37 | 1.52 | 959 | |||
3.08 | 99 | 3.08 | 396 | 3.08 | 978 | 2.31 | 1458 | ||||
3.85 | 123 | 3.85 | 495 | 3.85 | 1223 | 3.08 | 1944 | ||||
4.62 | 148 | 4.62 | 596 | 4.62 | 1470 | 29.28 | 1.52 | 1022 | |||
7.32 | 1.52 | 64 | 13.72 | 1.52 | 224 | 21.05 | 1.52 | 528 | 2.31 | 1554 | |
2.31 | 97 | 2.31 | 341 | 2.31 | 802 | 3.08 | 2072 | ||||
3.08 | 129 | 3.08 | 455 | 3.08 | 1070 | 30.2 | 1.52 | 1088 | |||
3.85 | 161 | 3.85 | 568 | 3.85 | 1337 | 2.31 | 1653 | ||||
4.62 | 194 | 4.62 | 682 | 4.62 | 1608 | 3.08 | 2205 |

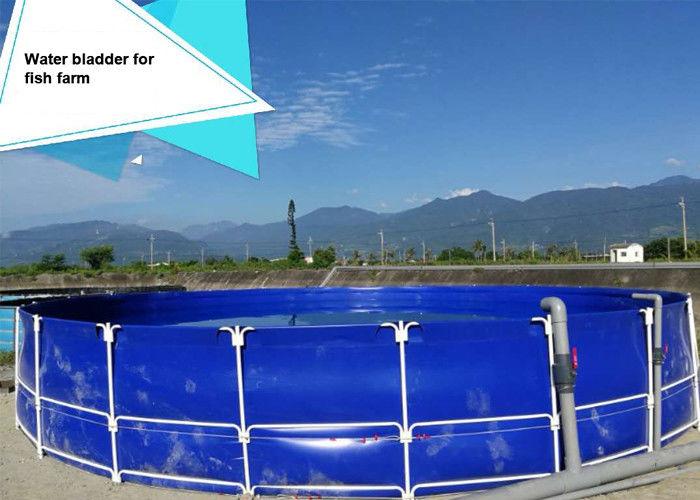

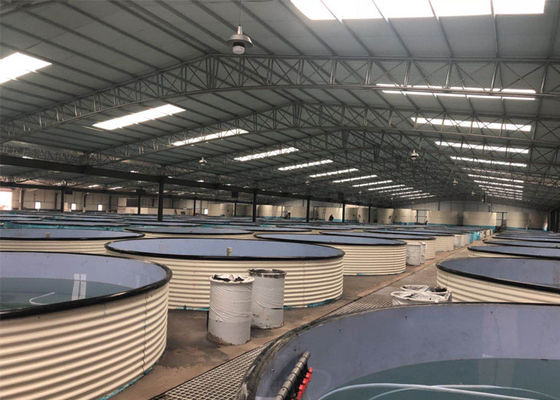

Photos of project
