Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	D274H462

Payment & Shipping Terms:

Minimum Order Quantity:	2
Packaging Details:	carton
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1000 sets per monthy

Contact Now

Detailed Product Description

Tank Dia:	2740mm	Operate Pressure:	< 0.3 Mpa
Tank Height:	4620 Mm	Capacity:	9 - 27 M3
Inlet/outlet:	Accessories Included	Drainage Port:	Yes
Liner Material:	PVC/TPU/Canvas
High Light:	2740mm Steel Bolted Tanks , Anti Corrosion Steel Bolted Tanks , SGS Aquarium Steel Bolted Tanks

Hot Dip Galvanized Water Tank fire systems by steel bolted tanks with pVC Liner

General Description

The aquarium solution uses a steel bolt tank and is prefabricated with arc-shaped steel plates, bolts and nuts. We provide a variety of performance materials to meet the needs of different customers. The flexible water tank used in the garden of foldable family farm is a kind of self-supporting water tank, which can stand automatically after filling water, without manual intervention. The fully customized length, width and height are suitable for places with high space requirements, such as vehicle transportation, and the vehicle is tailored for all types of vehicles. It has the advantages of shockproof, anti ultraviolet, good sealing, anti-corrosion, long service life and convenient use.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks 0

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05	1.52	528		2.31	1554
	2.31	97		2.31	341		2.31	802		3.08	2072
	3.08	129		3.08	455		3.08	1070	30.2	1.52	1088
	3.85	161		3.85	568		3.85	1337		2.31	1653
	4.62	194		4.62	682		4.62	1608		3.08	2205

About us

We use safe materials, excellent design and competitive prices to manufacture flexible fish tanks for fish farming (aquaculture), fish farming, rainwater collection, emergency water supply, corn storage, etc.

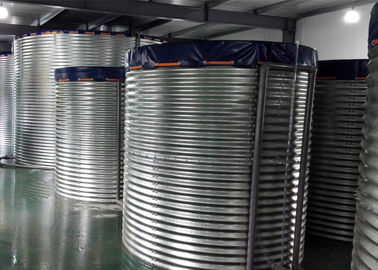

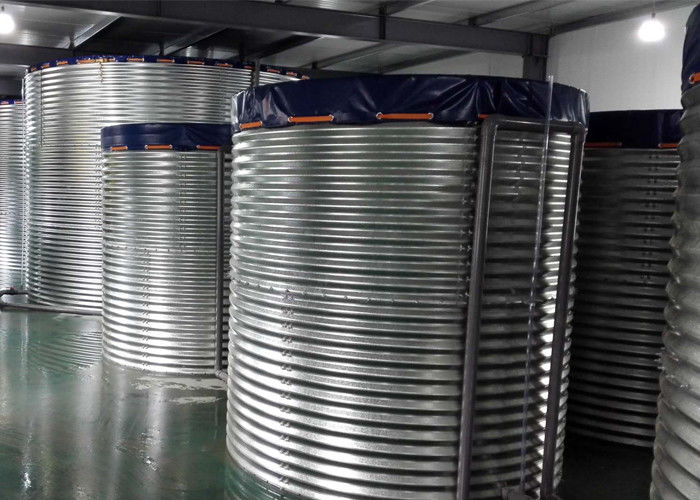

Photos of project

Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks 1
