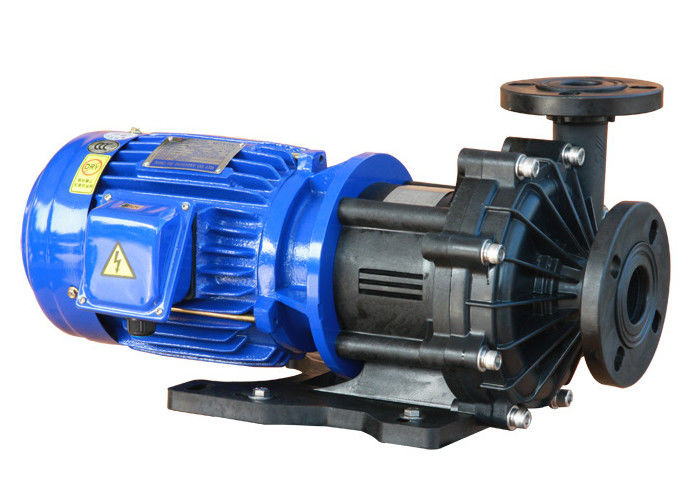

Anti corossion Magnetic pump for chemical filtration inactivated carbon solutio 7.5HP PVDF

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	MED505

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	USD500
Packaging Details:	carton
Delivery Time:	3-6 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	2000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Magnetic Chemical Pump	Type:	Non Self Priming
Material:	FRPP , PVDF	Power:	3.75 Kw
Flow:	33.96 M3/h	Head Pressure:	26 M
Frequency:	50HZ / 60HZ	Inlet / Outlet Port:	2" X 1.5"
High Light:	chemical filter system , industrial filtration systems

Anti corossion Magnetic pump for chemical filtration inactivated carbon solutio 7.5HP PVDF

Description:

Magnetic chemical Pumps are seal-less, providing for maintenance-free and "leak-proof" operation. The magnetic coupling acts as a clutch to provide overload protection. The broad range of construction materials allows for a variety of applications and service with most corrosive solutions.
Its impeller magnet assembly floats in the radial magnetic field set up by the motor driven external drive magnet. The impeller is designed to deliver the maximum flow and pressure utilizing the available strength of the synchronized magnets.
Standard diameter impeller is suitable for waterlike liquids to 1.1 specific gravity. Liquids having a higher specific gravity can be pumped if the overall diameter of the impeller is reduced, the outlet flow is restricted,or the restrictions from a filter or other head loss is sufficient to keep the impeller magnet in synchronization.
The materials of construction are as specified, all of which include a fluoride resistant ceramic spindle and thrust washer. Casing 'O' ring is nbr and external fasteners are SS. Standard impeller is designed to pump solutions having a specific gravity up to 1.1.
Motors are chemical service rated continuous duty, TEFC or explosion proof, painted two-part epoxy gray paint. An eight foot (2.4m) three-wire cord and plug are supplied on all TEFC single phase motors. Three phase and explosion-proof motors are supplied without cord or plug.

Specifications:

Model

Inlet/outlet

Power

50HZ

60HZ

Weight

(kg)

Curve

Flow(L/min)

Head(m)

Curve

Flow(L/min)

Head(m)

MEP/F7572

3" x 2.5"

7.5

1080

1100

119

MEP/F75102

3" x 2.5"

1160

1300

121

Anti corossion Magnetic pump for chemical filtration inactivated carbon solutio 7.5HP PVDF 0

Features:

SEAL-LESS and LEAK-PROOF for total solution containment reliable, trouble-free pumping
Corrosion resistant PP, PVDF, SS316
Centrifugal - quiet, vibration-free
Flows to 53 gpm or 58 FT. TDH @ 60 Hz
Maximum liquid temperature
PP: 65 °C
PVDF: 90 °C
Rugged construction Designed for continuous duty Horizontal or vertical discharge
Severe duty motor All motors carry 1.15 service factor at 50 and 60 Hz
Single phase motors have automatic thermal overload protection

Exploded view

Anti corossion Magnetic pump for chemical filtration inactivated carbon solutio 7.5HP PVDF 2

Applications:

Electroplating solution	PCB industry	Dyeing industry
Pharmaceutical	Waste water treatment	Effluent treatment plant
Water treatment	Food processing cleaning	Photographic
Chemical	Petrochemical	beverage
Waste gas scrubber	Waste gas absorption tower	Reaction tank
