Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing

Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing

    • Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing
    • Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing
  • Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS/QS
    Model Number: DBY80PP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: Negotiable
    Packaging Details: carton
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 5000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Pneumatic Diaphragm Pump DBY10PP Max Flow Range: 3.4 Gpm / 12.8 Lpm
    Max Work Pressure: 58 Psi (0.4 Mpa / 4 Bar) Fluid Inlet: 3/8 Inch BSP
    Fluid Outlet: 3/8 Inch BSP Max Suction Height: 10 Ft (3 M)
    Max Particle Size: 3/32 Inch (2.5 Mm) Flow Per Stroke: 0.04 Gallon (0.15 L)
    Stroke Cycle: 85 Cpm
    High Light:

    air driven diaphragm pump

    ,

    air operated double diaphragm pump

    Electric Diaphragm Pumps for toxic and volatile fluid transfer PP housing



    Ⅰ.Overview



    DBY Series, the third electric diaphragm pump adopted the cycloidal reducer which is enable the volume of left and right pump chamber, so as to suck in and exhaust liquids, is one new kind of pumps, which has been employed in more and more industrialized countries over the world in recent years because of the breakthrough development in its diaphragm materials, it displaces some centrifugal pumps and screw pumps and is used in the fields of chemistry, ceramics, metallurgy and so on.



    Ⅱ. Operating Principle



    Each of two symmetrical working chamber are equipped with a piece of elastic diaphragm, which is connected by a connecting rod that square groove is on the above. With the key, the motor shafter is connected to a piece of eccentric shaft connected with the bearing, which is working with the above square groove. Connecting rod can be working, when the motor rotates.

    When connecting rod shaft to the left movement, the left chamber being in compression state, the liquid was squeezed out of the chamber, at the same time the right side of the chamber is on expansion, so the external liquid can be inhaled into the chamber in the body; After connecting rod movement to the right, the right chamber in compression state, the liquid is compressed to outside, at the same time the left chamber on the expansion can the external fluid into the

    chamber in the body, thus realize the motor drives the diaphragm work back and forth, the medium's transfer function.

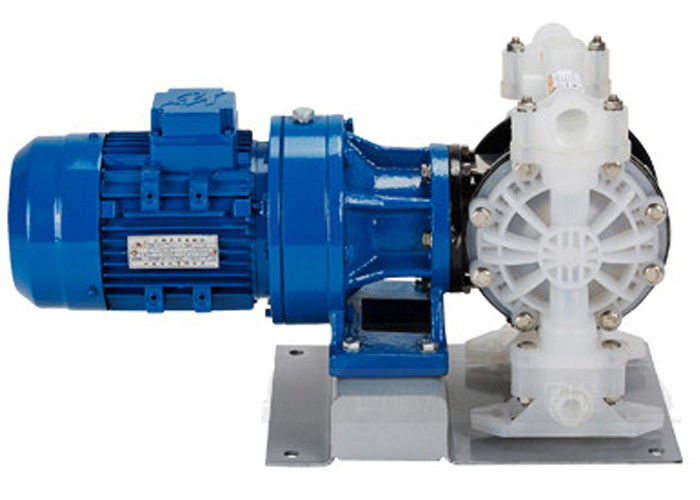

    Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing 0



    Ⅲ. Main Applications


    1. Various toxic, flammable and volatile liquids;

    2. Various strongly acidic, strongly alkaline and strongly corrosive liquids;

    3. Transmitting mediums with high temperature at 150;

    4. Backing pressure feeder for various filter presses;

    5. Employed for retrieving and circulation of heat water;

    6. Loading and unloading of oil tankers, oil depots and oil goods.

    7. Pumping of pickles, jams, mashed potato and chocolate etc.

    8. Pumping of paint, gum and pigment adhesives;

    9. Employed for various porcelain, glaze, cement, grout, mortar and slurry;

    10. Employed for various rubber, latex, organic solvent, stuffing;

    11. Employed for clearance of oil tanker barge to suck off inner sewage and residual oil.

    12. Employed for hops, yeast thin grout, syrup and molasses;

    13. Pumping of sewage and sediment in mine, adit, tunnel and sewer.

    14. Suction and transmission of various special mediums.


    IV. Data sheet

    Type Model Inlet Max flow Max head Max Suction Max out P Max particle Power RPM Operate temperature
    mm LPM m m bar mm kw CS Al SS PP PVDF
    LOW PRESSURE DBY3-10 10 12.8 40 3 4 2.5 0.55 1450 90 120 150 80 150
    DBY3-15 15 12.8 40 3 4 2.5 0.55 1450 90 120 150 80 150
    DBY3-25 25 48 40 3 4 3.2 1.5 1450 90 120 150 80 150
    DBY3-32 32 48 40 3 4 3.2 1.5 1450 90 120 150 80 150
    DBY3-40 40 48 40 3 4 3.2 1.5 1450 90 120 150 80 150
    DBY3-50 50 162 40 3 4 4.8 2.2 1450 90 120 150 80 150
    DBY3-65 65 162 40 3 4 4.8 2.2 1450 90 120 150 80 150
    DBY3-80 80 245 40 3 4 6.5 2.2 1450 90 120 150 80 150
    DBY3-100 100 245 40 3 4 6.5 3 1450 90 120 150 80 150
    DBY3-125 125 480 40 3 4 9.4 4 1450 90 120 150 - -
    HIGH PRESSURE DBY3-10 10 12.8 70 3 7 2.5 0.75 1450 90 120 150 80 150
    DBY3-15 15 12.8 70 3 7 2.5 0.75 1450 90 120 150 80 150
    DBY3-25 25 48 70 4 7 2.5 2.2 1450 90 120 150 80 150
    DBY3-32 32 48 70 4 7 2.5 2.2 1450 90 120 150 80 150
    DBY3-40 40 48 70 4 7 2.5 2.2 1450 90 120 150 80 150
    DBY3-50 50 162 70 5 7 2.5 3 1450 90 120 150 80 150
    DBY3-65 65 162 70 5 7 2.5 3 1450 90 120 150 80 150
    DBY3-80 80 245 70 5 7 2.5 4 1450 90 120 150 80 150
    DBY3-100 100 245 70 5 7 2.5 4 1450 90 120 150 80 150
    DBY3-125 125 480 70 6 7 2.5 5.5 1450 90 120 150 - -



    V. Product Picture

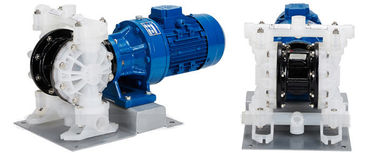

    Air Operated Pneumatic Diaphragm Pumps for toxic and volatile fluid transfer PP housing 1
