48cbm Hot Galvanized Corrugated Steel 200M3 Water Tanks

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	D366H152

Payment & Shipping Terms:

Minimum Order Quantity:	2
Packaging Details:	carton
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1000 sets per monthy

Contact Now

Detailed Product Description

Diameter:	3660m	Operate Pressure:	< 0.3 Mpa
Height:	1.52/2.31/3.08/3.85/4.62m	Capacity:	16/24/32/40/48cbm
Inlet/outlet:	Flange	Drainage Port:	Yes
Liner Material:	PVC/TPU
High Light:	200M3 Water Tanks , Corrugated Steel Water Tanks , 48cbm Water Storage Tanks

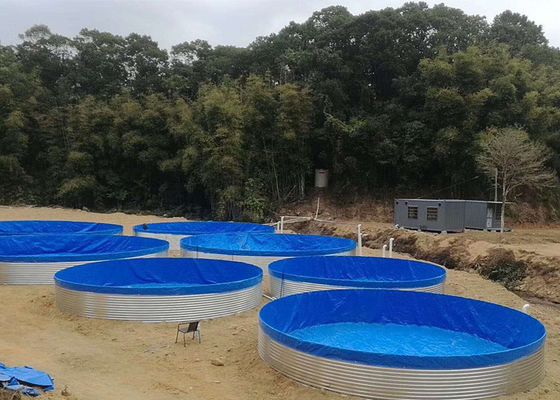

Hot galvanized corrugated steel 200 m3 water tanks, corrugated galvanized steel water tanks

General introduction
The economic solution for steel water storage tanks, fish farming tanks, shrimp farming tank, steel fish pond basin. The round tank can be easily assembled by corrugated steel panel with bolts and nuts. Inlet, outlet and drainage port can made on site as per requirement.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

48cbm Hot Galvanized Corrugated Steel 200M3 Water Tanks 0

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05	1.52	528		2.31	1554
	2.31	97		2.31	341		2.31	802		3.08	2072
	3.08	129		3.08	455		3.08	1070	30.2	1.52	1088
	3.85	161		3.85	568		3.85	1337		2.31	1653
	4.62	194		4.62	682		4.62	1608		3.08	2205
