All Flow Technology
Place of Origin: | China |
Brand Name: | Purescience |
Certification: | ISO9001/SGS |
Model Number: | SWR-C200K |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiation |
Packaging Details: | Container or wooden pallet |
Delivery Time: | 60 working days after receipt of payment |
Payment Terms: | T/T or LC, D/A |
Supply Ability: | 5 pcs per month |
Product Name: | Containerized Seawater Desalination Plant | Production Capacity: | 200,000 GPD | 750m3/day |
---|---|---|---|
Feed TDS: | Up To 38000 Ppm | Operation Pressure: | 4-6.5 Mpa |
Pressure Exchange Energy Recovery: | PX / PI (above 90m3/day) | Permeate TDS: | <500 Ppm |
High Pressure Pump: | Super Duplex | Skid Frame: | Carbon Steel |
High Light: | reverse osmosis desalination plant,seawater desalination equipment |

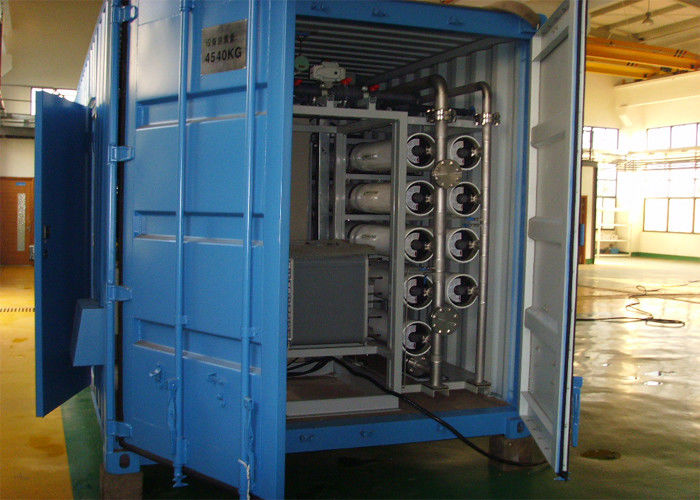

Mobile Containerized Seawater RO Plant for drinking water production 36 m3/hour 750m3/hour
1. Operation Specifications:
Feed TDS |
10,000-42000 ppm |
Feed temperature |
2-40℃ |
Feed PH |
3-11 |
Operation pressure |
600-1000 psi / 4-6.5 Mpa |
Desalination rate |
>98% |
Permeate water salinaty |
<500 mg/L |
Capacity |
500-750 m3/day |
Electricity |
380V/50HZ/3PH, other volt please specify upon order |
Power |
95Kw |
Tonnage electricity consumption |
3.5 Kwh/T |
Feed water pressure |
40-80 psi / 0.1-0.3Mpa |
2. Description:
Take the expense and the mystery out of large-scale reverse osmosis plants with a Containerized system. By making pre-designed, module-sized plants, fully assembled in standard 20-ft and 40-ft containers with the option for a 10-ft as well, the complexity and the construction of a building to house a water purification plant is no longer necessary. The container just needs to be shipped out to where the potable water is needed, and after a brief training session, commissioned workers are ready to produce high-quality potable water within days of delivery.
The plant will include:
Interconnecting piping between components and systems
Cabling and wiring of instrumentation inside the container to main control cabinet.
Operations and Maintenance manuals
General Arrangement 3D/2D CAD drawings
Temperature ("Hot/Cold" Containers)
In hot climate areas - electrical devices and fluids must be kept below 35 ℃ to ensure good process performance. The temperature inside a container placed under direct sunlight can easily reach 80 ℃, therefore we offer air-cooled insulated containers with an external sunlight rejection coating.
In cold climate area - fluids must be kept above their freezing points and electrical equipment suffers at temperatures below 5 ℃. In this case, we offer insulated containers with heating equipment.
Technical data
Container size | 20ft | 40ft | |||||
Output capacity (m3/hr) | 6 | 10 | 15 | 25 | 20 | 25 | 50 |
Operation pressure (Mpa) | 5.0-6.8 | ||||||
Feed water pressure (Mpa) | 0.1-0.5 | ||||||
Recovery rate | 35-40% | ||||||
Power consumption (Kwh/T) | 3-4 Kwh/T |
Side View
3. Applications
Island-based business |
Coastal developments |
Work boats |
Villages & cities |
Hotel and resorts |
Fish processing plants |
Cargo ships |
Seaside work sites |
Seaside villas |
Oil tankers |
4. Competitve advantage
Containerized water treatment plants have many advantages over built-in plant room installations and have a plethora of special options available:
|
|
|
