Product Name: | Pneumatic Diaphragm Pump DBY10PP | Max Flow Range: | 64.7 Gpm / 245 Lpm |
---|---|---|---|
Max Work Pressure: | 58 Psi (0.4 Mpa / 4 Bar) | Fluid Inlet: | 3 Inch BSP |
Fluid Outlet: | 3 Inch BSP | Max Suction Height: | 16.4 Ft (5 M) |
Max Particle Size: | 1/4 Inch (6.5 Mm) | Flow Per Stroke: | 1.03 Gallon (3.9 L) |
Stroke Cycle: | 63 Cpm | ||
High Light: | air driven diaphragm pump,air operated double diaphragm pump |

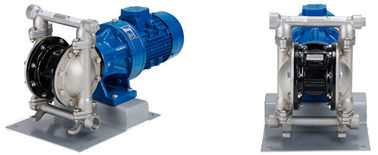

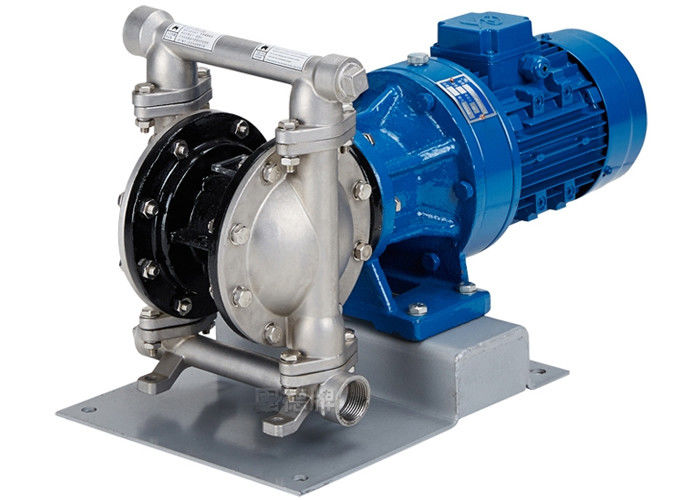

Electric diaphragm pump made of stainless steel double diaphragm inlet | outlet DN80
Introduction:
Our DB electric diaphragm pump adopts imported bearing copper paint. The gearbox driven by the gear has high output force. Its speed reducer and motor are combined as one, providedwith highly efficient output force.
Operation Principle
The two symmetrical working chamber, each is equipped with a piece of elastic diaphragm, which is connected by a connecting rod that square groove is on the above. With the key, the motor shafter is connected to a piece of eccentric shaft connected with the bearing, which is working with the above square groove. Connecting rod can be working, when the motor rotates.
When connecting rod shaft to the left movement, the left chamber being in compression state, the liquid was squeezed out of the chamber, at the same time the right side of the chamber is on expansion, so the external liquid can be inhaled into the chamber in the body; After connecting rod movement to the right, the right chamber in compression state, the liquid is compressed to outside, at the same time the left chamber on the expansion can the external fluid into the
chamber in the body, thus realize the motor drives the diaphragm work back and forth, the medium's transfer function.
Features of DB electric diaphragm pump
The electric diaphragm pump is with the cycloidal reducer which can enable the volume of left and right pump chamber, it sucks and exhausts liquid in that principle. The pumps are widely applied in more and more industrialized countries over the world in recent years because of the breakthrough development in its diaphragm materials, it displaces some centrifugal pumps and screw pumps and is used in the fields of chemistry, ceramics, metallurgy and so on.
Industrial Applications
1. Various toxic, flammable and volatile liquids;
2. Various strongly acidic, strongly alkaline and strongly corrosive liquids;
3. Transmitting mediums with high temperature at 150;
4. Backing pressure feeder for various filter presses;
5. Employed for retrieving and circulation of heat water;
6. Loading and unloading of oil tankers, oil depots and oil goods.
7. Pumping of pickles, jams, mashed potato and chocolate etc.
8. Pumping of paint, gum and pigment adhesives;
9. Employed for various porcelain, glaze, cement, grout, mortar and slurry;
10. Employed for various rubber, latex, organic solvent, stuffing;
11. Employed for clearance of oil tanker barge to suck off inner sewage and residual oil.
12. Employed for hops, yeast thin grout, syrup and molasses;
13. Pumping of sewage and sediment in mine, adit, tunnel and sewer.
14. Suction and transmission of various special mediums.
Data sheet
Type | Model | Inlet | Max flow | Max head | Max Suction | Max out P | Max particle | Power | RPM | Operate temperature | ||||
mm | LPM | m | m | bar | mm | kw | CS | Al | SS | PP | PVDF | |||
LOW PRESSURE | DBY3-10 | 10 | 12.8 | 40 | 3 | 4 | 2.5 | 0.55 | 1450 | 90 | 120 | 150 | 80 | 150 |
DBY3-15 | 15 | 12.8 | 40 | 3 | 4 | 2.5 | 0.55 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-25 | 25 | 48 | 40 | 3 | 4 | 3.2 | 1.5 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-32 | 32 | 48 | 40 | 3 | 4 | 3.2 | 1.5 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-40 | 40 | 48 | 40 | 3 | 4 | 3.2 | 1.5 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-50 | 50 | 162 | 40 | 3 | 4 | 4.8 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-65 | 65 | 162 | 40 | 3 | 4 | 4.8 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-80 | 80 | 245 | 40 | 3 | 4 | 6.5 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-100 | 100 | 245 | 40 | 3 | 4 | 6.5 | 3 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-125 | 125 | 480 | 40 | 3 | 4 | 9.4 | 4 | 1450 | 90 | 120 | 150 | - | - | |
HIGH PRESSURE | DBY3-10 | 10 | 12.8 | 70 | 3 | 7 | 2.5 | 0.75 | 1450 | 90 | 120 | 150 | 80 | 150 |
DBY3-15 | 15 | 12.8 | 70 | 3 | 7 | 2.5 | 0.75 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-25 | 25 | 48 | 70 | 4 | 7 | 2.5 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-32 | 32 | 48 | 70 | 4 | 7 | 2.5 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-40 | 40 | 48 | 70 | 4 | 7 | 2.5 | 2.2 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-50 | 50 | 162 | 70 | 5 | 7 | 2.5 | 3 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-65 | 65 | 162 | 70 | 5 | 7 | 2.5 | 3 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-80 | 80 | 245 | 70 | 5 | 7 | 2.5 | 4 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-100 | 100 | 245 | 70 | 5 | 7 | 2.5 | 4 | 1450 | 90 | 120 | 150 | 80 | 150 | |
DBY3-125 | 125 | 480 | 70 | 6 | 7 | 2.5 | 5.5 | 1450 | 90 | 120 | 150 | - | - |
