21 Bar Corrosion Resistance Plastic Flexible Coupling For Grooved Piping System

21 Bar Corrosion Resistance Plastic Flexible Coupling For Grooved Piping System

    • 21 Bar Corrosion Resistance Plastic Flexible Coupling For Grooved Piping System
  • 21 Bar Corrosion Resistance Plastic Flexible Coupling For Grooved Piping System

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ANSI/AWWA/ASTM/ANSI/NSF61
    Model Number: 75N

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 pieces
    Price: negotiable
    Packaging Details: carton and pallet
    Delivery Time: 2 to 3 weeks
    Supply Ability: 100000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Nylon Flexible Coupling Pressure Rating: 21bar
    Category: Grooved Connect Rubber Gasket | Seal: EPDM
    Material: Composite Plastic ( Nylon ) Pipe OD: 33.4mm - 219.1 Mm
    Normal Size: DN25 - DN200 ( 1in - 8in)
    High Light:

    water stop valve

    ,

    grooved piping system

    21 bar corrosion resistance Plastic flexible coupling for grooved piping system in UF sea water desalination plant DN25



    1. Specifications

    • Pressure rating: 300 psi ( 21 bar)
    • Size range (Diameter): DN 25 to DN150 | 1" to 6"
    • Operation temperature range: -50 ℃ to 150 ℃
    • Standards: ANSI/AWWA/ASTM/ANSI/NSF61

    Data sheet

    Nominal
    size

    Pipe

    OD

    Pressure

    rating

    Pipe end

    separation

    Dimensions
    A B C
    mm mm psi mm mm mm mm
    in in bar in in in in
    25
    1
    33.4
    1.315
    300
    20.67
    0-1.6
    0-0.06
    54
    2.126
    94
    3.701
    42
    1.654
    32
    1.25
    42.20
    1.660
    300
    20.67
    0-1.6
    0-0.06
    63
    2.480
    103
    4.055
    44
    1.732
    40
    1.5
    48.30
    1.900
    300
    20.67
    0-1.6
    0-0.06
    70
    2.756
    112
    4.409
    44
    1.732
    50
    2
    60.30
    2.375
    300
    20.67
    0-1.6
    0-0.06
    82
    3.228
    124
    4.882
    44
    1.732
    65
    2.5
    73.00
    2.875
    300
    20.67
    0-1.6
    0-0.06
    96
    3.780
    148
    5.827
    44
    1.732
    65 76.10
    3.000
    300
    20.67
    0-1.6
    0-0.06
    100
    3.937
    152
    5.984
    44
    1.732
    80
    3
    88.90
    3.500
    300
    20.67
    0-1.6
    0-0.06
    113
    4.449
    166
    6.535
    44
    1.732
    100
    4
    114.3
    4.500
    300
    20.67
    0-3.2
    0-0.13
    140
    5.512
    193
    7.598
    48
    1.890
    125
    5
    141.3
    5.563
    300
    20.67
    0-3.2
    0-0.13
    167
    6.575
    222
    8.740
    50
    1.969
    150
    6
    168.3
    6.625
    300
    20.67
    0-3.2
    0-0.13
    196
    7.717
    252
    9.921
    56
    2.205



    2. Description

    The model 75N is designed for solving the corrosion problems which usually happen in low pressure piping systems. Our couplings are produced in good quality reinforced nylon, injection molded by high temperature. It features its high strength and toughness, perfect corrosion resistance performance. They're widely used in ultra filtration ( UF ) membrane system and other water treatment, seawater desalination equipment.

    Our flexible couplings give contractors, engineers and owners an unmatched competitive edge cutting piping system installation time, and making installations safer. These grooved pipe joints offers you with innovative solutions

    acrossdiverse business lines including building services, clean water and waste water, fire protection, industrial

    construction, maritime, mining, oil, gas and chemical, power generation, as well as custom castings.

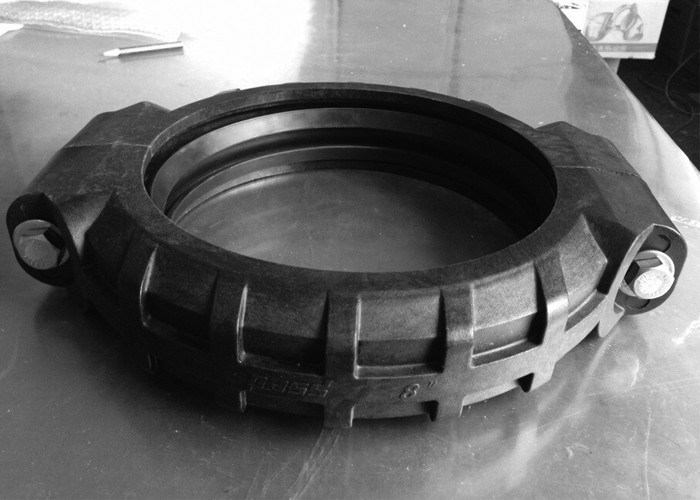

    21 Bar Corrosion Resistance Plastic Flexible Coupling For Grooved Piping System 0



    Quick joints housing materials:

    Nylon, other composite, plastic material upon demands.



    Bolts&Nuts:

    • Type 304 stainless steel track bolts and nuts to ASTM F-593
    • Type 316 stainless steel track bolts and nuts to ASTM F-593
    • Type 316 stainless steel track bolts ASTM A193 B-8M with silicone bronze heavy duty nuts to  ASTM B98 C65100​

    Rubber Gaskets or seals:

    The gasket seals is C-shaped, made of standard gasket EPDM (ethylene propylene diene monomer) for cold water, hot water, rare acid, oilfree air and multiple chemical product (-50~150 ).It is not suitable for medium like petroleum



    3. Applications

    Clean water

    Reverse osmosis | RO system, Ultrafiltration | UF system, seawater desalination,

    Waste water

    Water treatment, waste water treatment, seawater desalination, effluent treatment plant

    Grooved piping

    Fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation



    4. Competitive advantage

    • AutoCAD is used to design products and optimize structures
    • Cast Process Design by by Castsoft CAD and CAE

    • Strict Manufacturing Process control

    • Quality Control Of The Casting Material

    • Metal Material Laboratory for test of compositional, metallographic & mechanical property

    • Perfect apperance

    • Strict test standard compliance to UL213 and FM1920

    • Strict standard for sealing gaskets production and material test.
