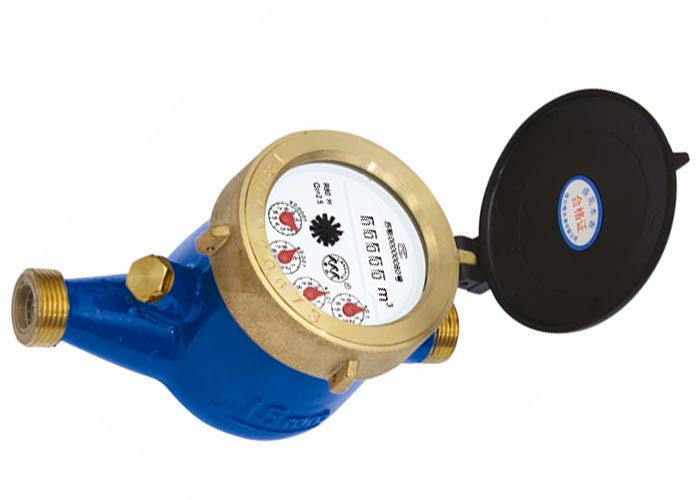

150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B

150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B

  • 150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B
  • 150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B
150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ISO9001, GB/T19001
Model Number: IXSG50
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: USD 5 - USD10
Packaging Details: unit pack by brown box, pallet
Delivery Time: 4-5 weeks
Payment Terms: L/C, D/P, T/T
Supply Ability: 2,800,000 sets per year
Contact Now
Detailed Product Description
Product Name: Multi Jet Dry Dial Water Meter Principle: Multi Jet
Type: Vane Wheel Magnetic: Permanent
Seal: Vacuum Accuracy: + / - 2% @ Cold Water
Operation Pressure: 150 Psi / 1.0 Mpa Port Connect: Thread
Standard: ISO4064 , GBT778 , Q/320700JR05-2003 Function: Totalizer , Flow Rate
Highlight:

totalizing water meter

,

Dry Dial water meter

Multi jet impeller type water meter with dry-dial for cold water flow rate and totalizer DN50



The dry dial water meters use the multi-jet principle, also single jet principle available for smaller port size. This

vane wheel water meter is known for its wide range, simple operation, and accuracy in cold water or hot water

totalization and flow rate metering. The impeller is centered in a ring of jets, with inlet jets on one level and outlet

jets on another. A gear train drives the register totalizer dials. For pulse output, one of the dials is replaced by a

gear, which turns a magnet that is detected by an encapsulated sensor threaded into the outside of the lens.

Pulse rate is determined by the gear and the dial on which the gear is placed. Changing the pulse rate requires no

special tools and can be done in the field.



Feature:



  • Multi-jet, dry-dial, easy for maintenance;
  • Magnetic drive reliable characteristic, long working life;
  • Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long
    term service;
  • Technical data conform to international standard ISO4064 Class B



Note:

  • Measuring accuracy conform to ISO 4064 class B standard..
  • Available with different length on request. Available in hot water meter on request.

Working condition:

  • Water temperature:0.1℃~40℃( 0.1℃~90℃ for hot water meter)
  • Water pressure: ≤1.0Mpa

Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

(3) Hot water meter ±3%



Data sheet

Model

Dia

(mm)

Class

ISO4064

Overload

flow (Qs)

Permanent

flow (Qp)

Transitional

flow (Qt)

Min flow

Qmin

Min reading

Max reading

(m3/h)

(L/h)

( m3 )

LXSG-15

15

B

3

1.5

120

30

0.00005

99,999

LXSG-20

20

B

5

2.5

200

50

0.00005

99,999

LXSG-25

25

B

7

3.5

280

70

0.00005

99,999

LXSG-32

32

B

12

6.0

480

120

0.00005

99,999

LXSG-40

40

B

20

10

800

200

0.00005

99,999

LXSG-50

50

B

30

15

3000

450

0.00005

99,999























Dimension

Model

Pipe Dia

Length(L)

Width(B)

Height (H)

Thread

LXSG-15

15

165/165

88

102

G3/4B

LXSG-20

20

195/190

99

102

G1B

LXSG-25

25

225/260

98

124

G1-1/4B

LXSG-32

32

230/260

102

124

G1-1/2B

LXSG-40

40

200/300

112

125

G2B

LXSG-50

50

200/300

112

125

G2-1/2B

















Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line

150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B 0

Base water meter

150 Psi / 1.0 Mpa Accuracy Multi Jet Water Meter DN50 Standard ISO4064 Class B 1
