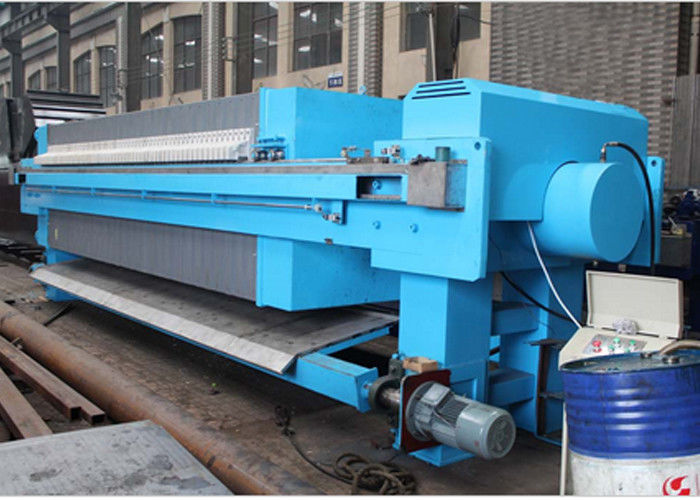

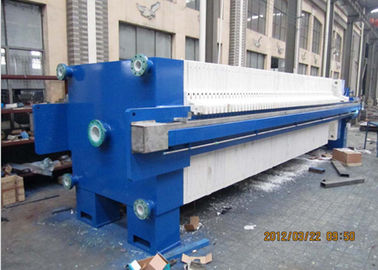

0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm

0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm

    • 0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm
    • 0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm
  • 0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001 QMS / ISO14001
    Model Number: XZG2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD4000 - USD10000
    Packaging Details: wooden case
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, , T/T, D/P
    Supply Ability: 20 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Membrane Filter Press Press Plate Size: 2000 X 2000 Mm
    Filter Pressure: 0 - 1.0 Mpa Motor Power: 7.5 Kw + 1.5 Kw
    Operation: Automatic Temperature (Max): 100 ℃
    Filter Area: 560 ㎡ - 1050 ㎡ Nos Of Press Plate: 79 - 149 Pieces
    Chamber Volume: 9800 - 18380 Liters
    High Light:

    industrial filter press


    filter press machine

     Fast open membrane filter press Chamber pressure 0.8 Mpa Plate size 2000mm


    The Chamber filter press or membrane filter presses have been used in a variety of waste water or slurry treatment,

    industries from plating and metal finishing to chemical and food processing. Our filter Presses feature heavy duty

    steel construction with polypropene gasketed plates. These filter presses can be manufactured with manual or

    automatic closures, but always with a hydraulic cylinder for sure, high pressure closing. The filter pressescan be

    expanded for larger future capacity by building it in a larger skeleton with a distance piece.  Once you are ready to

    expand, you can remove the distance piece  and add the extra plates.



    • Air Driven Hydraulic Closing Pump with Pressure Gauge on Automatic Units
    • 2 Stage Hand Pump on Manual Units
    • Heavy Duty Hydraulic Cylinder for Opening and Closing of Press

    The filter press is an intermittent dewatering process. Each press operation includes the following steps:

        Closing of the press: as the filter is completely empty, the moving head activated by the jacks calmps the plates.
        Closing pressure is self regulated through filtration
        Filling: During this short phase chamber are filled with sludge for filtration. Filling time depends on the flow of the
        feed pump. For sludge having good filterability it is best to fill the filter very quickly so as to avoid the formation
        of a cake in the first chamber before the last ones have been filled.
        Filtration: Once the chamber have been filled continuous arrival of sludge to be dewatered provokes a rise in
        pressure due to the formation of an increasingly thick layer of filter sludge on the cloths. This filtration phase can
        be stopped manually, by a timer or more convenientely by a filtrate flow indicator which issues a stop alarm when
        the end of filtration rate has been reached. When the filtration pump has stopped, the filtrate circuits and central
        duct, which is still filled with liquid sludge, are purged by compressed air.
        Filter opening: The moving head is drawn back to disengage the first filtration chamber. The cake falls has a result
        of his own weight. A mechanised system pulles out the plates one by one. The speed of plate separation can be
        adjusted to account to the cake texture.
        Washing: Whasing of clothes should be carried out every 15-30 processing oprations. For mid- or large units this
        take place on press using water sprayers at very high pressure (80-100 bar). Whasing is sincronized with separation
        of plates.

    Flow chart of squeezing press filtering and washing - Free flow type


    Filtration cycle

    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 0

    Flow chart of filtering, washing and crushing flow chart - Under current flow type

    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 1

    Filtration capacity

    The production capacity of a filter press is somewhere between 1.5 and 10 kg of solid per m2 of filtering surface. For
    every the filter press model the chamber volume and the filtering surface depend on the number of plates in the filer.

    In practical terms pressing times are less then four hours.
    Filtration time depends on:

    • cake thikness
    • sludge concentration
    • specific resistance
    • compressibility coefficient.

    One of the advantages of the filer press is that it can accept sludge with average filterability. It is always advantageous to

    optimally thicken sludge before filter press operations. Although sludge presenting a high filterability enables better production

    capacities, a filter press still accepts sludge with low conditioning precision. This tolerance means that the device offers

    greater owerall operational safety.



    Data sheet






    of filter




    of plate




    in filter





    Nos of

    filter plate








    XZ560/2000 560 9800 80/35 <0.8 <80 79 7.5+1.5 10582x2620x2520 35270
    XZ630/2000 630 11030 80/35 <0.8 <80 89 7.5+1.5 11392x2620x2520 37790
    XZ700/2000 700 12250 80/35 <0.8 <80 99 7.5+1.5 12202x2620x2520 40320
    XZ770/2000 770 13480 80/35 <0.8 <80 109 7.5+1.5 13012x2620x2520 42840
    XZ840/2000 840 14700 80/35 <0.8 <80 119 7.5+1.5 13822x2620x2520 45360
    XZ910/2000 910 15930 80/35 <0.8 <80 129 7.5+1.5 14632x2620x2520 47890
    XZ980/2000 980 17150 80/35 <0.8 <80 139 7.5+1.5 1544xx2620x2520 50040
    XZ1050/2000 1050 18380 80/35 <0.8 <80 149 7.5+1.5 16252x2620x2520 52930












    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 2Pipe line diagraphm

    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 3



    The filter press is suitable for almost all types of sludge:

        Hydrophilic organic sludge: inorganic conditioning is often recommended to enable satisfactory cake release due to minimal
        aderence to filter cloth.
        Hydrophilic inorganic sludge: the filer press generally requires the addition of lime only.
        Hydrophobic inorganic sludge: it is very dense and ideal for the filter press. It is dewatered without any preliminary conditioning.
        Oily sludge: the filter press can be used to treat sludge containing light oils, the presence of grease can sometimes impair the
        smooth running of the filter; clothes have to be degreased at frequent intervals.



    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 4

    0.8 Mpa Fast Open Membrane Filter Press Chamber Plate Size 2000mm 5


    Competitive advantage


    Quality - Rapid filtration, highly automated, stable performance, easy operation and equipped high temperature, high pressure, anti-corrosion, reliably sealing filter plates. We strictly execute ISO9001 quality control system, striving to offer our client the products with advanced technology and best quality to achieve the best filtration.
    Service  We always have the faith that customer is highest. Before selling out products, we offering technology advice, solution design and give guidance on installation and commissioning. We always follow the using status of our machine, striving to offer all-round premium service.
    Technology  We constantly adopt advanced technology for filter press to make the products apply with the most innovative science & technology. We also can make custom designed filter press, filter plates and accessories. To meet the market demand, we brought novel & leading technology filter presses together with German designers.
