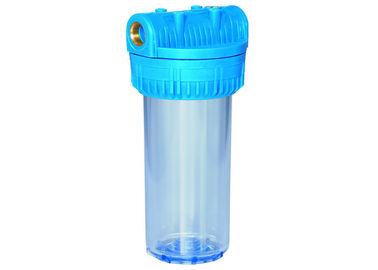

Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001

Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001

    • Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001
    • Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001
    • Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001
  • Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: FS10-04W

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Negotiable
    Packaging Details: carton
    Delivery Time: 4 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: PP Cartridge Filter Housing Material Of Construction: Polypropylene PP
    Operation Pressure: 0.8 Mpa Seal: Single O-ring
    Port Connect: Threaded BSP , NPT Gasket: Buna-N , EPDM
    Filter Element: Dia. 2.5" X 20", Application: 5 Stage RO 50GPD
    High Light:

    industrial filter cartridges

    ,

    stainless steel filter cartridges

    Polypropylene cartridge filter housing for counter top water filter 1/4" inlet/outlet



    Benefits

    • Construction material is high quality polypropylene, which offers you reliability and chemical resistance
    • Wide color ranges available to create an attractive product
    • Available in a variety of in and out connection sizes to accommodate most line sizes
    • The standard design fits most standard filter cartridges in the industry

    Product data sheets

    Model Inlet/outlet Thread

    Cartridge

    Length

    Housing

    color

    Cap

    color

    Dimensions Packing
    FS-CB14 1/4 inch NPT 10" clear black 296 x 116 mm 12 pieces
    FS-CW14 1/4 inch NPT 10" clear white 296 x 116 mm 12 pieces
    FS-WB14 1/4 inch NPT 10" white black 296 x 116 mm 12 pieces
    FS-WW14 1/4 inch NPT 10" white white 296 x 116 mm 12 pieces



    Technical Parameters

    Parameters Data
    Max. operation pressure 150PSI
    Max. design temperature 50℃
    Construction materials Housing body: polypropylene, cover: ABS
    Inlet/outlet  NPT, or FNPT, BSP, Flange, grooved, Tri-clamp
    Vent  1/4" NPT
    Drain 1/4" NPT



    Descriptions

    Our 10" slim plastic cartridge filter housing are constructed of polypropylene. The cartridge housings are widely used for water filtration, reverse osmosis, under sink water filter, count top water filter. Various standard filter cartridge element, PP sediment, GAC, KDF, etc.



    Accessories

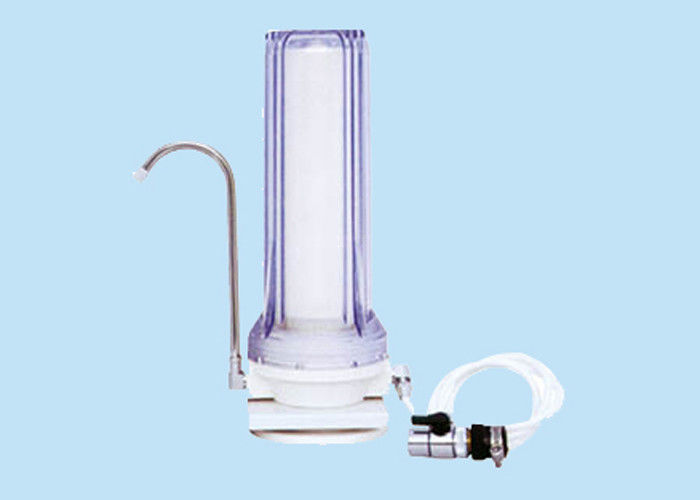

    -Count top water filter

    Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001 0

    Mount Bracket

    Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001 1

    Filter cartridge element

    Polypropylene Filter Cartridge Housing For Counter Top Water Filter 1/4" Inlet / Outlet ISO9001 2

    Features:

    • Polypropylene molded construction
    • FNPT / BSP thread connection
    • Suitable for PP spun filter cartidge, string wound filter cartridge, membrane pleated filter cartridge
    • Double o-ring seals
    • Cover vent and drain valve

    Applications

    Water Treatment Oil & Gas Automobiles Cement
    Refineries Textiles Petro Chemicals Power Plant
    Pharma & Biotech Steel Industries Dyes & Intermediates Paints & Inks
    Sugar Industry Electronics Mining Food & beverage
    Edible Oil Aeronautics Fertilizers Pipe
    Pulp & Paper Electoplating Aerospace Chemicals
    Dairy, Food & Beverage Aerospace , Defence & Marine





    Competitive advantage

    Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
