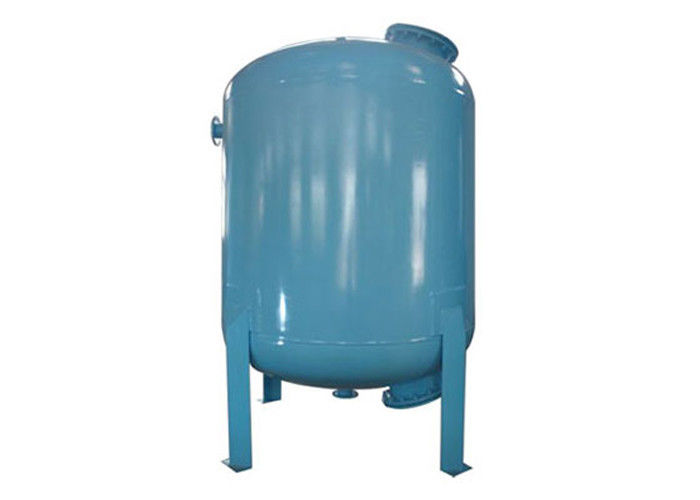

Defluorination Mechnical Tank Water Filter CS With Rubber Liner 1.0 Mpa 36 m3/H

Defluorination Mechnical Tank Water Filter CS With Rubber Liner 1.0 Mpa 36 m3/H

Defluorination Mechnical Tank Water Filter CS With Rubber Liner 1.0 Mpa 36 m3/H

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: NSF/ISO9001/SGS
Model Number: DEF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 sets per monthy
Contact Now
Detailed Product Description
Tank Size: Dia. 2400 X H 3250 Mm Operate Pressure: < 1.0 Mpa
Material Of Construction: Carbon Steel With Rubber Liner Flow Velocity: 2.5 M/h
Inlet SS: < 5mg/L Air Wash Consumption: 18-25L/m2.S
Flow Volume: 10m3/h Inlet / Outlet Port: DN100 / 4"
Forwardwash Duration: 10-15 Minutes

Defluorination mechnical filter tanks CS with rubber liner 1.0Mpa 36m3/h



Introduction

The deflurination filter removes fluorides with activated aluminum oxide absorbent, that are widely applicable and efficiently. As an amphoteric matter, activated aluminum oxide features ion exchange in water and with isoelectric point at about pH=9.5. When the PH of water is less than 9.5, anion can be absorbed and when the PH of water is larger than 9.5, kation can be absorbed. Therefore, in acid solution, activated aluminum oxide is anion exchanger, being selective for fluorine.



The Fluorine-contained water is removed by activated aluminum oxide and form in-dissolvable fluoride. When defluorination capability decreases to certain limit, or to say saturated, It can be recovered with regeneration agents, defluorination capability of the absorbent is recovered. Aluminum sulfate is adopted for regenerating cleaning at the ratio of 60:1 of the quantity of aluminum sulfate and that of defluorination amount. Regeneration concentration is 1%-2%. After operation of 3-4 months, use HCL solution of concentration of 3.5% to clean and then rinse with defluorination water for 8-10 minutes.



Technical advantage

  • Robust design, mild steel with internal rubber liner and anticorrosion surface treatment

  • Proven process and most tested forms of water treatment

  • Systems are robust with no moving parts inside the tanks

  • Built-in control, forward and backwash piping and connection port

  • Suitable with various filtration media

  • Easily cleaned and maintained

  • Resistant to fouling (clogging)

Specification:

Model Flow volume (m3/h) Tank size (mm) Inlet/outlet port
DEF32-010 1.0 Dia. 800 * H 2600 DN40
DEF32-020 2.0 Dia. 1000 * H 2700 DN50
DEF32-030 3.0 Dia. 1300 * H 2800 DN50
DEF32-050 5.0 Dia. 1600 * H 2950 DN65
DEF32-080 8.0 Dia. 2000 * H 3150 DN80
DEF32-100 10.0 Dia. 2400 * H 3250 DN100
DEF32-150 15.0 Dia. 2800 * H 3550 DN100
DEF32-200 20.0 Dia. 3200 * H 3750 DN125



Defluorination Mechnical Tank Water Filter CS With Rubber Liner 1.0 Mpa 36 m3/H
