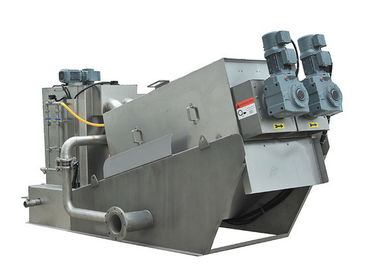

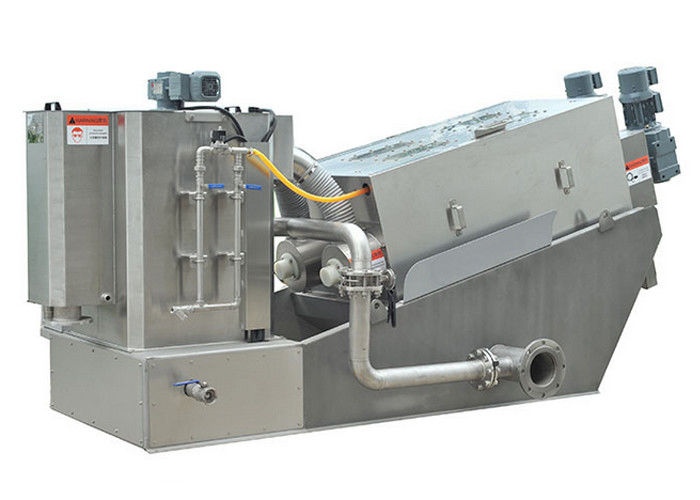

Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth

Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth

    • Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth
    • Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth
  • Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001 QMS / ISO14001
    Model Number: KD252

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD2500 - USD10000
    Packaging Details: wooden case
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, , T/T, D/P
    Supply Ability: 20 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Multi Disc Sludge Dehydrator Concentration: 2000 - 50000 Mg/L
    Dry Sludge DS: 90- 180 Kg / H Feed Reducer Motor: 0.75 Kw X 1
    Agitator Reducer Motor: 0.18 Kw Flush Pump: 2 Kg / Cm2
    Flush Water Flow: 43 L/h DS Water Content: 75 - 80 %
    High Light:

    industrial filter press

    ,

    fully automatic filter press

    Multi disc screw press dehydrator for oily sludge treatment or DAF floth


    Description



    The volue dewatering press performance, is enhanced by removing clogging. Its unique volute technology, allows dewatering sludge while automatically self cleaning the filter mesh. This enables stable and constant dewatering without depending on flush water for clogging prevention.



    Features:

    • The dewatering body is formed by a screw axis with fixing and moving plates overlapping, as the inner diameter of screw axis is larger than the moving plate, the moving plate do the circular motion with the screw axis to prevent clogging, to ensure the continuous operation
    • Municipal wastewater, papermaking wastewater, chemical waste water, food and beverage processing waste water, industrial wastewater, papermaking wastewater, pharmaceutical wastewater, oil processing and mining wastewater, etc.
    • Comparing with the traditional belt, plate& frame and centrifugal machine,volute sludge dewatering machine adopts integrated design of dehydration ontology, flocculation mixing tank and electric control device, convenient installation , small area cover, strong compatibility with ancillary equipment, greatly reduce design and the construction cost, at the same time, no need to undertake civil construction as its exquisite design.
    • Can realise 24 hours automatic unmanned operation by PLC remote control , reduce the operating personnel employment and maintenance costs. At the same time, due to the exquisite design, easy operation, it is easy to learn as no special knowledge and skilled technical complex requirements.
    • Main body can self-cleaning due to the special structure, threr is no need to use a lot of water for cleaning to prevent clogging. Compared with the same capacity of dewatering machine, screw rinse water consumption is only 1% of belt . The rotation speed of screw shaft is 2-5 turn/min , low power consumption. Power consumption is only 5% of the centrifuge, at the same time, no noise during operation as slow rotation speed and intermittent flush.

    Sludge treatment process:

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 0

    Flow diagram

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 1

    Layout

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 2



    Specification

    Model DS treatment capacity(DS.KG/H) Slurry Flow rate (M³/h)
    10000mg/l 20000mg/l 25000mg/l 50000mg/l
    (low concentration) (High concentration)
    KTDL131 5 10 0.5 0.5 0.4 0.2
    KTDL132 10 20 1 1 0.8 0.4
    KTDL251 15 30 1.5 1.5 1.2 0.6
    KTDL252 30 60 3 3 2.4 1.2
    KTDL301 30 60 3 3 2.4 1.2
    KTDL302 60 120 6 6 4.8 2.4
    KTDL303 90 180 9 9 7.2 3.6
    KTDL304 120 240 12 12 9.6 4.8
    KTDL351 50 100 5 5 4 2
    KTDL352 100 200 10 10 8 4
    KTDL353 150 300 15 15 12 6
    KTDL354 200 400 20 20 16 8
    KTDL401 80 160 8 8 6.4 3.2
    KTDL402 160 320 16 16 12.8 6.4
    KTDL403 240 480 24 24 19.2 9.6
    KTDL404 320 640 32 32 25.6 12.8



    Advantages

    • Direct dewatering from oxidation ditch

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 3

    • Widely application range

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 4

    • Clog free

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 5

    • Continuously operation

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 6

    • Save running cost

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 7

    • Contactless structure, less worn out

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 8

    • Minimal initial investment

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 9

    • Oily sludge treatment

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 10

    • Small foot print

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 11

    Options

    The Sludge Dewatering Press offers a completely operational, skid mounted and self-contained system which can include:
    • Screw Press
    • PLC Controls
    • Sludge Pumps
    • Back Wash System
    • Flocculation System
    • Polymer Dosing Unit
    • Sludge Cake Conveyor



    Production line

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 12

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 13



    Applications

    Municipal sewage petro refining leather making printing and dyeing paper paper & pulp
    coalification dressing biochemical pharmacy steel pickling chemicals
    sugar food processing food & beverage mining sludge treatment

    Multi Disc Plate And Frame Filter Press Dehydrator For Oily Sludge Treatment Or DAF Floth 14



    Competitive advantage

    Multi-Disk Screw Press is a cutting edge sludge dewatering equipment with non-clogging design and low energy consumption, especially applicable for oily sludge.
