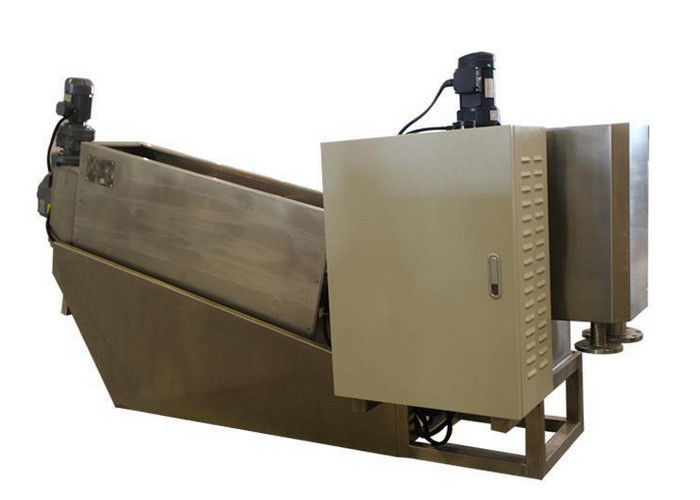

Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry

Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry

    • Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry
    • Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry
  • Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001 QMS / ISO14001
    Model Number: MDS251

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD2500 - USD10000
    Packaging Details: wooden case
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, , T/T, D/P
    Supply Ability: 20 pieces per month
    Contact Now
    Detailed Product Description
    Type: Multi Disc Screw Press Concentration: 2000 - 50000 Mg/L
    Dry Sludge DS: 30 Kg / H Feed Reducer Motor: 0.75 Kw X 1
    Agitator Reducer Motor: 0.18 Kw Flush Pump: 2 Kg / Cm2
    Flush Water Flow: 43 L/h DS Water Content: 75 - 80 %
    High Light:

    industrial filter press

    ,

    fully automatic filter press

    Stainless multi disc screw press for sludge dewatering in oily food industry



    The multi disk screw press, is clog free and can reduce the sedimentation tank and sludge thickening tank, reduce the cost of sewage plant construction. The MDS use screw and the moving rigns to self clean, this is an ideal replacement of traditional plate and frame filter press, belt filter press and diaphragm filter press. Machine runs at low speed, hence less power and water consumption by constrast to the centrifuge type. .


    Description

    The device is mainly used for sludge dewatering, the moisture content of sludge after dehydration can be down to 75% - 85%.
    Volute sludge dewatering machine integrates full automatic control cabinet, flocculation conditioning tank, concentrated sludge dewatering ontology and collecting tank, can realise high efficiency flocculation under the condition of fully automatic operation, ensure continuous enrichment and squeezing sludge dewatering work, eventually collect the filtrate or discharge.



    Features:

    • The dewatering body is formed by a screw axis with fixing and moving plates overlapping, as the inner diameter of screw axis is larger than the moving plate, the moving plate do the circular motion with the screw axis to prevent clogging, to ensure the continuous operation
    • Municipal wastewater, papermaking wastewater, chemical waste water, food and beverage processing waste water, industrial wastewater, papermaking wastewater, pharmaceutical wastewater, oil processing and mining wastewater, etc.
    • Comparing with the traditional belt, plate& frame and centrifugal machine,volute sludge dewatering machine adopts integrated design of dehydration ontology, flocculation mixing tank and electric control device, convenient installation , small area cover, strong compatibility with ancillary equipment, greatly reduce design and the construction cost, at the same time, no need to undertake civil construction as its exquisite design.
    • Can realise 24 hours automatic unmanned operation by PLC remote control , reduce the operating personnel employment and maintenance costs. At the same time, due to the exquisite design, easy operation, it is easy to learn as no special knowledge and skilled technical complex requirements.
    • Main body can self-cleaning due to the special structure, threr is no need to use a lot of water for cleaning to prevent clogging. Compared with the same capacity of dewatering machine, screw rinse water consumption is only 1% of belt . The rotation speed of screw shaft is 2-5 turn/min , low power consumption. Power consumption is only 5% of the centrifuge, at the same time, no noise during operation as slow rotation speed and intermittent flush.

    Sludge treatment process:

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 0

    Flow diagram

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 1

    Layout

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 2



    Specification

    Model DS treatment capacity(DS.KG/H) Slurry Flow rate (M³/h)
    10000mg/l 20000mg/l 25000mg/l 50000mg/l
    (low concentration) (High concentration)
    KTDL131 5 10 0.5 0.5 0.4 0.2
    KTDL132 10 20 1 1 0.8 0.4
    KTDL251 15 30 1.5 1.5 1.2 0.6
    KTDL252 30 60 3 3 2.4 1.2
    KTDL301 30 60 3 3 2.4 1.2
    KTDL302 60 120 6 6 4.8 2.4
    KTDL303 90 180 9 9 7.2 3.6
    KTDL304 120 240 12 12 9.6 4.8
    KTDL351 50 100 5 5 4 2
    KTDL352 100 200 10 10 8 4
    KTDL353 150 300 15 15 12 6
    KTDL354 200 400 20 20 16 8
    KTDL401 80 160 8 8 6.4 3.2
    KTDL402 160 320 16 16 12.8 6.4
    KTDL403 240 480 24 24 19.2 9.6
    KTDL404 320 640 32 32 25.6 12.8



    Options

    The Sludge Dewatering Press offers a completely operational, skid mounted and self-contained system which can include:
    • Screw Press
    • PLC Controls
    • Sludge Pumps
    • Back Wash System
    • Flocculation System
    • Polymer Dosing Unit
    • Sludge Cake Conveyor



    Production line

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 3

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 4



    Applications

    Municipal sewage petro refining leather making printing and dyeing paper paper & pulp
    coalification dressing biochemical pharmacy steel pickling chemicals
    sugar food processing food & beverage mining sludge treatment

    Stainless Multi Disc Screw Press For Sludge Dewatering In Oily Food Industry 5



    Competitive advantage

    Multi-Disk Screw Press is a cutting edge sludge dewatering equipment with non-clogging design and low energy consumption, especially applicable for oily sludge.
