    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: NSF/ISO9001/SGS
    Model Number: 108TPH

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 100 sets per monthy
    Detailed Product Description
    Diameter: 2300 Mm Operate Pressure: < 0.6 Mpa
    Material Of Construction: Carbon Steel With Rubber Liner Flow Velocity: 8-10 M/h
    Inlet SS: < 5mg/L Air Wash Consumption: 18-25L/m2.S
    Backwash: Automatic Backwash Duration: 10-15 Mintues
    Forwardwash Duration: 10-15 Minutes Air Wash: By Roots Blower



    Manganese Sand Filter FRP Pressure Tanks Reverse Osmosis Pressure Tank For Iron Removal



    Introduction

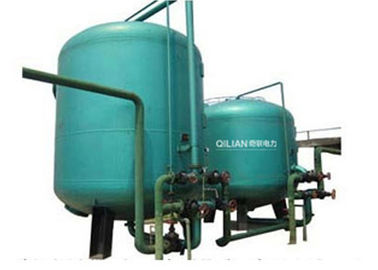

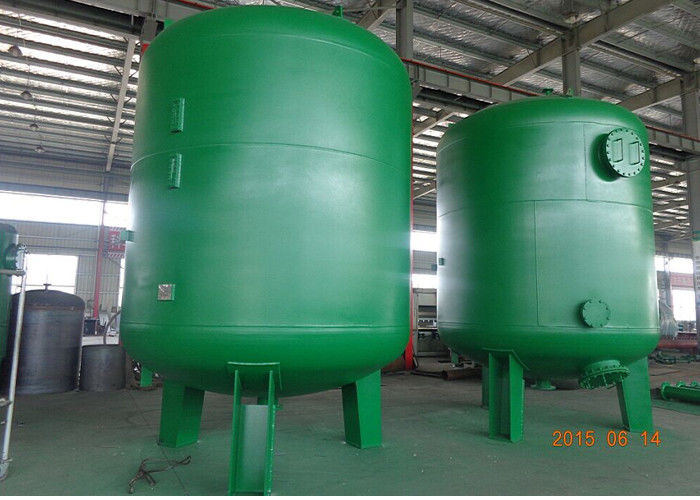

    The Manganese sand pressure filter are filled with maganese sand, it can used for removing  iron, suspended solids, particles, sediment, turbidity, unpleasant tastes and odors, unwanted color, or the common contaminants from surface water. It's widely used in water purification, waste water treatment, demineralization water, pretreatment for RO/UF/NF, etc.



    Technical advantage

    • Robust design, mild steel with internal rubber liner and anticorrosion surface treatment

    • Proven process and most tested forms of water treatment

    • Systems are robust with no moving parts inside the tanks

    • Built-in control, forward and backwash piping and connection port

    • Suitable with various filtration media

    • Easily cleaned and maintained

    • Resistant to fouling (clogging)

    Specification:

    Model

    Capacity

    (t/h)

    Φ mm Φ1 mm H mm H1 mm H2 mm B mm

    Inlet

    DN

    BW outlet FW outlet

    Media

    (kg)

    101B 3-7 600 500 2300 800 1200 500 40-50 80 40-50 270
    201B 7-12 800 600 2450 900 1200 550 50-65 100 50-65 470
    301B 12-20 1000 750 2500 900 1200 650 65-80 125 65-80 710
    401B 20-28 1200 900 2650 950 1300 750 80-100 125 80-100 1070
    501B 28-38 1400 1100 2800 1000 1350 850 80-125 150 80-125 1420
    601B 38-50 1600 1300 2900 1000 1350 950 100-125 150 100-125 1860
    701B 50-64 1800 1450 3200 1000 1400 1200 100-150 200 100-125 2350
    801B 64-78 2000 1650 3300 1200 1600 1250 125-150 200 125-150 2910
    901B 78-123 2500 2100 3600 1200 1600 1500 125-200 250 25-200 4540
    902B 123-175 3000 2600 3850 1300 1700 1800 150-200 250 150-200 6540
