Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4" - 8" thread

Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4" - 8" thread

    • Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4" - 8" thread
    • Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4" - 8" thread
  • Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4" - 8" thread

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: NSF/ISO9001/SGS
    Model Number: JD325

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 4-6 weeks
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Hub And 6 Laterals Riser Openings: 6
    Suitable Tank Dia.: 13" - 48" Connect: Thread
    Standard: NSF / ISO9001 / SGS Mount: Top Mount
    Model: JD325

    Hub and lateral for Bottom mount 6 laterals control valves 4" - 8" thread



    Specification

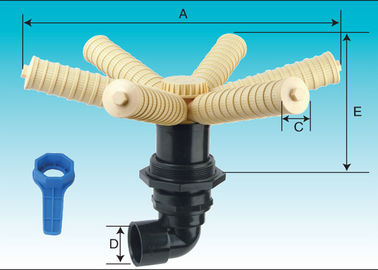

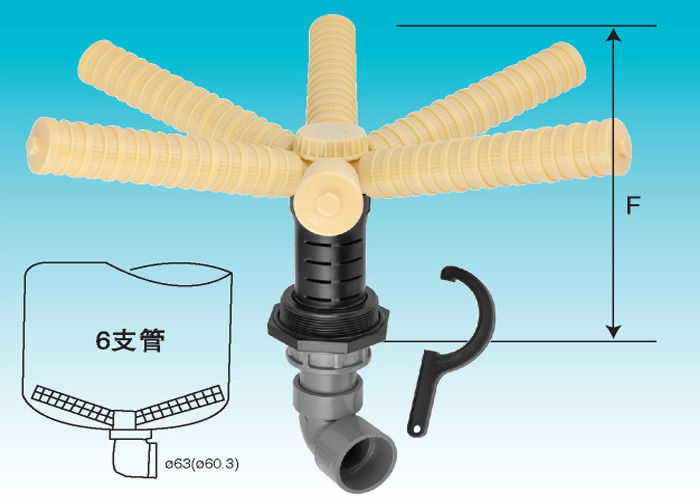

    Model A B C D E F Slot Tank Dia. Top opening
    JD325 235 99 53 63 / 60.3 198 221 0.2/0.25/0.4 13"-16"(350 - 400mm) 4" - 8" Thread
    JD319 350 161 53 63 / 60.3 215 238 0.2/0.25/0.4 18"-20" (450-50) 4" - 8" Thread
    JD320 465 223 53 63 / 60.3 232 255 0.2/0.25/0.4 24" ( DIA. 600mm) 4" - 8" Thread
    JD321 585 283 53 63 / 60.3 250 273 0.2/0.25/0.4 30" (DIA. 750mm) 4" - 8" Thread
    JD322 705 348 53 63 / 60.3 267 290 0.2/0.25/0.4 36"-40" (Dia 900-1000mm) 4" - 8" Thread
    JD323 825 416 53 63 / 60.3 280 303 0.2/0.25/0.4 48" (DIA. 1200mm) 4" - 8" Thread
    JD314 253 98 35 63 / 60.3 186 213 - 13"-16"(350 - 400mm) 4" - 8" Thread
    JD315 350 153 35 63 / 60.3 200 227 - 18"-20" (450-50) 4" - 8" Thread
    JD316 445 200 35 63 / 60.3 215 241 - 24" ( DIA. 600mm) 4" - 8" Thread
    JD317 590 281 35 63 / 60.3 235 261 - 30" (DIA. 750mm) 4" - 8" Thread
    JD318 680 327 35 63 / 60.3 245 272 - 36"-40" (Dia 900-1000mm) 4" - 8" Thread
    JD331 835 406 35 63 / 60.3 262 289 - 48" (DIA. 1200mm) 4" - 8" Thread



    Riser pipe openning options:

    - Solvent welded

    - F NPT / BSP thread



    Description

    The top mount hub and lateral systems are designed for use with top mount water softeners or filter valves. The top

    mount hub and lateral series is designed to accommodate 14" - 36" diameter fiberglass mineral tanks with 4" - 6" top

    openings. The top mount hub and lateral series consists of an ABS hub and 8-PVC slotted laterals with ¾" threaded

    adapters. The hub is available with a number of openings to accommodate different riser pipe diameters. To install,

    simply solvent weld or thread the riser pipe into the hub and insert it into the tank through the top opening. Thread the

    laterals into the hub and extend the hub and laterals to the bottom of the mineral tank..



    Applications:



    Residential tanks (Dia.: 6"-13”)

    Water filter, water softener

    Commercial tank (Dia.: 14"-24”)

    Water filter, water softener, prefilter for water treatment and storage

    Industrial tanks (Dia.: 30"-63”)

    Water filter, water softener, prefilter for water treatment and storage



    Competitive advantage

    We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
