Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L

Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L

    • Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
    • Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
  • Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: JH800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: wooden pallet
    Delivery Time: 6-8 weeks
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 10 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Bottom Feed Multi Bag Filter Model: JH800
    Tower Capacity: 3200L Tower Body Height: 7500mm
    Condensing Area: 45m2 Cooling Area: 8m2
    Concentration: >90% Recovery Capacity: 600 Kg/h - 620kg/h

    Bottom feed multi bag filter vessels for alcohol recycle tower 3200L



    Specifications:

    • Material of construction: 304ss / 316L
    • Tower volume: 640L - 3200L
    • Tower height: 6000mm - 7500mm
    • Condensing area: 5m2 - 45 m2
    • Cooling area: 1 - 8 m2
    • Heat exchange area: 1.5 - 26m2
    • Recovery capacity: (kg/h): 45 kg/h to 620kg/h
    • Recovery concentration: >90%
    • Packing stuff material: ceramic or SS moire packing material
    • Vessel type: outside

    Description:

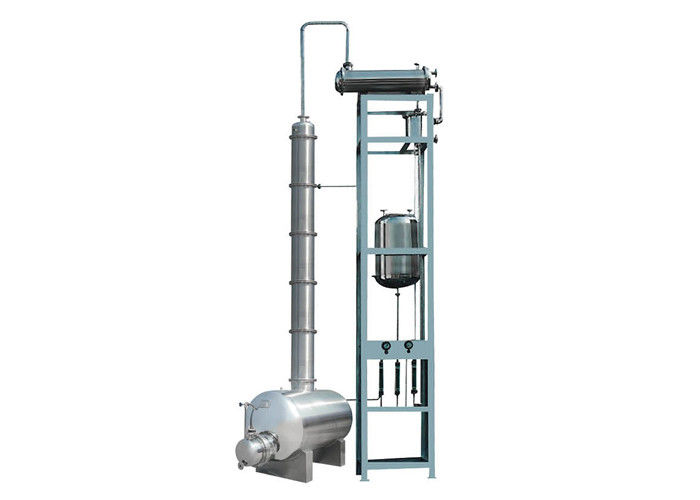

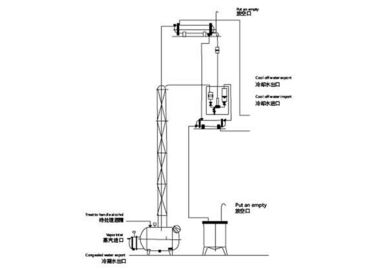

    The alcohol recycle tower is consisted of six parts: tower kettel, tower body, condenser, cooler, buffer and high-position storage container, suitable for diluted alcohol recycle in such industries as pharmacy, food, light industry and chemicals. The wet part of the device and the material is made of SUS304 stainless steel, with high corrosion resistance and the advantages of energy saving, pollution control, low manufacture cost and high efficiency. The device can vaporize the diluted alcohol of 30℃ to 95℃ , The residue discharge meets the request to pollution control. . The device adopts high efficient stainless ripple filling. The part contacting the material is made of the stainless steel, compliance to GMP standard.



    Technical data sheet:

    Parameters JH200 JH300 HJ400 JH500 JH600 JH800
    Tower capacity ( L ) 640 1220 1450 2300 2500 3200
    Tower body height ( mm ) 6000 7000 7000 7000 7500 7500
    Condensing area ( ㎡ ) 5 9 12 18 25 45
    Cooling area ( ㎡ ) 1 1.5 2 4 6 8
    Heat exchange area ( ㎡ ) 1.5 4 6.5 10 15 26
    Recovery capacity ( kg/h ) 45 -50 90 -100 150 -160 230-250 350-400 600-620
    Recovery concentration ( % ) > 90%
    Packing material Ceramic or SS moire packing material
    Vessel type Outside
    Dimensions L ( mm ) 2300 2600 2800 3000 3500 4200
    Dimensions D ( mm ) 700 800 1000 1200 1400 1800
    Dimensions H ( mm ) 7300 7500 9000 9000 10000 14000



    Applications:

    Contracting and recycling the medicine / pharmaceuticals and alcohol sediment.



    Competitive advantage

    Professional skills, high-tech equipment ensure we can provide the best and high quality products.

    Our compact work process and years of professional experience, enable us to offer you reasonable

    price and perfect after sale service
