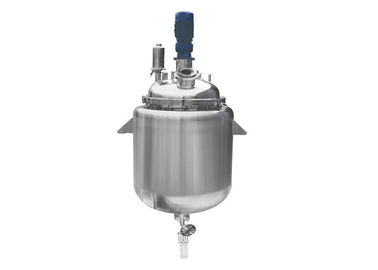

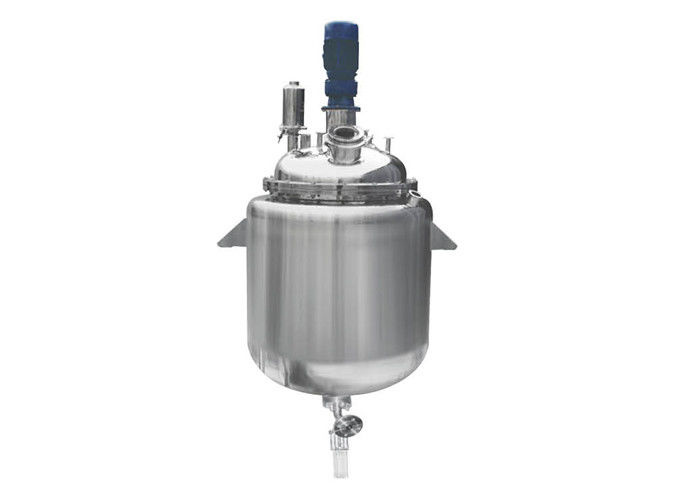

Stainless steel Crystallizing tank Cartridge Filter Vessels for fine chemicals / pharmacy industry 8000L

Stainless steel Crystallizing tank Cartridge Filter Vessels for fine chemicals / pharmacy industry 8000L

Stainless steel Crystallizing tank Cartridge Filter Vessels for fine chemicals  / pharmacy industry 8000L

Product Details:

Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: CG-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden pallet
Delivery Time: 6-8 weeks
Payment Terms: T/T, L/C, D/P
Supply Ability: 10 pieces per month
Contact Now
Detailed Product Description
Product Name: Crystallizing Tank Model: CG
Volume: 30L To 32000L Inner Core Dia.: 400mm - 3000mm
Jacket Cover Dia.: 500mm - 3200mm Motor Power: 0.6kw - 37kw
Reducer Model: M2 RPM Of Mix Motor: 60-36 Rpm / 50-100rpm

Stainless steel Crystallizing tank for fine chemicals and pharmacy industry 8000L



Specifications:

  • Material of construction: 304ss / 316L
  • Volume: 30L - 32000L
  • Inner core Diameter: 400mm - 3000mm
  • Jacket cover Diameter: 500mm - 3200mm
  • Power of mix motor: 37kw
  • Reducer model: BLB450-11-45
  • RPM of mix motor: 50-100rpm

Description:

The crystallizing tank is made of SS304 or 316L stainless steel. The inner wall adopts electronic mirror polishing or mechanical polishing. The outer wall adopts SS304 completely welding structure for heat preservation. The exterior surface finish is mirror polished or semi-luster polishing. A 0.2um ventilation hydrophobic filter is installed on the crystallization tank. The crystallizating tank can endure 121℃ high temperature sterillization, equipped with sanitary pressure meter. The outside connection of the tank body adopts sanitary rapid open connector. The crystallizing tank is equipped with temperature monitoring device, 2 sight glass, cleaning ball and nitrogen inlet. The shaft seal adopts special sanitary mechanical seal to guarantee the material no pollution. The crystallizing tank can adopt frequency change speed control device and the rotation speed of mixing shaft has wide regulation range.



Technical data




Volume

 (L)

Core Dia.

(mm)

Jacket Cover

Dia (mm)

Motor

power

Reducer

model

RPM
30 400 500 0.6-1.1 M2 60-120
50 500 600 0.6-1.1 M3 60-120
100 550 650 1.1-1.5 M4 60-120
150 600 700 2.2 M6 60-120
200 650 750 2.2 M6 60-120
300 800 900 2.2 M6 60-120
500 900 1000 2.2 M6 60-120
800 1100 1200 4 M8 60-120
1000 1200 1300 4 M8 60-120
1500 1300 1400 4 M8 60-120
2000 1400 1500 4 M8 60-120
2500 1400 1500 7.5 BLB7.5-4-13 60-120
4000 1500 1600 7.5 BLB7.5-4-13 60-120
8000 2000 2100 15 BLB7.5-4-13 60-120
32000 3000 3200 37 BLB450-11-45 60-120













































Competitive advantage



Professional skills, high-tech equipment ensure we can provide the best and high quality products.

Our compact work process and years of professional experience, enable us to offer you reasonable

price and perfect after sale service
