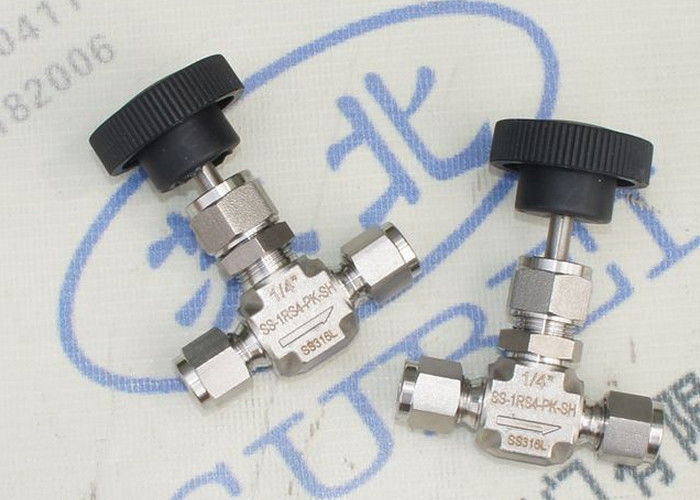

Die forging Cutting ferrule grooved piping system needle valve for pulp paper making

Die forging Cutting ferrule grooved piping system needle valve for pulp paper making

    • Die forging Cutting ferrule grooved piping system needle valve for pulp paper making
  • Die forging Cutting ferrule grooved piping system needle valve for pulp paper making

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/ISO
    Model Number: YZF4-9N

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 pieces
    Price: negotiable
    Packaging Details: carton and pallet
    Delivery Time: 2 to 3 weeks
    Supply Ability: 100000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Cutting Ferulle Needle Valve YZF4-9N Model: YZF4-9N
    Diameter: 2mm To 32mm Pressure Rating: PN0.6 Mpa To PN120 Mpa
    Temperature Range: -190 ℃ To 220 ℃ ( 70 ℃ To 570 ℃ ) Material: 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51
    Standards: GB / JB / ANSI / HG / API / DIN Media Type: Water, Oil, Gas, Many Types Of Liquid Fluid Media
    End Port Connect: Cutting Ferrule
    High Light:

    water stop valve

    ,

    grooved piping system

    Die forging Cutting ferrule needle valve for pulp paper making PN0.6 Mpa to PN120 Mpa DN2 to DN32



    Specifications

    • Pressure rating: PN0.6 - 120Mpa
    • Cutting Ferrule pipe diameter: 2mm -32mm
    • Temperature range: -190 ℃ to 220 ℃ (or 70  ℃ to 570 ℃ )
    • Suitable fluid media: oil, water, gas and many other corrossive or non-corrosive liquid fluid
    • Material of construction: 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51
    • Flow direction: bi-direction
    • Driven: manually driven
    • End Port connection: cutting ferrule
    • Standards: GB / JB / ANSI / HG / API / DIN
    No. Port Diameter Pressure range PN (MPa)

    Pipe OD

    (D0)

    Pipe OD

    (D1)

    H1 (mm)

    H2

    (mm)

    L

    (mm)

    1 DN5mm to DN65 mm PN0.6 Mpa to PN80 Mpa 6 6 64 70 70
    2 DN5mm to DN65 mm PN0.6 Mpa to PN80 Mpa 8 8 64 70 70
    3 DN5mm to DN65 mm PN0.6 Mpa to PN80 Mpa 8 6 64 70 70



    Description

    No end to applications of pipe fittings, so long no end to the applications of pipes . The list of piping applications continues to expand, its strength, flexibility, very good flow rates and high chemical resistance are qualities which are uniquely suited for the movement or transfer of liquids, steam, solids and air from one point to another. With piping, pipe fittings have many other uses like as follows:

    • The transfer of extremely hazardous materials such as chemical and waste.
    • Protection of sensitive equipment from high pressures.
    • Protection from corrosion and other extreme weather conditions.
    • Resistance to household and industrial chemicals.

    Applications

    • Chemical / Petrochemical
    • Municipal
    • Food, Beverage, and Dairy
    • Oil and Gas
    • Power
    • Process Instrumentation
    • Pulp and Paper
    • Semiconductor
    • Marine & dredging
    • Sanitation
    • Irrigation
    • Residential
    • Road & highway construction
    • Ventilation etc

    Competitive advantage

    • AutoCAD is used to design products and optimize structures
    • Cast Process Design by by Castsoft CAD and CAE

    • Strict Manufacturing Process control

    • Quality Control Of The Casting Material

    • Metal Material Laboratory for test of compositional, metallographic & mechanical property

    • Perfect apperance
