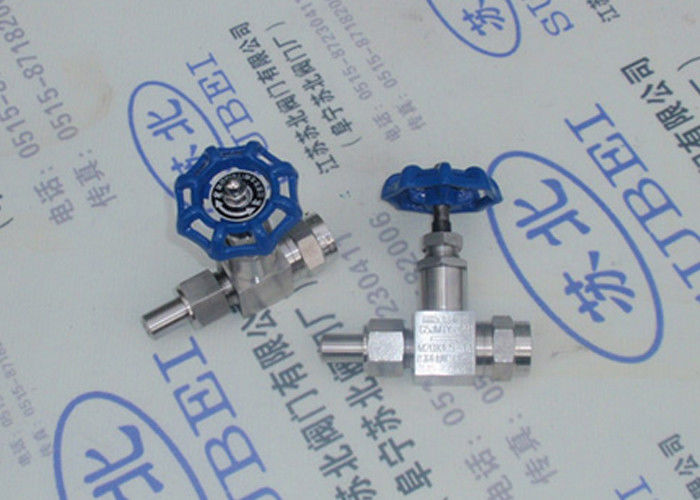

Globe valve for getting pressure Grooved Piping Systems PN0.6 Mpa to PN80 Mpa

Globe valve for getting pressure Grooved Piping Systems PN0.6 Mpa to PN80 Mpa

    • Globe valve for getting pressure  Grooved Piping Systems PN0.6 Mpa to PN80 Mpa
  • Globe valve for getting pressure  Grooved Piping Systems PN0.6 Mpa to PN80 Mpa

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ANSI/AWWA/ASTM/ANSI/
    Model Number: YZF4-17A

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 pieces
    Price: negotiable
    Packaging Details: carton and pallet
    Delivery Time: 2 to 3 weeks
    Supply Ability: 100000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Stop Valve YZF4-15A Model: YZF4-15A
    Diameter: DN5 Mm Pressure Rating: PN0.6 Mpa To PN80 Mpa
    Temperature Range: -190 ℃ To 220 ℃ ( 70 ℃ To 570 ℃ ) Material: 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51
    Standards: ANSI / ASME / BSP / DIN Media Type: Water, Oil, Gas, Many Types Of Liquid Fluid Media
    End Port Connect: Thread F NPT / BSP / DIN
    High Light:

    high pressure needle valve

    ,

    grooved piping system

    Globe valve for getting pressure  PN40 Mpa DN5 mm



    Specifications

    • Pressure rating: PN0.6 - 80Mpa
    • Cutting Ferrule pipe diameter: 2mm -50mm
    • Temperature range: -190 ℃ to 220 ℃ (or 70  ℃ to 570 ℃ )
    • Suitable fluid media: oil, water, gas and many other corrossive or non-corrosive liquid fluid
    • Material of construction: 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51
    • Flow direction: bi-direction
    • Driven: manually driven
    • End Port connection: cutting ferrule
    • Standards: ANSI/AWWA/ASTM/ANSI
    No Pipe Diameter Pressure range End port nut D1 End port nut D2 H1 H2 L
    1 DN5mm PN40 Mpa M20x1.5 M20x1.5 82 88 96
    2 DN5mm PN40 Mpa Left G1/2" 82 88 100



    Description

    No end to applications of pipe fittings, so long no end to the applications of pipes . The list of piping applications continues to expand, its strength, flexibility, very good flow rates and high chemical resistance are qualities which are uniquely suited for the movement or transfer of liquids, steam, solids and air from one point to another. With piping, pipe fittings have many other uses like as follows:

    • The transfer of extremely hazardous materials such as chemical and waste.
    • Protection of sensitive equipment from high pressures.
    • Protection from corrosion and other extreme weather conditions.
    • Resistance to household and industrial chemicals.

    Materials used:

    • Gun Metal
    • Cast Steel
    • Stainless Steel
    • Cast Iron
    • Alloy Steel
    • Brass
    • Bronze
    • Aluminum
    • Zirconium
    • Plastic etc.

    Applications

    • Chemical / Petrochemical
    • Municipal
    • Food, Beverage, and Dairy
    • Oil and Gas
    • Power
    • Process Instrumentation
    • Pulp and Paper
    • Semiconductor
    • Marine & dredging
    • Sanitation
    • Irrigation
    • Residential
    • Road & highway construction
    • Ventilation etc

    Competitive advantage

    • AutoCAD is used to design products and optimize structures
    • Cast Process Design by by Castsoft CAD and CAE

    • Strict Manufacturing Process control

    • Quality Control Of The Casting Material

    • Metal Material Laboratory for test of compositional, metallographic & mechanical property

    • Perfect apperance
