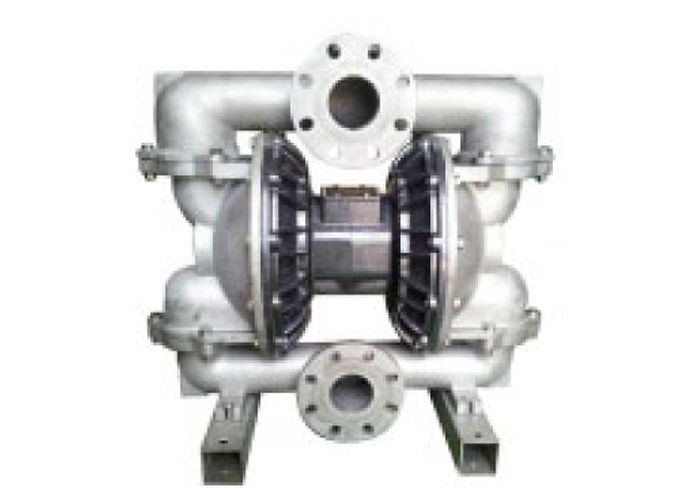

Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm suction height 5m

Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm suction height 5m

    • Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm suction height 5m
    • Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm suction height 5m
  • Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm suction height 5m

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS/QS
    Model Number: RD80SS

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: Negotiable
    Packaging Details: carton
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 5000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: Pneumatic Diaphragm Pump RD80SS Pressure: 100psi / 6.89bar / 0. 7Mpa
    Max Flow Rate: 265gpm / 1041L/min Max Suction Head: 5m
    Max Grain: 10mm Air Inlet/outlet Port Size: 3/4" FNPT
    Fluid Inlet/outlet Port Size: 3" FNPT , BSP Material Of Construction: Stainless Steel

    Stainless steel pneumatic diaphragm pump for chemical injection process 265gpm 1041L/min suction height 5m

    Specification

    Max.working Pressure 100psi ( 0.7Mpa , 7bar )
    Max.flow Rate 265 gpm ( 1041 lpm )
    Max.reciprocating Speed 135cpm
    Max.suction Height 5m
    Max.permitted Grain 10mm
    Max air Consumption 325scfm ( 9.1m³/min )
    Air Inlet Size 3/4in.npt ( f )
    Air Outlet Size 3/4in.npt (f)
    Fluid Inlet Size 3 in.npt(f)
    Fluid Outlet Size 3 in.npt(f)
    Weight Aluminum: 77.0kg , Stainless steel: 110.00kg


    Descriptions

    A single piece polypropylene center section for increased reliability and chemical compatibility, plus high-reliability modular air valve. The overmolded frame for improved reliability and will help to eliminate fluid leakage and new generation of diaphragm design that increases flow with flow rates up to 265 gpm (1004 lpm) - making it one of the most efficient pumps on the market.

    • Self priming
    • Dry proof
    • High suction capacity
    • No electric components
    • Discharge outlet with protection
    • Solid external sturcture
    • Vast compatibility of fluid media
    • Reduced internanal volume minimize the waste and easily clean
    • Stainless steel bolt are corrosion resistant, and offer you reasonable positioing and conveniently reassemble
    • Unique designed three way control valve ensure no block operation, easily parts maintenance, no need lubrication for air pipeline
    • Worn resistance parts ensures precisely positioning of stem and fast replacement

    Applications:

    Waste water treatment, sludge, screening

    Effluent treatment plant

    Pharmaceutical feeds, transfer

    Automotive wash, lube, oil

    Ceramics mix & cast, glaze

    Chemical injection, process

    Pulp & paper batching, bleaching

    Construction coating, dewatering

    Food processing transfer, packaging

    Marine bilge, cleaning

    Mining utility, dewatering

    Oil & gas transfer, clean up



    Comptetitve advantage

    The air-driven double diaphragm transfer pumps. No electrical components are required because the  pumps are

     air-driven. RD series pumps are run-dry safe and self-priming. The pump capacity can be controlled by changing

     the pressure in the air supply. The air control is designed for oilfree operation. The RD series pumps are ideally

    suited for the transport of liquid chemicals. It transports media at up 6,700 l/h and up to a discharge lift of 70 m.

     As the pump capacity is highly dependent on the back pressure, the performance curve must always be observed.

    At the sametime, the differential pressure between the hydraulic and pneumatic sides should not exceed 2 bar.

     Higher values reduce the service life of the pump. When selecting pumps, check the material compatibility.

    In addition, consider the density, viscosity and temperature of the transported medium.
