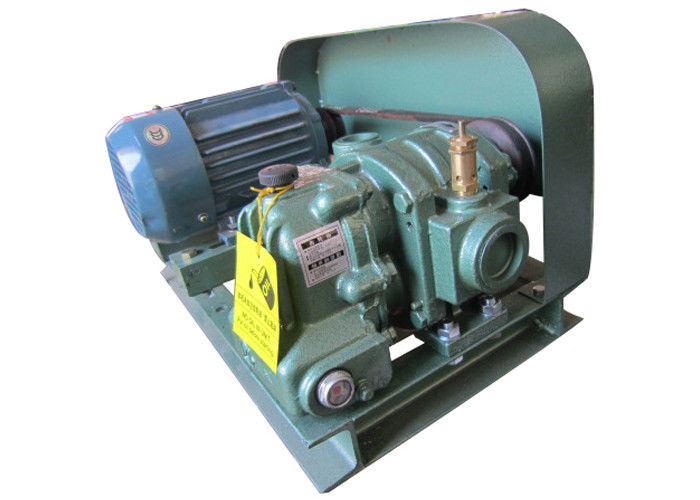

9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration

9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration

    • 9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration
    • 9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration
  • 9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO9001/SGS
    Model Number: LBSR32

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 2-3 weeks
    Payment Terms: L/C, T/T, D/P
    Contact Now
    Detailed Product Description
    Product Name: Roots Blower Model: LBSR32
    Port Size: DN32 32mm Silencer: Horizontal , Vertical
    Connect: Pulley Belt Application: Pressure Roots Air Blower
    Pressure Rating: 9.8kpa To 58.8kpa ( 0.10 Bar To 0.60 Bar

     9.8kpa Pressure 3 lobe Roots blower for non corrosive gas transfer nitrogen regeneration blower  Port size DN32 1 1/4"



    Specifications:

    Model Speed
    RPM
    Unit Pressure data
    bar 0.10  0.15  0.20  0.25  0.30  0.35  0.40  0.45  0.50  0.55  0.60
    kpa 9.8 14.7 19.6 24.5 29.4 34.3 39.2 44.1 49 53.9 58.8

    L

    B

    S

    R

    3

    2

    (3

    2

    m

    m)

    2000 Q (m3/min) 0.68  0.67  0.66  0.65  0.64  0.62  0.61  0.60  0.58  0.57  0.55
    N (kw) 0.40  0.40  0.40  0.55  0.55  0.55  0.75  0.75  0.75  0.75  1.10
    2150 Q (m3/min) 0.73  0.72  0.71  0.70  0.68  0.67  0.66  0.64  0.63  0.61  0.59
    N (kw) 0.40  0.40  0.55  0.55  0.55  0.75  0.75  0.75  1.10  1.10  1.10
    2250 Q (m3/min) 0.76  0.76  0.75  0.73  0.72  0.70  0.69  0.67  0.66  0.64  0.62
    N (kw) 0.40  0.40  0.55  0.55  0.75  0.75  0.75  1.10  1.10  1.10  1.10
    2350 Q (m3/min) 0.80  0.79  0.79  0.77  0.75  0.73  0.72  0.70  0.69  0.67  0.64
    N (kw) 0.40  0.55  0.55  0.55  0.75  0.75  1.10  1.10  1.10  1.10  1.10
    2450 Q (m3/min) 0.83  0.82  0.81  0.80  0.78  0.76  0.74  0.73  0.72  0.70  0.67
    N (kw) 0.40  0.55  0.55  0.75  0.75  0.75  1.10  1.10  1.10  1.10  1.10
    2550 Q (m3/min) 0.86  0.86  0.85  0.83  0.81  0.79  0.78  0.76  0.74  0.72  0.70
    N (kw) 0.40  0.55  0.75  0.75  0.75  1.10  1.10  1.10  1.10  1.10  1.50
    2650 Q (m3/min) 0.90  0.89  0.88  0.86  0.84  0.82  0.81  0.79  0.77  0.75  0.73
    N (kw) 0.40  0.50  0.75  0.75  1.10  1.10  1.10  1.10  1.10  1.50  1.50
    2800 Q (m3/min) 0.95  0.94  0.93  0.91  0.89  0.87  0.85  0.84  0.82  0.79  0.77
    N (kw) 0.55  0.55  0.75  1.10  1.10  1.10  1.10  1.50  1.50  1.50  1.23
    2900 Q (m3/min) 0.98  0.97  0.96  0.94  0.92  0.90  0.88  0.87  0.85  0.82  0.80
    N (kw) 0.50  0.75  0.75  1.10  1.10  1.10  1.10  1.50  1.50  1.50  1.50



    Description:

    1. Wide range for air volume, pressure and vacuum
    2. Stable air flow and less pressure variation
    3. Clean air and without oil dirt and/or particles
    4. Construction simple and easy to maintain
    5. Bearings are all lubricated with oil
    6. Lower energy consumption.
    7. Lower noise
    8. Longer bearing life
    9. Strict management of quality standards
    10. Our three-lobe design controls backflow pressure towards rotor so as to reduce energy consumption.

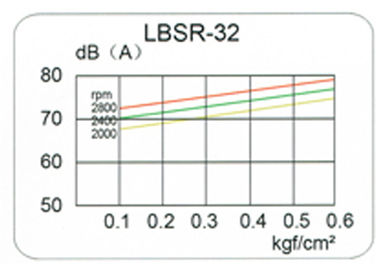

    11. Our new design can effectively reduce noise by approximately 5 dB.
    12. Fewer vibrations transmitted through the lobe increases bearing life by approximately 20%. Conventional blowers generate pressure pulses and vibrations which will diminish power and shorten the life of every bearing, gear and other drive train components.

    Applications:

    1. Pneumatic conveying
    2. Waste water treatment plants
    3. Electroplating tanks
    4. Printing
    5. Activated sludge systems.
    6. Vacuum handling systems.
    7. Drying systems.
    8. Absorption transporter (for high standards of hygiene)
    9. Filters.
    10. Hospitals and dentistry

    ​Typical application field

    9.8kpa Pressure 3 lobe roots blower for non corrosive gas transfer nitrogen regeneration



    Competitive advantage

    All our tri-lobe roots blower are built and checked annually following the strictest adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.
