Home ProductsUltrasonic Flow Meters

Residential Inline Ultrasonic Flow Meters LCD Irrigation Mass Flow Measurement

Residential Inline Ultrasonic Flow Meters LCD Irrigation Mass Flow Measurement

    • Residential Inline Ultrasonic Flow Meters LCD Irrigation Mass Flow Measurement
    • Residential Inline Ultrasonic Flow Meters LCD Irrigation Mass Flow Measurement
  • Residential Inline Ultrasonic Flow Meters LCD Irrigation Mass Flow Measurement

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
    Model Number: 006#

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 sets
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 3 weeks
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 sets per month
    Contact Now
    Detailed Product Description

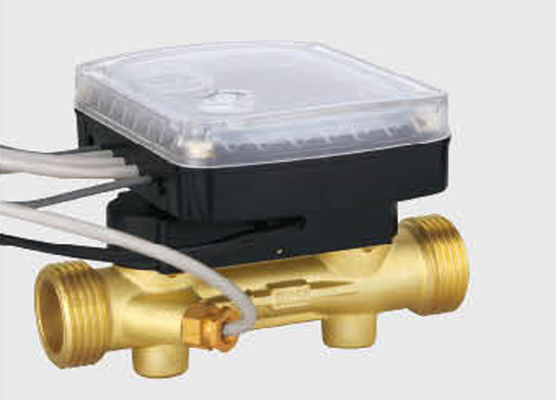

    Name: Ultrasonic Heat Water Meter Display: LCD
    Tube: Brass Type: Convection
    Pressure Rating: PN16 Up Zone: 2%
    Lower Zone: 5% Connect Port: Thread
    Power Supply: Lithium Battery Medium: Municipal Water
    High Light:

    magnetic flowmeter

    ,

    water flow meter

    Residential Inline Water Flow Meter LCD Irrigation Mass Flow Measurement

    Detailed Product Description
    Type: Inline Ultrasonic Flow Meter Display: LCD
    Transducer: Inline / Clamp On / Insert Accuracy: +/- 1%
    Communication: 4-20 MA / OCT Pulse / Relay Size: DN50-700
    Temperature: 90 C / 160 C Pipe Material: Weld Steel, Stainless Steel, Cast Iron, Copper / Brass, Cement Pipe, Aluminum




    Fixed Inline ultrasonic flowmeters by transit time multi-liquid velocity determine for slurry | effluent | sewage



    General of ultrasonic flow meters

    The UFM Ultrasonic flowmeters can determine the velocity of a fluid flowing in a pipe by sound waves. When it's in no flow conditions, an ultrasonic wave's frequencies are transmitted into a pipe and its reflections from the fluid are the same. When it's under flowing conditions, the frequency of the reflected wave is different due to the Doppler effect. When liquid media moves faster, the frequency shift increases linearly. The transmitter processes signals from the transmitted wave and its reflections to determine the flow rate.

    The transit time type ultrasonic flowmeters can give and receive ultrasonic waves between the transducers in both the upstream and downstream in the pipe. While it's under no flow conditions, it takes the same time to travel upstream and downstream between the transducers. While it's under flowing conditions, the upstream wave will travel slower and take more time than the (faster) downstream wave. When the fluid moves faster, the difference between the upstream and downstream times increases. The transmitter processes upstream and downstream times to determine the flow rate.



    Data sheet

    Accuracy <1%

    Flow rate 0 - 10m/s, bi-direction

    Pipe diameter DN32 - DN6000 mm

    Liquid temperature -30℃ - 160℃

    Liquid type water, sea water, sewage, effluent, oil, alcohol, any single liquid that can

    transmit ulstrasonic wave

    Pipe material stainless steel, cast iron, copper, PVC, aluminum, fiber glass steel

    Output one way 4-20mA, one way OCT pulse, one way replay

    Input three way 4-20mA, PT1000 platinum resistor for heat measurement

    Communication RS485, MODBUS

    Data storage SD card

    Power supply DC8-36V / AC85-264V

    Protection IP65 (main body), IP68 (transducer)

    Humidity <85% RH

    Ambient temperature -20℃ - 60℃



    Description:

    The ultrasonic flowmeter is available with pipe type, clamp on and other options, it's designed for linear and bi-directional volumetric flow measurement of liquid. The measured flow datas can be output by standard analog or pulse or frequency. Through HMI user friendly operator interface, the unit can be set up for a wide range of applications. Next to actual volumetric flow measurement, the unit can be configured to perform flow totalization ( plus, minus, or sum). Measurement and output of the liquid sonic velocity can be configured too.



    Optionally the unit can be set to perform one of the following additional functions:

    • Calculate and output corrected standard volumetric or mass flow using external pressure & temperature inputs
    • Batch function
    • Heat function, combining T1, T2 and volume

    Metering Diagram

    Flow measurement Heat measurement

    Fixed Inline Ultrasonic Flowmeters By Transit Time Multi - Liquid Velocity Determine

    Reference chart

    Type Model Pipe dia (mm) Temperature Dimension (mm)
    Clamp on TS-2 DN15-100 -30-90℃ 45x25x32
    TM-1 DN50-700 -30-90℃ 64x39x44
    TL-1 DN300-6000 -30-90℃ 97x54x53
    Clamp on (high temperature) TS-2-HT DN15-100 -30-90℃ 45x25x32
    TM-1-HT DN50-700 -30-90℃ 64x39x44
    TL-1-HT DN300-6000 -30-90℃ 97x54x53
    Insertion type TC-1 DN80-6000 -30-90℃ 190x80x55
    TC-2(lengthen) DN80-6000 -30-90℃ 335x80x55
    Pipe type G3 (π type) DN15-25 -30-160℃
    G2 DN32/DN40 -30-160℃
    G3 DN50-6000 -30-160℃





































    Optional temperature transducer

    Specification Model Dia Temp. Water cut Accuracy
    Clamp-on temp. transducer Pt100 CT-1 >DN50 -40-160℃ No 100+ 0.8℃
    Insertion temp. Transducer Pt100 TCT-1 Yes
    Insertion temp. Pt100 with pressure PCT-1 No
    Insertion temp.Pt100 for small pipe D SCT-1 <DN50 Yes

















    Industries

    • Chemicals
    • Petrochemicals
    • Oil & Gas
    • Heating, Ventilation & Air Conditioning (HVAC)
    • Power Plants
    • Water treatment

    Liquid type

    • Metering of cooling water
    • Demineralisedwater
    • Control of batching and blending operations
    • Mass flow measurement
    • Allocation measurement
    • District heating
    • Irrigation
    • Energy measurement

    Model Selection

    I Model
      YF Electromagnetic flowmeter
      TF Turbine
      VF Votex
      LX Vane wheel
      T Ultrasonic
        E/F display mode E: compact/local display, F: remote display
          Pipe Dia Type (mm)
          xxxx

    10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300,

    400, 500, 600, 800, 1000

          Code Accuracy
          1 + 0.5% FS
          2 + 1.0% FS
          3 + 0.2% FS
            Code Type
            N Converter: 12 / 24 VDC, pulse output
            A Transmitter: 24VDC, 4-20mA outpt
            B Intelligent, Lion battery, no local display
            G Smart, local display, 4-20mA output
            C1 Smart, local display, RS485
            C2 Smart, local display, HART
              Code Type
              S Carbon steel housing
              L Stainless steel housing
              G High pressure housing
              HL 316L electrode
              HTi Titanium electrode
              HTa Tantlum electrode
              HC Hastelloy-C electrode
              L1 Liquid media
              L2 Gas media
              P Pressure compensation
              T Temperature compensation
              PT Pressure&Temp. Compensation
              F PTFE liner
              X Rubber liner

    Sample: IYF-E-0100-1-C1-S-HL-L1-F,

    Magmeter, local display, Dia: 100mm, + 0.5%FS, carbon steel housing, smart, 4-20mA outpt,

    RS485, 316L electrode, liquid media meter, PTFE liner
