UV Resistant Polycarbonate Greenhouse 3 M - 8 M Height 3 Years Warranty

UV Resistant Polycarbonate Greenhouse 3 M - 8 M Height 3 Years Warranty

  • UV Resistant Polycarbonate Greenhouse 3 M - 8 M Height 3 Years Warranty
UV Resistant Polycarbonate Greenhouse 3 M - 8 M Height 3 Years Warranty
Product Details:
Place of Origin: China
Brand Name: Lekin
Certification: CE
Model Number: 30KW-4
Payment & Shipping Terms:
Minimum Order Quantity: 20 KW
Packaging Details: pallet
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 1GW
Contact Now
Detailed Product Description
Description: PC Commercial Greenhouses Height Range: 3 M To 8 M
Colors: White Cover Material: PC Sheet
Span: 8-12 M Bay: 4 M
Application: Agricural Greenhouse Warranty: 3 Years
Highlight:

ground mounting system

,

pv solar power system

UV Resistant Polycarbonate Greenhouse for Planting Vegetables and Solar PV power system

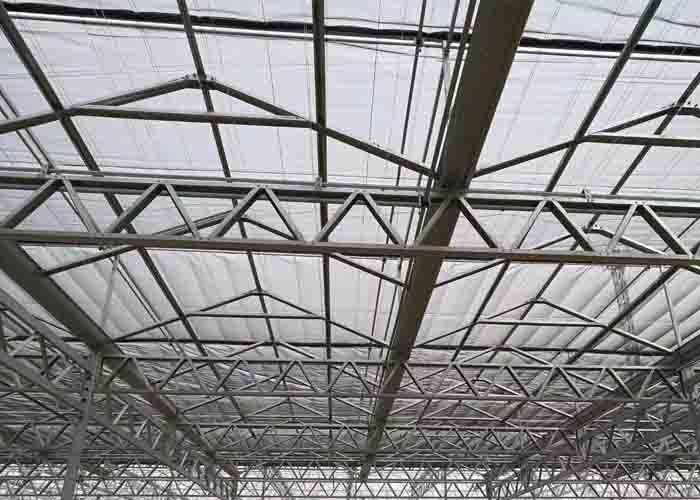

Greenhouse steel structure material is high quality carbon steel which is accordance with national standard. Steel parts and fasteners are processed according to"GB/T1912-2002 Technical Requirements and Test Methods of Hot-galvanized Layer for Metal Coating Steel Production". Inside and outside hot galvanized steel should meet the national standard (GB/T3091-93) requirements of quality products.
The cooling system is composed of fan and cooling pad, which can maintain the temperature in the greenhouse at 26-30ºC in summer.
Heating system has two types, one type is using the boiler to provide heat, and another uses of electric. Boiler fuel can choose coal, oil, gas and bio fuels. Boilers need laying of pipelines and water warming blower to heat. If use electricity, you need electric warm air blower to heat.
Greenhouse natural ventilation can be opening staggered windows on the roof. Forced ventilation is achieved through installing blowers. In general, we install the cooling system of fans and cooling pad.



Technical Parameters



Agriculture Polycarbonate Sheet Green house for Vegetables/Garden

Span

6.4m~16m(Popular 9.6m,10.8m)

Eaves height(From sink to ground)

3.0m~8.0m

Covering

Polycarbonate sheet(8mm/10mm)

Wind load

0.50KN/m2

Snow load

0.30KN/m2

Dead load

20KG/m2

Maximum rainfall

140mm/h

Hanging load

20.5kg/m2

Specification and dimension

Structure

The south and north sides of Greenhouse are gables, the east and west sides are side walls.

Span

9.6m/10.8m(customization)

L*W

Customization

Column space

4.0m

Around the dado height

0.5m

Eaves height

4.0m

Ridge height

5.0m

Outside shading height

5.5m



3. Greenhouse system show
Customers can choose these greenhouse system according to your needs!

4. Configuration List

Cooling System Cooling pad and cooling fan
Shading System Outside/inside shading system: it is better to reduce sunlight and temperature.
Ventilation System Roof vents and side vents
Hydroponic system For leaf vegetables and tomato/cucumber/ strawberry
Heating system Boiler and heating fan
Irrigation system Drip irrigation/sprinkle irrigation/mist spray
Control system Control cabinet
Other system CO2 system/Light system/Seedbed

4.Equipment Package and Delivery
Most parts of the product are nude packing, like steel pipes. Others are packaged by wooden box.
