|Place of Origin:||China|
|Minimum Order Quantity:||20|
|Delivery Time:||3 weeks|
|Payment Terms:||L/C, T/T, D/P|
|Supply Ability:||1000 pieces per month|
|Product Name:||Single Bag Filter Vessels LD03||Model:||LD03|
|Operation Pressure:||150 Psi , 1.0 Mpa||Seal Gasket:||Buna , Silicon , Viton , EPDM|
|Port Connect:||Threaded BSP , NPT, Flange, Grooved Coupling||Wall Thickness:||2mm|
|Surface Finish:||Sand Blast Or Electro Polishing||Top Closure:||Swing Bolt|
|Material Of Construction:||SS304 / 316L||Suitable Cartridge:||Any Standard 10" 20" 30" 40" Filter Cartrdige|
industrial filter cartridges,
stainless steel filter cartridges

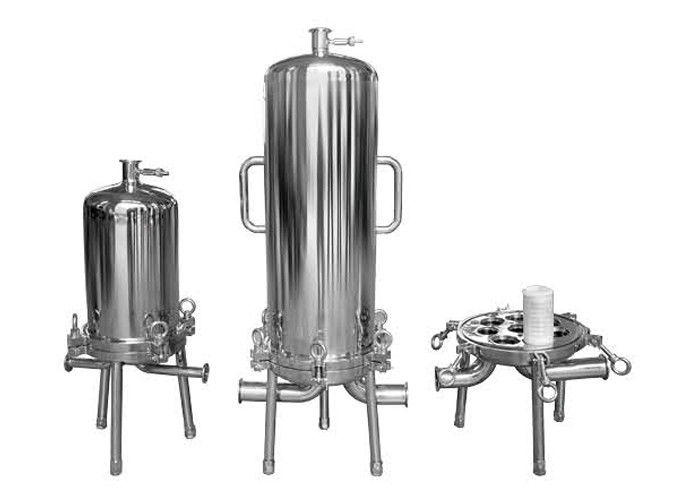

Sanitary mutl cartridges filter vessels for veterinary pharmacy End type 222 / 226 O-ring / Fin / DOE
|Max Operation pressure||1.0Mpa / 150psi / 10.53bar|
|Max operation temperature||110 ℃|
|Pressure tolerance on welding seam||0.85|
|Housing materials||SS304, 316L , carbon steel|
|Gasket seal materials||Buna , Buna white FDA, Viton, Teflon, EPDM|
|Connection port||thread NPT, BSP , flanged , grooved coupling , tri-clamp|
|Top closure||Swing bolt|
|Suitable filter cartridge type||DOE, 222-Oring 222-Fin, 226 O-ring, 226 Fin|
Hygienic filter housing is manufactured from 316 stainless steel of the highest quality. These are suitable for a variety of liquid filtration applications designed to fit standard 222 O' Rings & 226 O' Ring cartridges. They have an integral bayonet locator providing an efficient seal between housing and cartridge. Depending on their type hygienic filter housing is available in 1, 3, 5 and 7 round configurations and in 10", 20", 30" and 40" length cartridge. Its hygienic design ensures low product hold up & reduces product loss.
Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.
Integral cartridge location
Low product hold-up
Easy to clean
EPDM seals / silicone
Quick release housing clamp
Hygienic clamp pipe fittings
Full range of sizes
Alternative connection types are available such as Table-E, Table-F, ASA 150#, and DIN.
Standard seal materials are EPDM, Silicone or Viton options are available.
A full range of pipe accessories are available such as clamps, seals, ferrules and hose liners.
Hygienic filter housing can be steam sterilized in-situ in accordance with cartridge parameters. All housings are supplied with support legs, enabling free standing or in-line installation.
Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 120 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
