LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters

LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters

    • LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters
    • LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters
  • LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters

    Product Details:

    Place of Origin: China
    Brand Name: Purescience
    Certification: ISO 4064B, GB/T19001
    Model Number: 008-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 pieces
    Packaging Details: unit pack by brown box, pallet
    Delivery Time: 4-5 weeks
    Payment Terms: L/C, D/P, T/T
    Supply Ability: 2,800,000 sets per year
    Contact Now
    Detailed Product Description
    Product Name: LCD Display Ultrasonic Water Meter Liquid: Residential Water/municipal Water Supply
    Power Supply: DC 3.6V Type: Mass Flow Meter
    Communication: Nb-IoT / MBus / RS485 / Lorawan / Wireless Accuracy: + / - 2% @ Cold Water
    Flow Range: 0-10 M/s, R100/160/250/400/500 Standard: ISO4064 , GBT778 , Q/320700JR05-2003
    Display: LCD Display In Chinese And English
    High Light:

    Clamp On Ultrasonic Flow Meters

    ,

    LCD Display Ultrasonic Flow Meters

    ,

    DC 3.6V Mass Flow Meter

    portable clamp on ultrasonic flow meter, portable ultrasonic flow meter, digital ultrasonic water meter brass pipe



    Introduction

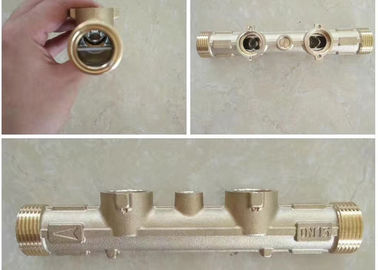

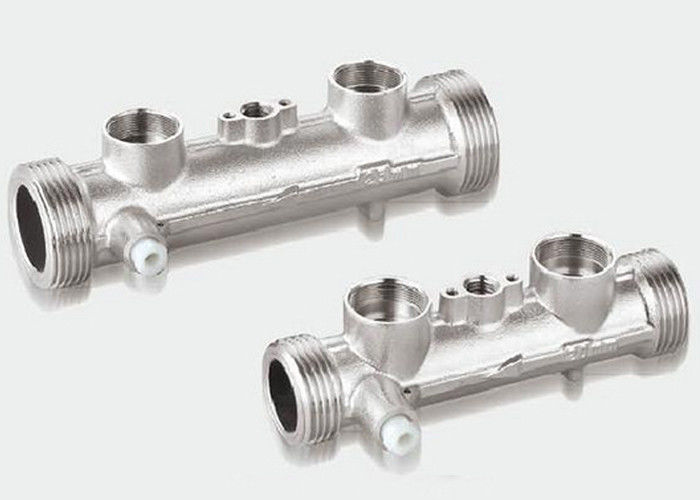

    The Ultrasonic heat water meter with Brass Pipe, which can be with a pair of ultrasonic sensors to detect the fluid flow in the pipe. When the ultrasonic wave and liquid flow direction runs in the same or reverse direction, the speed of the ultrasonic wave in liquid may be accelerated or decelerated accordingly. By this principle ,the ultrasonic flow sensor detects the liquid flow speed in the pipe, and thus obtains the flow data for energy metering.



    Key Features:

    - Unreasonable structure of reflecting column will produce swirl

    - Good structure of reflecting column will avoid swirl

    - Unreasonable pipe structure leads to large velocity gradient

    - Good pipe structure ensures small and even velocity gradient



    Technical Parameter

    Diameter Tube length (mm) Thread (inch) Transducer hole size (mm) Core (mm) remarks
    DN15 110 G3/4B Φ21x9.2mm (17.2x1.5) - customized available
    DN20 130 G1B Φ21x9.2mm 17.2x1.5



    Φ14x46mm

    customized available
    DN25 160 G1-1/4B Φ21x9.2mm 17.2x1.5 Φ17x60mm customized available
    DN32 180 G1-1/2B Φ21x9.2mm 17.2x1.5 Φ22.5x60mm customized available
    DN40 200 G2B Φ21x9.2mm 17.2x1.5 Φ28.5x60mm customized available



    Process equipment

    -numerical machining bed

    LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters 0

    -CNC center

    LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters 1

    -Various numerical machining and drilling equipments

    LCD Display DC 3.6V Clamp On Ultrasonic Flow Meters 2



    Question and Answers:

    -Q: What is the most accurate flow meter, and what is the most popular used water meter?

    -A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
