IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height

IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height

  • IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height
  • IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height
IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ISO 4064B, GB/T19001
Model Number: 004
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: USD30 - USD300
Packaging Details: unit pack by brown box, pallet
Delivery Time: 4-5 weeks
Payment Terms: L/C, D/P, T/T
Supply Ability: 2,800,000 sets per year
Contact Now
Detailed Product Description
Description: Ultrasonic Water Meter Application: Residential Water Meter
Size: 1/2" - 2" Pressure: PN16
Communication: Nb-IoT / MBus / RS485 Accuracy: + / - 2% @ Cold Water
Protection: IP68 Standard: ISO4064 , GBT778 , Q/320700JR05-2003
Function: Totalizer , Flow Rate
High Light:

magnetic flowmeter

,

water flow meter

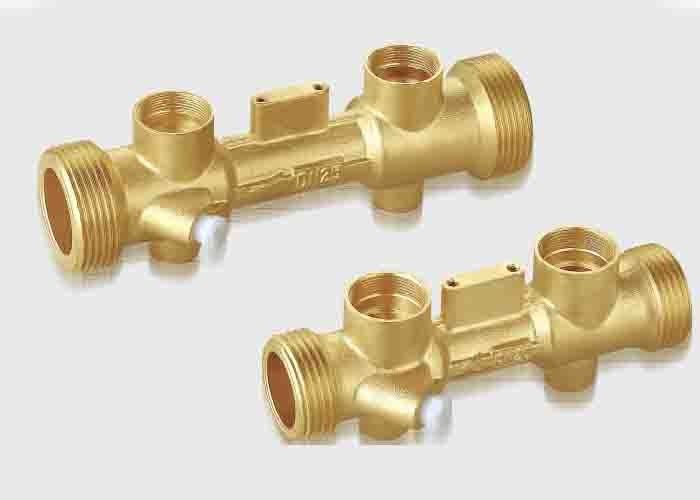

Ultrasonic residential water meter's brass sensor body, static heat meter

General Description:

The meter was specially designed for domestic water metering applications where conventional water meters fail due to harsh environment, solids in water, high maintenance, magnetic vandalization or incapability of leak detection.



Technical advantage

  • Available as heat, cooling or combined heat/cooling meters
  • Lowest design height
  • With optional wireless M-bus
  • With optional M-bus
  • With optional 3 pulse inputs or outputs
  • Any installation position (even overhead)
  • Stores all months’ readings during the operating time
  • With optional 11-year battery service life
  • Precise, long-term stable, wear-free
  • Very wide dynamic range



Technical Parameter

Diameter Tube length (mm) Thread (inch) Transducer hole size (mm) Core (mm) remarks
DN15 110 G3/4B Φ21x9.2mm (17.2x1.5) - customized available
DN20 130 G1B Φ21x9.2mm 17.2x1.5



Φ14x46mm

customized available
DN25 160 G1-1/4B Φ21x9.2mm 17.2x1.5 Φ17x60mm customized available
DN32 180 G1-1/2B Φ21x9.2mm 17.2x1.5 Φ22.5x60mm customized available
DN40 200 G2B Φ21x9.2mm 17.2x1.5 Φ28.5x60mm customized available

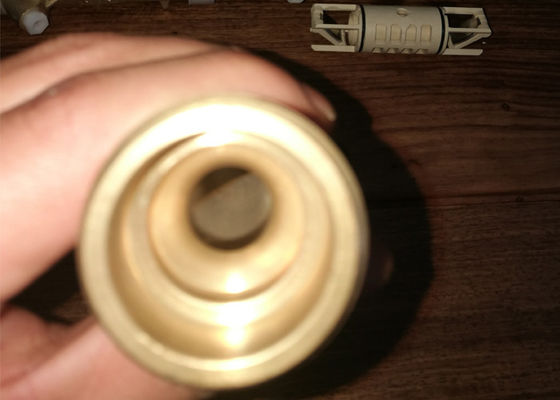

Process equipment

IP68 PN16 Static Heat Meter Brass Sensor Body Lowest Design Height 0
