IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter

IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter

  • IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter
  • IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter
IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ISO 4064B, GB/T19001
Model Number: UWM100
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Packaging Details: unit pack by brown box, pallet
Delivery Time: 4-5 weeks
Payment Terms: L/C, D/P, T/T
Supply Ability: 2,800,000 sets per year
Contact Now
Detailed Product Description
Product Name: Digital Ultrasonic Flow Meter Housing Medium: Cold Water/hot Water
Size: DN50-1000 Type: Transit Time Single Channel, Dual Channel, Four Channel
Communication: Wireless Nb-IoT / MBus / RS485 / Lorawan / Pulse Emitter Accuracy: + / - 2% @ Cold Water
Protection: IP68 Standard: ISO4064 , GBT778 , Q/320700JR05-2003
High Light:

Irrigation Ultrasonic Mass Flow Meter

,

PN16 Ultrasonic Mass Flow Meter

,

DN1000 Ultrasonic Flow Meters

Irrigation ultrasonic mass flow meter, liquid ultrasonic flow meter,ultrasonic water meter house Iron DN50-1000 PN16



Our advantage:

1) Up and down hydraulic molded, ensures the sensor body no oil mark, not crackable under pressure.
2) The sensor body surfacae will be under dual steel ball polishing, remove oxidized by first polish, and finely secondary polish.
3) High temperature annealing, it can reduce the hardness of material for easily processing, remove stress to stablize the shape, clear the defect, improve the material performance.

4) Imported CNC and numerical machine beds ensures the processing precision.



Features:
-The reasonable reflecting structure design ensures no swirl.
-Finely internal treatment, no pressure loss, evenly velocity gradient

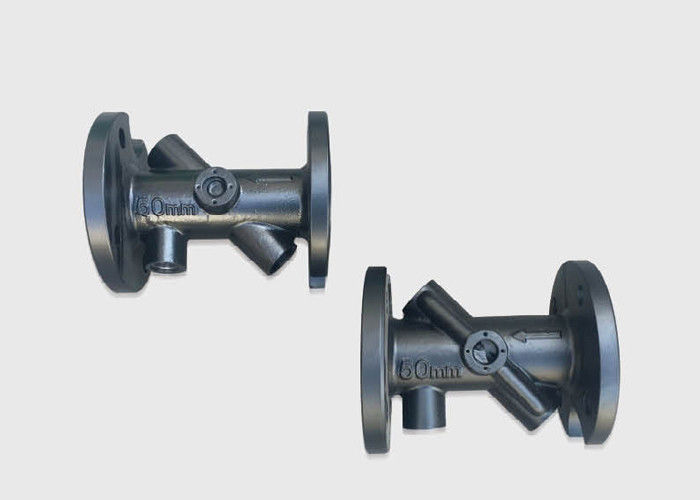

General description
The transit time or dopper ultrasonic water meter, are widely used in municpal water supply, commercial, industrial, irrigation. Large diameter ultrasonic water meter housing for ultrasonic hot water meter and cold water meter DN50-1000 mm. It's for transit time type ultrasonic water meter, single channel, dual channel or four channel.

IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter 0

Technical data (LGS)

Dia (mm) L (mm) Flange Diversion inner hole Remarks
DN50 200 D165 50 Large diameter, single channel, dual channel, quadru channel ultrasonic water meter housing
DN65 195 D185 65
DN80 225 D200 76
DN100 250 D220 100
DN125 275 D250 125
DN150 300 D285 150
DN200 350 D340 200
DN250 450 D405 250
DN300 500 D460 300


Factory tour
-Large diameter

IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter 1
-Warehouse

IP68 DN1000 PN16 Irrigation Ultrasonic Mass Flow Meter 2
