All Flow Technology
|Place of Origin:||China|
|Minimum Order Quantity:||5|
|Payment Terms:||T/T, L/C, D/P|
|Supply Ability:||5000 pieces per month|
|Product Name:||Pneumatic Diaphragm Pump RD06PP||Pressure:||100psi / 6.89bar / 0. 7Mpa|
|Max Flow Rate:||4.5gpm / 17L/min||Max Suction Head:||3m|
|Max Grain:||0.5mm||Air Inlet/outlet Port Size:||1/4" FNPT , BSP|
|Fluid Inlet/outlet Port Size:||1/4" FNPT , BSP||Material Of Construction:||Polypropylene ( PP )|
air driven diaphragm pump,
air operated double diaphragm pump

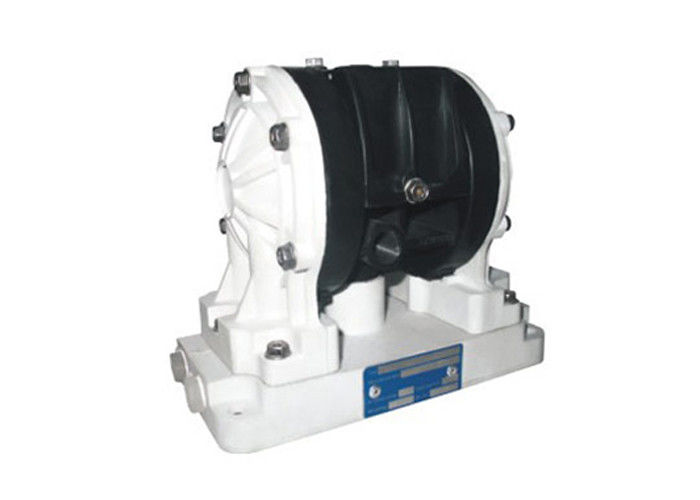

Polypropylene PP Air operated diaphragm pump for chemical transfer 4.5gpm 17L/min
|Max.working Pressure||100psi(0.7Mpa ,7bar)|
|Max.reciprocating Speed||Dry running 320cpm Wet running 250cpm|
|Max.suction Height (d Ry Sucking)||3m|
|Max air Consumption||9.0scfm(0.252m³/min)|
|Air Inlet Size||1/4 in.npt(f) 1/4 in.bsp(f)|
|Air Outlet Size||1/4 in.npt(f) 1/4 in.bsp(f)|
|Fluid Inlet Size||1/4 in.npt(f) 1/4 in.bsp(f)|
|Fluid Outlet Size||1/4 in.npt(f) 1/4 in.bsp(f)|
A single piece polypropylene center section for increased reliability and chemical compatibility, plus high-reliability modular air valve. The overmolded frame for improved reliability and will help to eliminate fluid leakage and new generation of diaphragm design that increases flow with flow rates up to 265 gpm (1004 lpm) - making it one of the most efficient pumps on the market.
Waste water treatment, sludge, screening
Effluent treatment plant
Pharmaceutical feeds, transfer
Automotive wash, lube, oil
Ceramics mix & cast, glaze
Chemical injection, process
Pulp & paper batching, bleaching
Construction coating, dewatering
Food processing transfer, packaging
Marine bilge, cleaning
Mining utility, dewatering
Oil & gas transfer, clean up
The air-driven double diaphragm transfer pumps. No electrical components are required because the pumps are
air-driven. RD series pumps are run-dry safe and self-priming. The pump capacity can be controlled by changing
the pressure in the air supply. The air control is designed for oilfree operation. The RD series pumps are ideally
suited for the transport of liquid chemicals. It transports media at up 6,700 l/h and up to a discharge lift of 70 m.

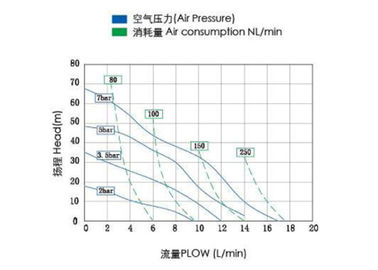

As the pump capacity is highly dependent on the back pressure, the performance curve must always be observed.
At the sametime, the differential pressure between the hydraulic and pneumatic sides should not exceed 2 bar.
Higher values reduce the service life of the pump. When selecting pumps, check the material compatibility.
In addition, consider the density, viscosity and temperature of the transported medium.
