All Flow Technology
|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||2-3 weeks|
|Payment Terms:||L/C, T/T, D/P|
|Product Name:||Three Lobe Roots Air Blower||Model:||LBSR350|
|Port Size:||350mm||Silencer:||Horizontal , Vertical|
|Connect:||Coupling , Pulley Belt||RPM:||730rpm To 1050rpm|
|Boosting Pressure:||19.6kpa To 78.4kpa ( 0.2bar To 0.8 Bar )||Power:||90kw To 355kw|
high pressure roots blower,
roots air blower

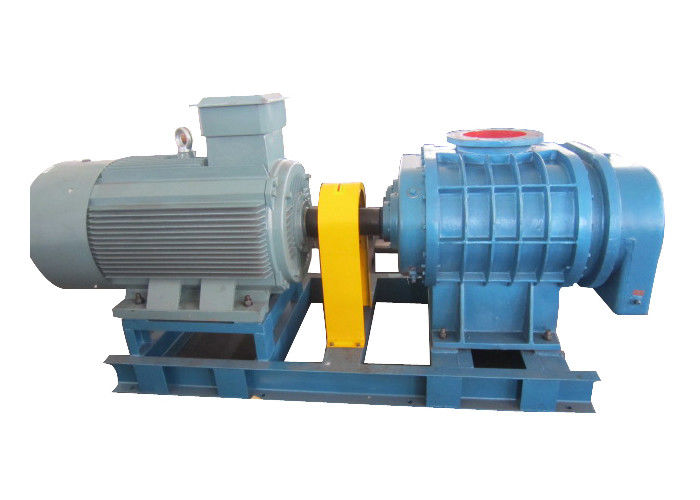

160KW Tri-lobe Roots Blower for pneumatic convey or activated sludge treatment Port size 350mm
Our three lobe roots blowers are heavy duty blowers designed with detachable rugged steel mounting feet that permit easy in-field adaptability to either vertical or horizontal installation requirements. Because of the detachable mounting feet, these units can be easily adapted to any of four drive shaft positions - right hand, left hand, bottom or top. The compact, sturdy design is engineered for continuous service when operated in accordance with speed and pressure ratings.
The basic model consists of a cast iron casing and cast iron involute impellers. Carburized and ground alloy steel spur timing gears are secured to the steel shafts with a taper mounting and locknut. Oversized antifriction bearings are used, with a cylindrical roller bearing at the drive shaft to withstand V-belt pull. The Universal Roots air blower features thrust control, with splash oil lube on the gear end and grease lube on the drive end. After standard tests, the unit is sprayed with a protective paint and boxed or placed on skids. Available accessories include driver, relief valve, inlet and discharge silencers, inlet filter, check valve, extended base, v-belt or flexible coupling and drive guards.
Typical application field
All our tri-lobe roots blower are built and checked annually following the strictest adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.
