|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||2-3 weeks|
|Payment Terms:||L/C, T/T, D/P|
|Model:||LBSR80||Product Name:||Three Lobe Roots Blower|
|Port Size:||80mm||Silencer:||Horizontal , Vertical|
|Connect:||Coupling , Pulley Belt||Application:||Pressure Roots Air Blower|
|Pressure Boosting:||19.6kpa To 98.0kpa||Power:||2.2kw To 11 Kw|
three lobe roots blower,
roots air blower

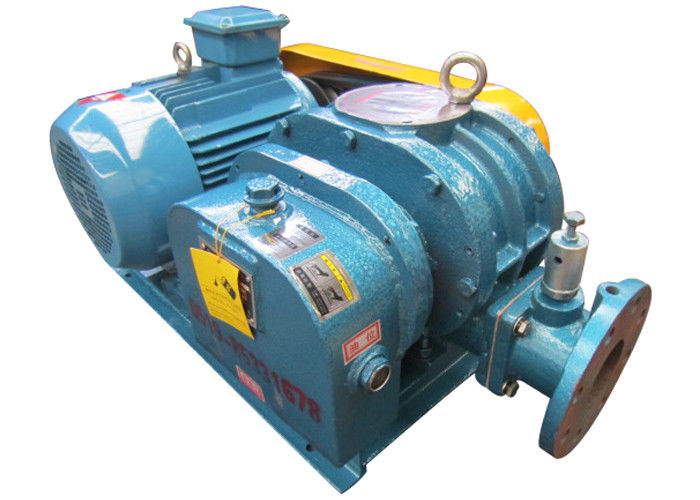

11kw High Pressure 3 lobe Roots blower for sewage treatment 98.0kpa Port size 65mm
The LBSR80 is a standard three-lobe roots blower , its structure is very compact and have higher running reliability and long life, the inlet sizes are from 1.5" to 14". The tri-lobe roots blower can run under the pressure of 80Kpa without cooling water, and the biggest capacity can be 260 m3/min. Our company has also developed LBSRH water-cooling series blower for the pressure between 80Kpa and 100Kpa. So the biggest pressure of two-stage can be 200Kpa. LBSREH-series are also developed for the biggest pressure can be -500mmHg.
All our tri-lobe roots blower are built and checked annually following the strictest adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.
